Product Specifications:
| Model number | PT-YQ50 |
| Work surface size [mm] | 175×175 |
| Travel distance [mm] | 50 |
| Self-weight | <10kg |
| Motor type | Voice coil motor |
| Raster resolution | sinlcos 4.88nm（Choose other higher resolutions） |
| Motor thrust | Rated 56N, Peak 300N |
| Minimum step [nm] | 10nm（Pair with nanopwm or linear driver） |
| Repeatability positioning accuracy [μm] | ±200m |
| Positioning accuracy [μm] | ±500m |
| Flatness [μm] | 5 |
| Straightness [μm] | 2 |
| Maximum speed [mm/s] | 100mm/s |
| Maximum load [Kg] | 12Kg（Using pneumatic constant force springs for balance） |

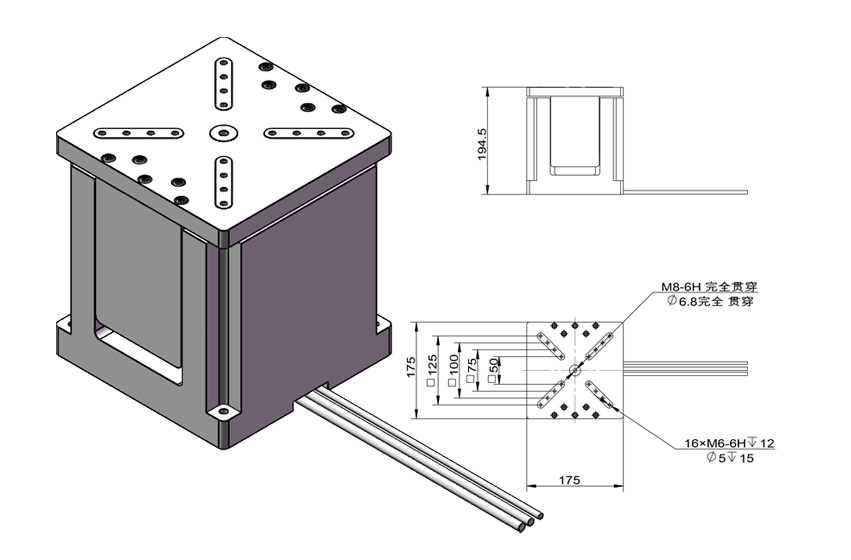

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
