Specification:

Product Specifications:

Model number	PT-GD08	PT-GD10
Table surface	40x40mm	65x 65mm
Itinerary	8mm	10mm
Material	Aluminum alloy	Aluminum alloy
Guide rail	Cross roller guide rail	Cross roller guide rail
Positioning accuracy	≤10μm	≤10μm
Repeatability positioning accuracy	≤±2μm	≤±2μm
Bending	30”	30”
Pitch	30”	30”
Parallelism	4μm	4μm
Horizontal load	5kg	5kg
Ball screw	Diameter 6, Pitch 1
Matching motor	28-step motor

Product details:

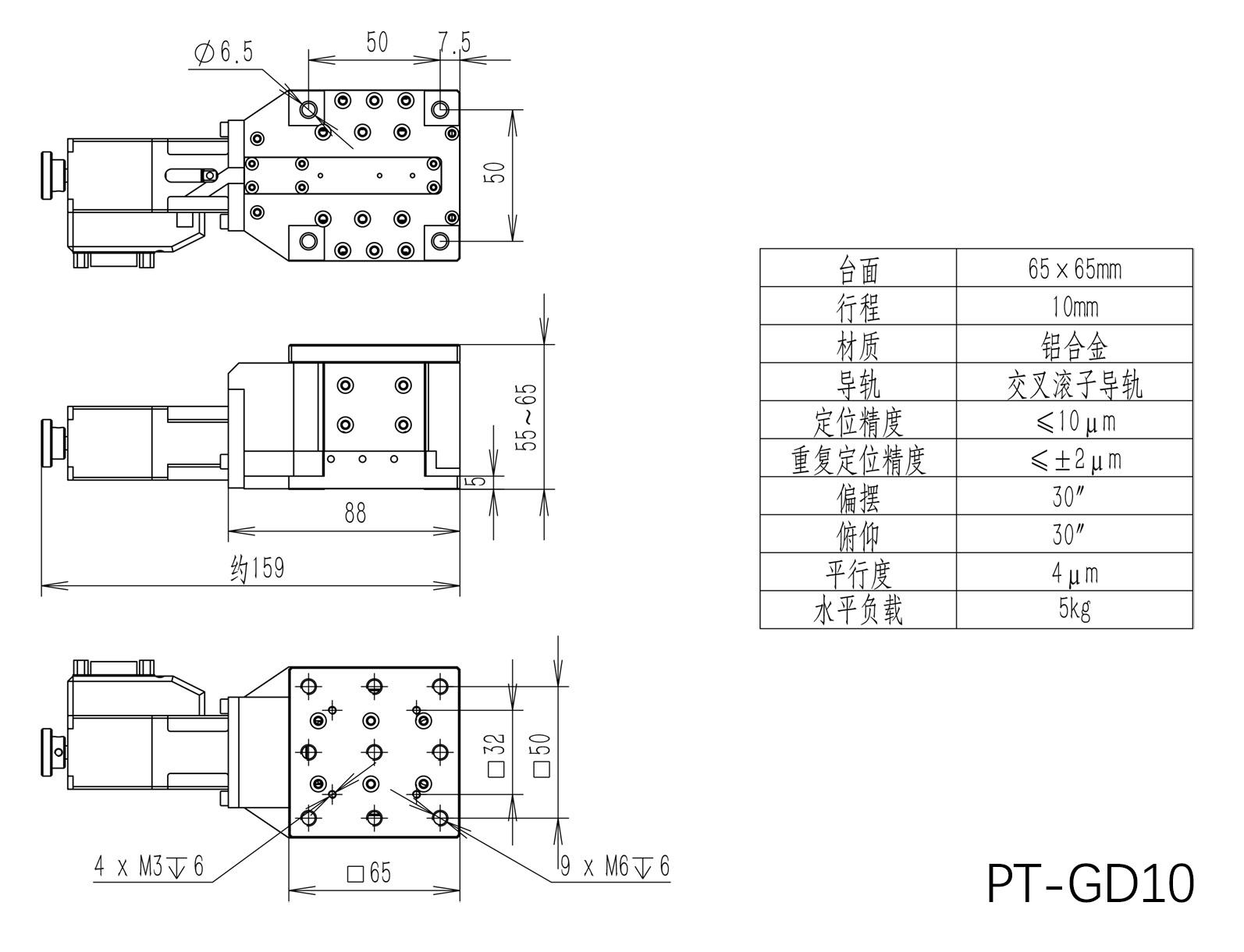

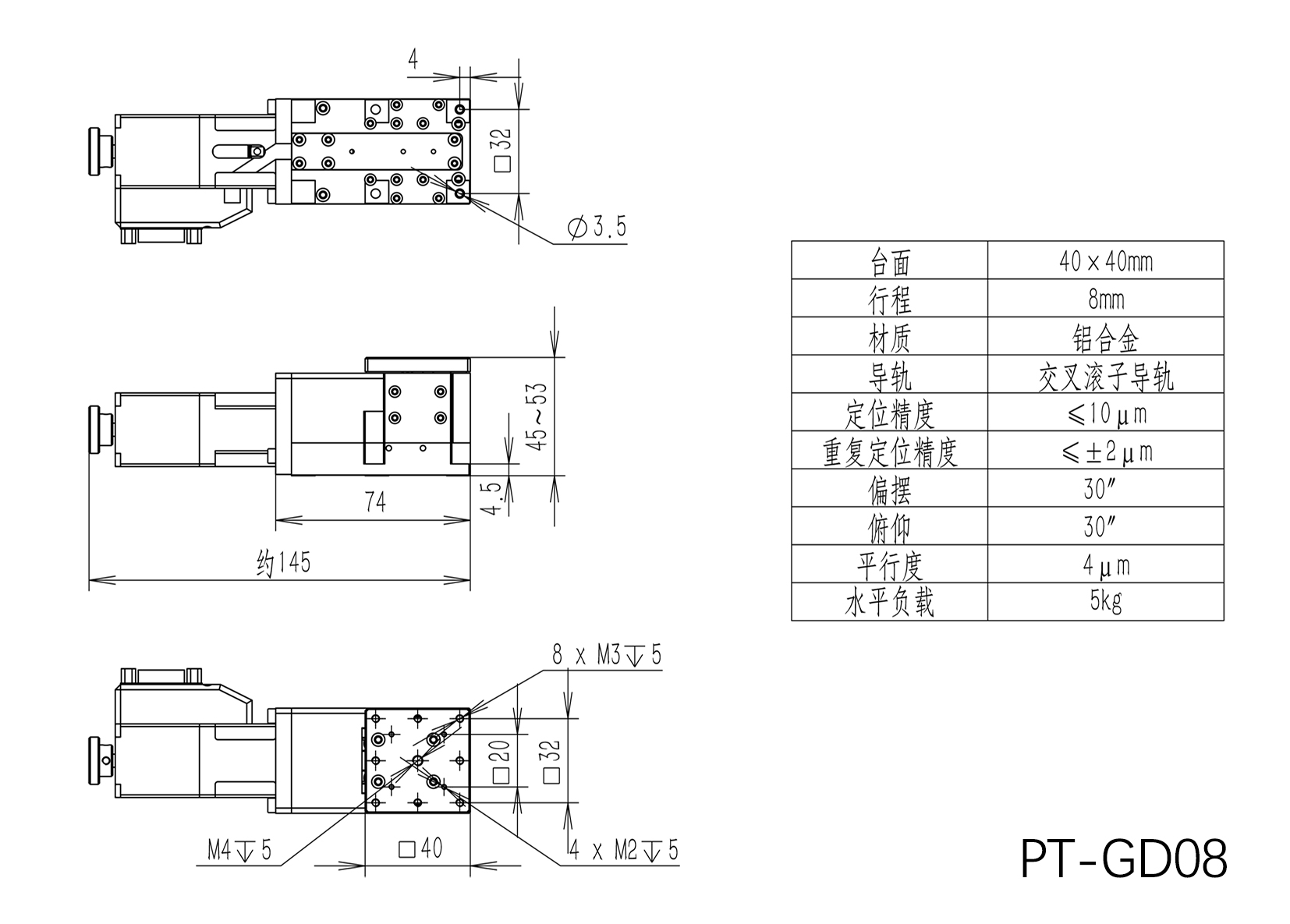

Product size:

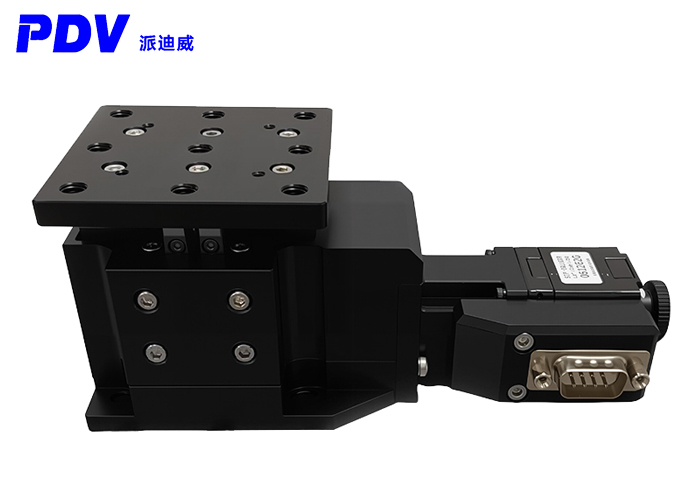

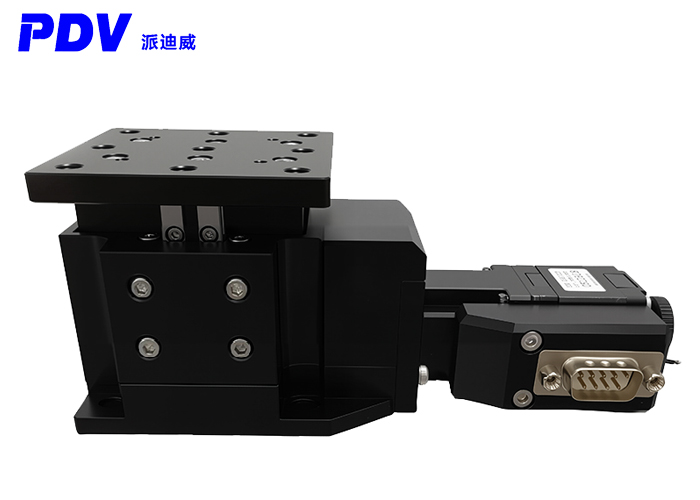

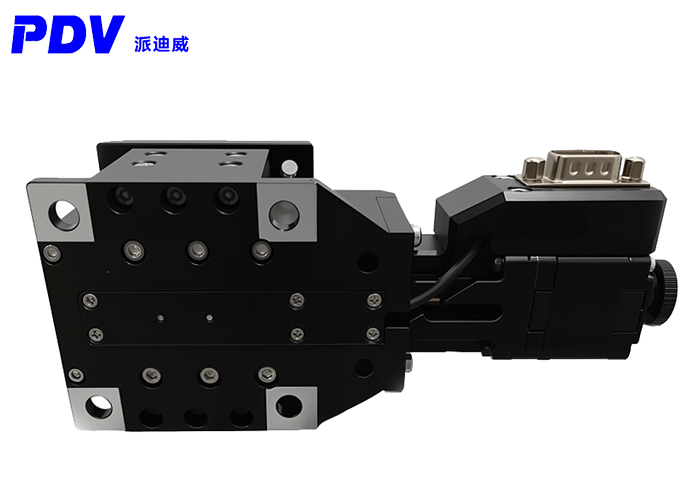

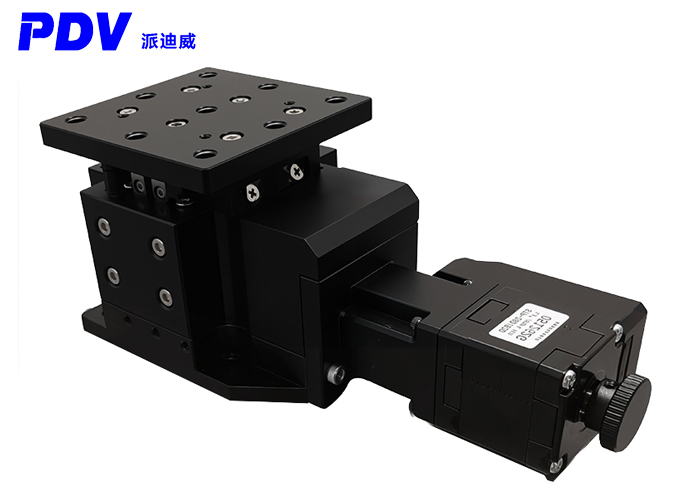

Precise electric wedge-shaped Z-axis lifting platform. Platform size: 40×40, 65×65. Models: PT-GD08, GD10.

Service:

Precise electric wedge-type lifting platform Z-axis lifting dimensions: 40×40, 65×65

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
