Product Features:

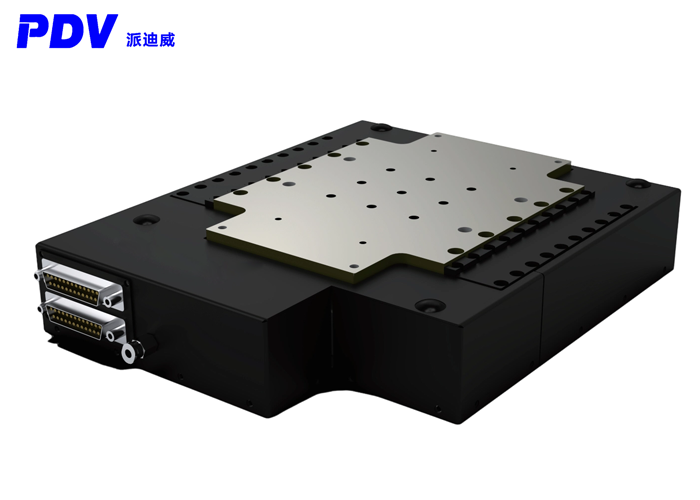

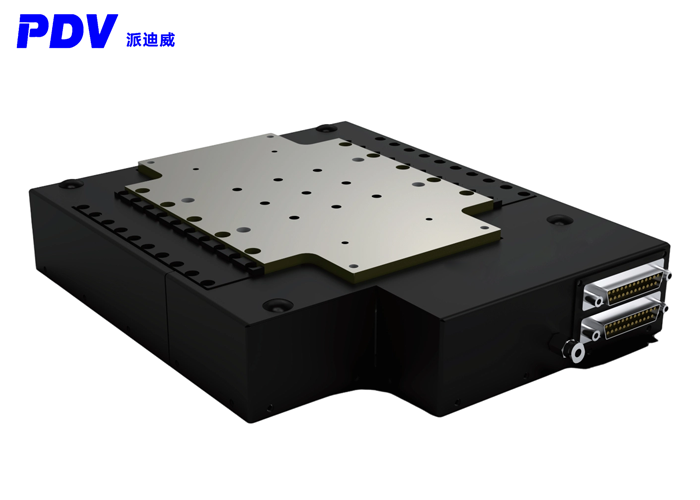

·High-precision direct-drive lifting platform
·High dynamic performance (open-loop cutoff frequency greater than 120Hz)
·Low lateral height, suitable for applications with limited space
·It can be equipped with pneumatic balancing, with a maximum load capacity of 15 kilograms.
·It can be composed of straight-axis components to form a multi-axis system.
· Resolution: 1 nm, Repetitive positioning accuracy: ±100 nm, Positioning accuracy: ±200 nm
· Position stability: 5 nm (with linear drive (needs to be purchased separately), and with vibration-isolated laboratory environment)
Product Specifications:
| Model | ZZ-05 | ZZ-10 |
| Travel | 5mm | 10mm |
| Accuracy | ±200nm | ±300nm |
| Bi-Repeatability | ±100nm | ±150nm |
| Pitch | 15 arc sec | 20 arc sec |
| Yaw | 15 arc sec | 20 arc sec |
| Straightness（1） | ±1.5μm | ±2μm |
| Stage Mass | 4.5kg | 5.5kg |
| Load Capacity（2） | 8kg | 8kg |
| Resolution（3） | 1 nm | |
| In Position Stability （3） | 5 nm | |
| Minimum Incremental step（3） | 5 nm | |
| Maximum Speed（4） | 5mm/s | |
| Maximum Acceleration（4） | 0.7g | |
| Continuous Force | 23 N | |
| Peak Force | 170 N | |
| Material | Aluminum | |
| MTBF | 27,000 Hours | |

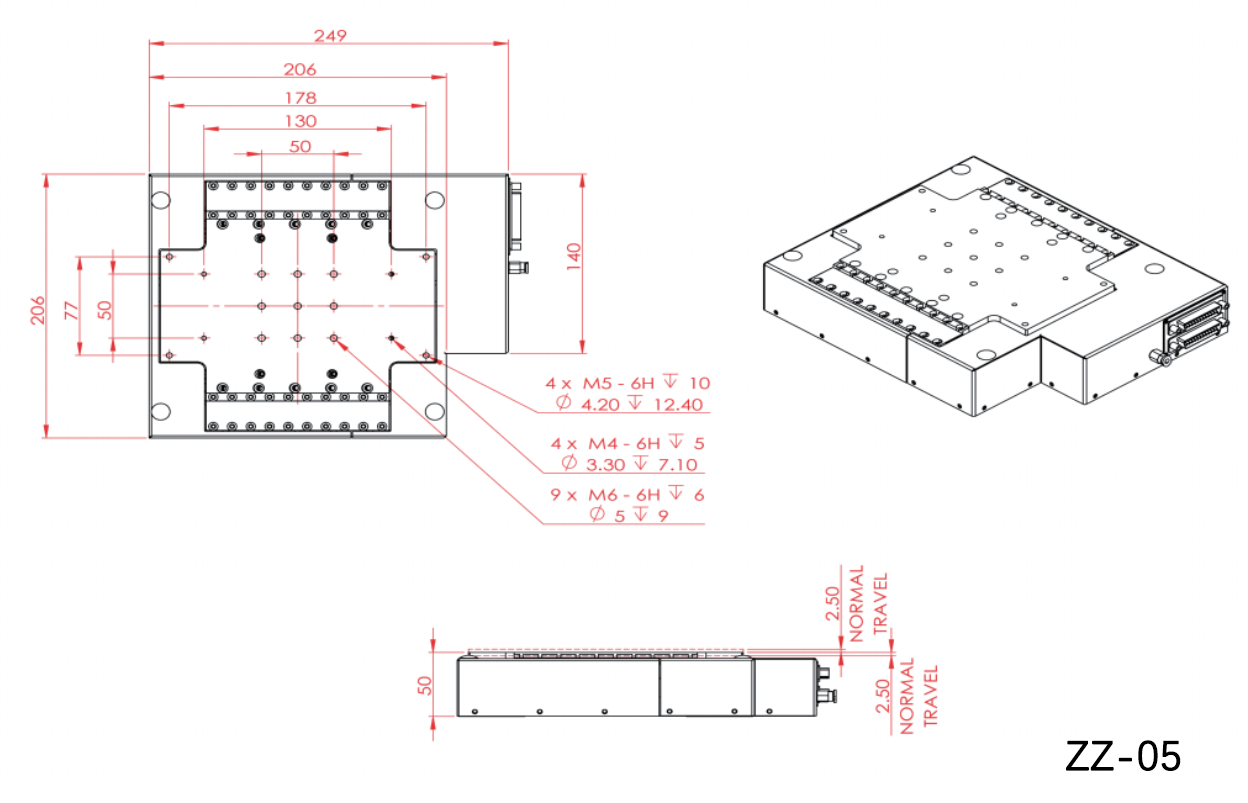

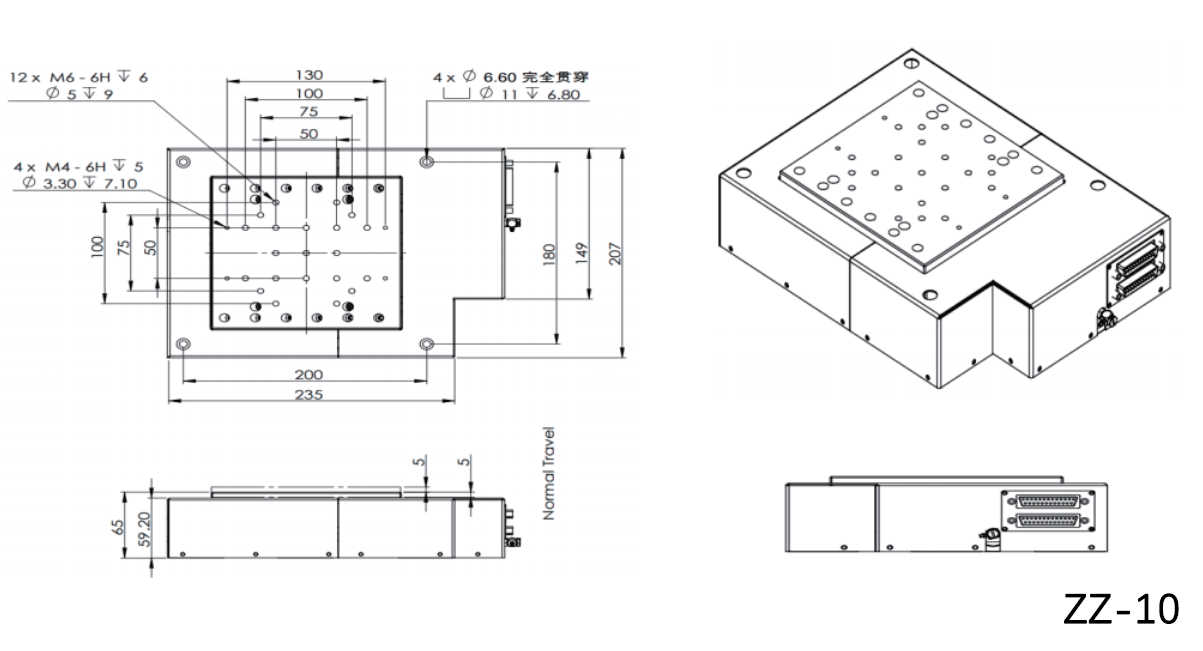

Product size:
