Product Specifications:
| Model | PT-GD419 | |
| Mechanical parameters | Axial movement | Z-axis |
| Itinerary | 60mm | |
| Table surface size | 180 mm* 180mm | |
| Foundation height | 148 mm | |
| Type of transmission mechanism | Ball screw | |
| Parameters of transmission mechanism | Diameter: 14mm, Pitch: 2mm. | |
| Guiding components | Cross roller guide rail | |
| Main material | Aluminum alloy, oxidized black color | |
| Self-weight | 15Kg | |
| Precision parameters | Load | 50Kg |
| Resolution | 10μm | |
| One-way positioning accuracy | 20μm | |
| Repeatability positioning accuracy | ±3μm | |
| Idle travel | 2μm | |
| Static parallelism | 40μm | |
| Motion straightness | 4μm | |
| Electrical parameters | Motor type | Two stepper motors (Rexac motors) |
| Current | 5A | |
| Maximum speed | 10mm/s | |
| Limiting sensor | CW+CCW Two outputs | |
| Origin sensor | ORG1 output | |
| Sensor output form | NPN normally-closed output, light-blocking causes disconnection | |
| IO interface type | Output signal | |

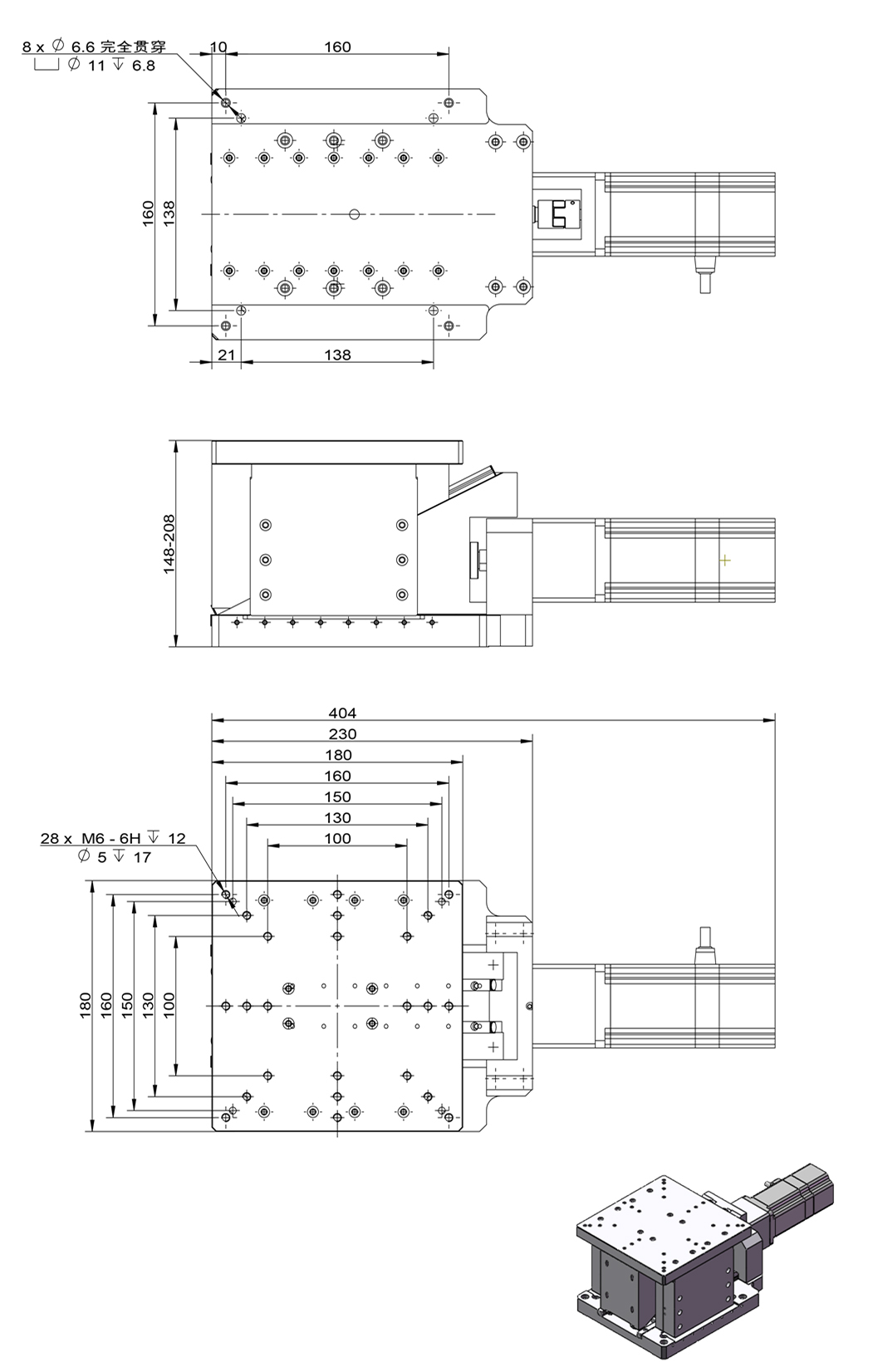

Product size:
