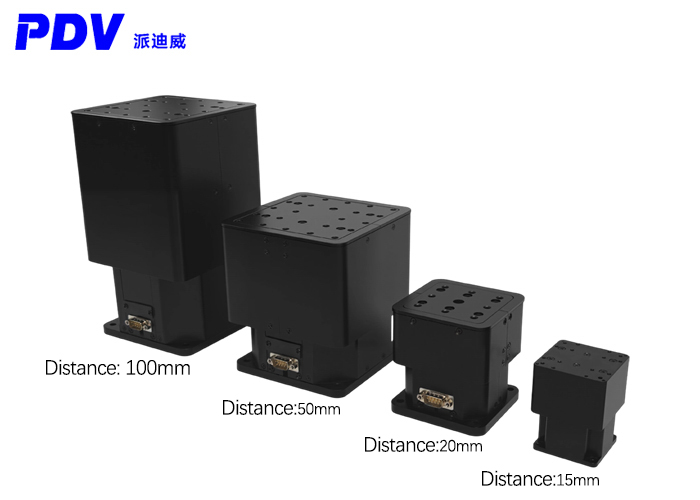

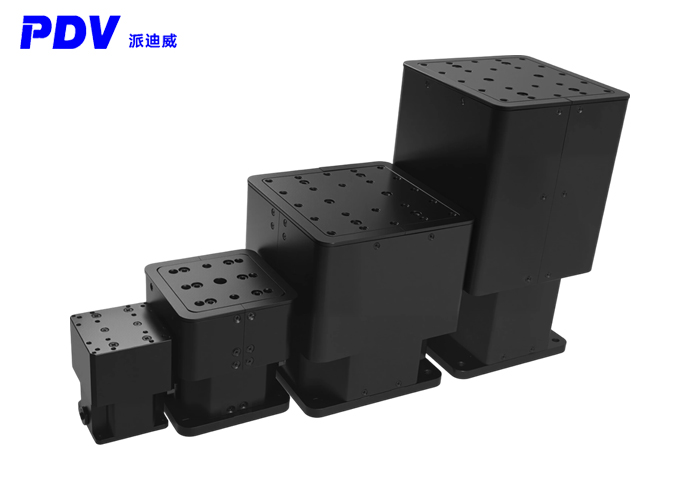

Product Specifications:
| Model number | PT-N15 | Model number | PT-N20 |
| Distance (mm) | 15 | Itinerary | 20mm |
| Table surface size | 56×56mm | Table surface size | 86×86mm |
| Pitch of screw (mm) | 0.635 | Screw | Direct drive motor lead screw |
| Main material | Aluminum alloy | Pitch | 0.794mm |
| Surface treatment | Hard anodizing | Guide rail type | Cross roller guide rail |
| Guide rail | Imported guide rail | Main material | Aluminum alloy |
| Speed (mm/s) | 2 | Surface treatment | Black oxidation |
| Resolution (8 subdivisions) | 0.188 | Self-respect | 1.5kg |
| Repeatability positioning accuracy (μm) | 2 | Resolution | 7.938μm (No subcategories) 0.397μm (20subcategories) |
| Drive motor | 20Linear stepping motor | Speed | ≤5mm/sec |
| Pitch angle | 1.8° | Precision | 8μm |
| Center load (kg) | 1 | Load-bearing capacity | 10kg |
| Feedback signal | —— | Idle travel | 5μm |
| Positioning accuracy (optional optical encoder) | —— | Parallelism | 50μm |
| Control method | Open loop | Motion parallelism | 15μm |
| Pitch | 25" | ||
| Model number | PT-N50 | Model number | PT-N100 |
| Travel (mm) | 50 | Distance (mm) | 100 |
| Screw pitch (mm) | 0.794 | Load (kg) | 20 |
| Work surface size | 125×125mm | Table size | 185×185mm |
| Itinerary | 50mm | Itinerary | 100mm |
| Repeatability positioning accuracy (μm) | ±1.5 | Resolution(μm) | 0.625 |
| Straightness (μm) | 15 | Minimum step size(μm) | 2 |
| Positioning accuracy (μm) | —— | Unidirectional repetitive positioning accuracy(μm） | ±0.2.or 4 |
| Resolution (um) | 0.992(8Segmentation） | Bidirectional repeated positioning accuracy(μm） | ±4 or 8 |
| Minimum step distance (μm) | 5 | Positioning accuracy / guaranteed value(μm） | ±2or 4 |
| Maximum speed (s) | ≤3mm/s | Maximum speed (mm/s) | 10 |
| Maximum load (kg) | 50 | Straightness (μm) | 15 |
| Control method | 开环 | Flatness (μm) Deviation | 15 |
| Self-weight (Kg) | 3 | Deviation | 60 |
| Rated current (A) | 1.3 | Pitch and roll | 60 |
| weight(kg) | 13 | ||
