Feature:
The lead screw motor eliminates the intermediate steps and has a lower initial height.
Imported motors, with high precision and large capacity;
The screw has a small pitch, high resolution, and the reverse clearance is negligible.
Multiple sets of cross-roller guide rails, with excellent stability;
Product Specifications:
| Model number | PT-N20 | |
| Structural Description | Itinerary | 20mm |
| Table surface size | 86×86mm | |
| Screw | Direct drive motor lead screw | |
| Pitch | 0.794MM | |
| Guide rail type | Cross roller guide rail | |
| Main material | Aluminum alloy | |
| Surface treatment | Black oxidation | |
| Self-respect | 1.5kg | |
| Precision description | Resolution | 7.938μm (No subcategories) 0.397μm (20 subcategories) |
| Speed | ≤5mm/sec | |
| Precision | 8μm | |
| Load-bearing capacity | 10kg | |
| Idle travel | 5μm | |
| Parallelism | 50μm | |
| Motion parallelism | 15μm | |
| Pitch | 25" | |

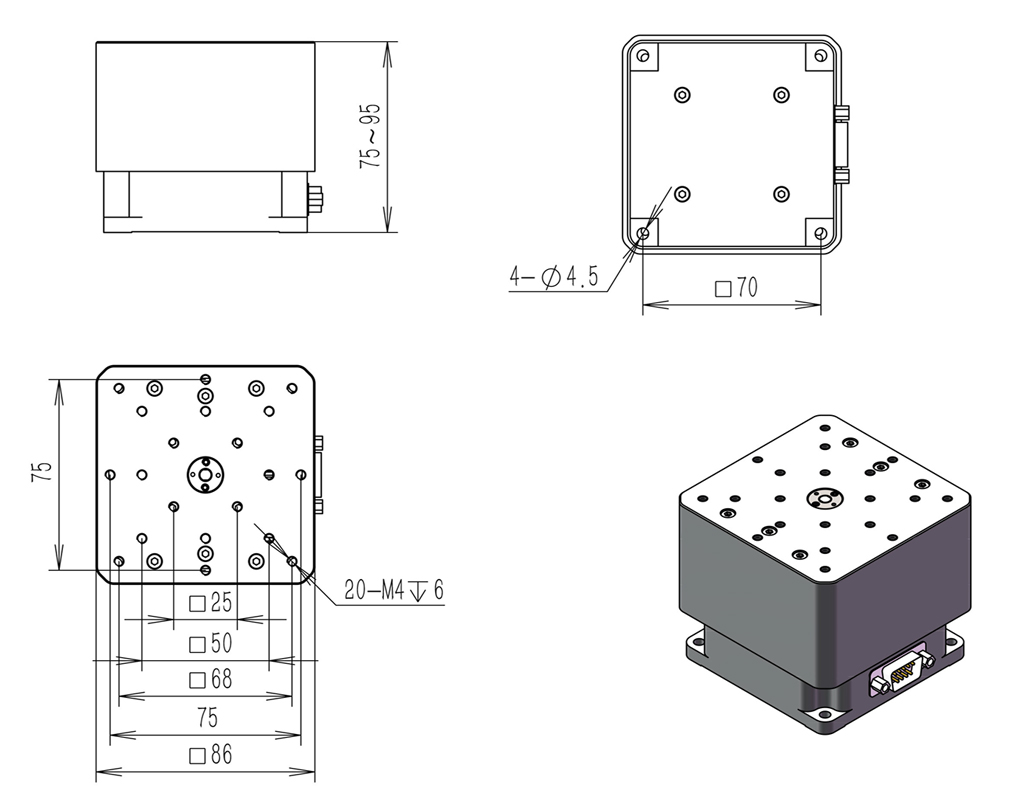

Product size:
