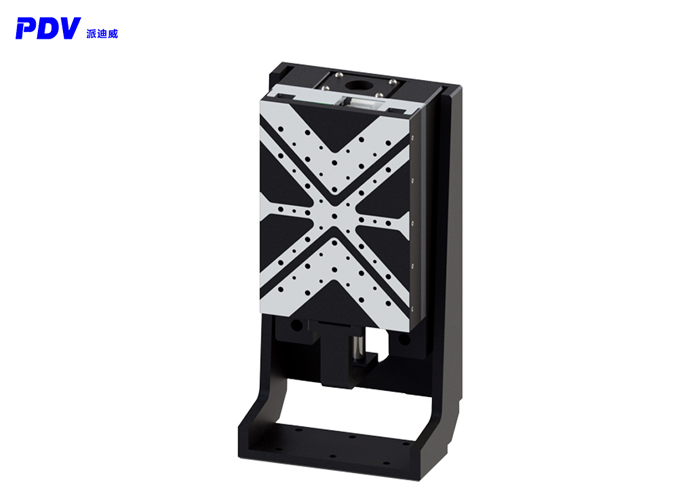

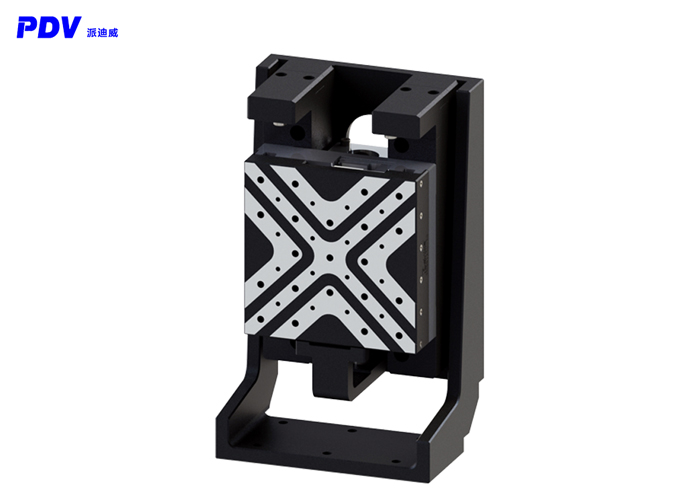

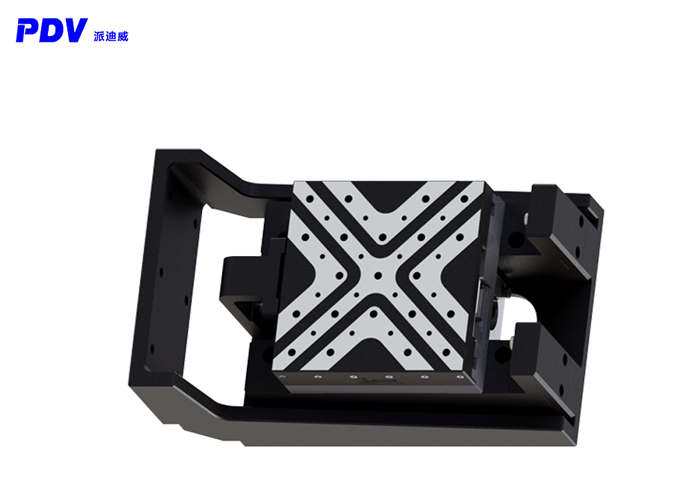

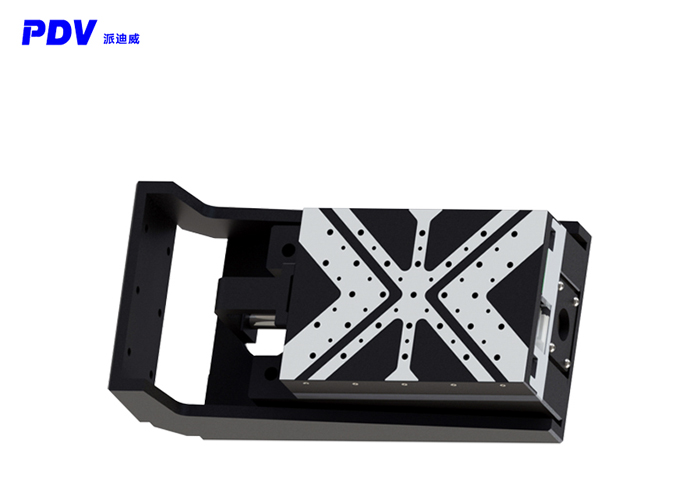

Product Name: High-precision linear motor lifting platform PT-ZXZ 50

Share
Specification:

Product parameters:

ModelPT-ZXZ 50PT-ZXZ 100
Travel(mm)50100
Load Capacity(kg)44
Resolution(um)0.10.1
Min.Incremental Motion(um)0.30.3
Undirection Repeatability[3]/Guaranteed(um)±0.5 or 1±0.5 or 1
Undirection Repeatability/Typical(um)±0.2 or 0.6±0.3 or 0.6
Bi-Directional Repeatability/Guaranteed(um)±1 or 2±1 or 2
Bi-Directional Repeatability/Typical(um)±0.5 or 1±0.5 or 1
Accuracy[3]/Guaranteed(um)±2 or 4±2 or 4
Accuracy/Typical((um)±1 or 2±1 or 2
Max.Speed(mm/s)(mm/s)100100
Straightness(um)1010
Flatness(um)1010
Yaw(arcsec)2020
Pitch(arcsec)2020
Continuous Force(N)17.617.6
Peak Force(N)8888
Weight(kg)6.510.2

※ Note

1.Vertical load at the center when placed horizontally.

2: The minimum motion increment is not equivalent to resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and the encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.

3.The precision measurement data is obtained by using a laser interferometer when the platform is placed horizontally.

4: The distinction between typical values and guaranteed values can be found in the technical guide.

5: The maximum speed is a typical value and may vary depending on the load and controller.


Product Details:

High precision, compact structure, and flexible integration

Linear motor vertical lifting platform, specially designed for laboratory and industrial applications that require high-precision vertical positioning. The lifting platform is driven by a linear motor, featuring high precision, high stability, and low noise. It has a compact structure, is easy to integrate, and offers a variety of stroke and configuration options to meet diverse application requirements.


Main features:

Multiple stroke options are available to meet more application requirements: It offers two stroke choices of 50mm and 100mm, with a compact structure that can be flexibly integrated into various space-constrained application scenarios.

Precise structure, stable and reliable: It adopts an integrated cross-roller guide rail and high-quality linear motor, combined with standardized installation techniques, ensuring outstanding motion accuracy and long-term stable reliability. The Pitch and Yaw accuracy performance are excellent.

High resolution and fine control: The lifting platform is driven by a linear motor, featuring excellent micro-step capability. Combined with the high-performance controller from Feike Technology, it can achieve micron-level fine positioning, meeting the pursuit of ultimate precision.

Two counterweight schemes are available to adapt to different application environments: constant force springs or cylinder counterweights can be optionally equipped to meet the requirements of different loads and speeds, ensuring smooth movement and high consistency.

Ultra-quiet operation, creating a comfortable environment: The ultra-quiet displacement stage is suitable for noise-sensitive laboratory environments and high-performance industrial sites.

Powerful software support and easy operation: Free standard SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.

High-performance controller, achieving complex motion: The controller supports circular interpolation, linear interpolation, position memory and arbitrary graphic import, which can meet various complex motion control requirements. (Optional)


Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission.

Product application:

Precision Z-axis, High-end Equipment, Semiconductor Inspection, Semiconductor Cutting


Product details:

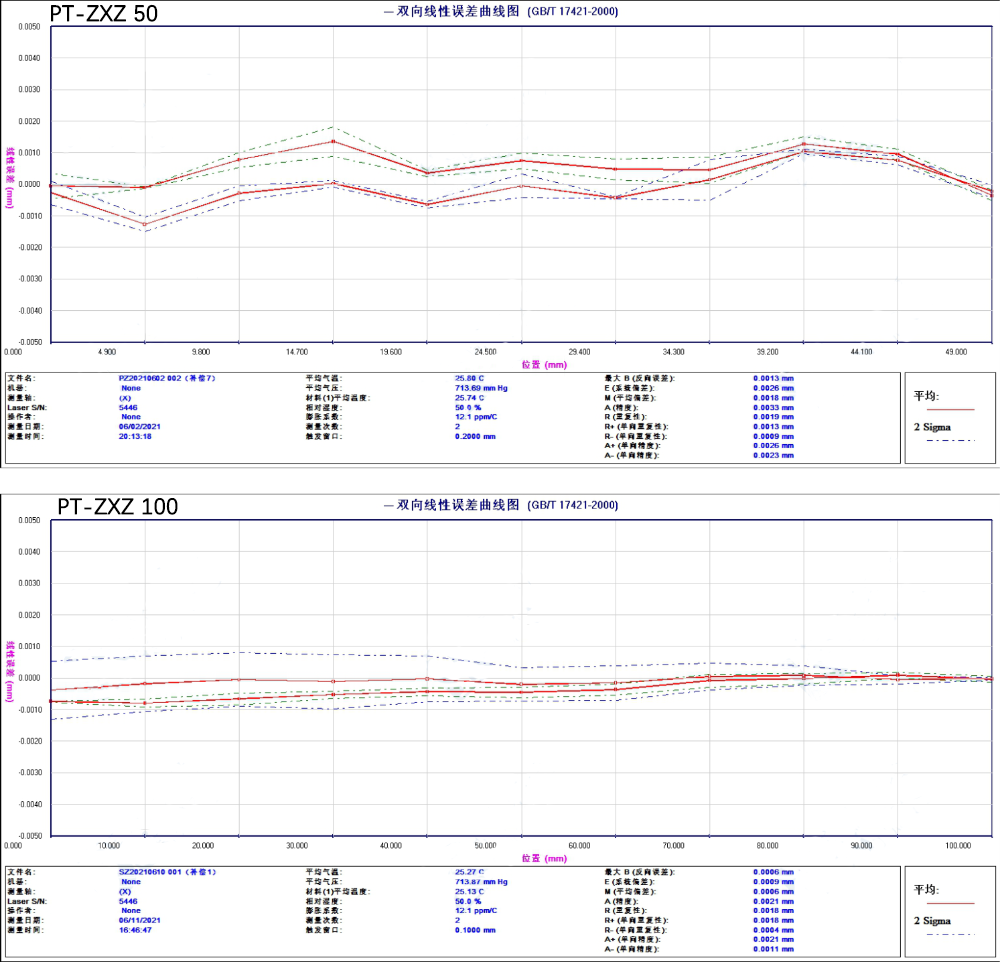

Performance measurement:

High-precision linear motor lifting platform PT-ZXZ 50

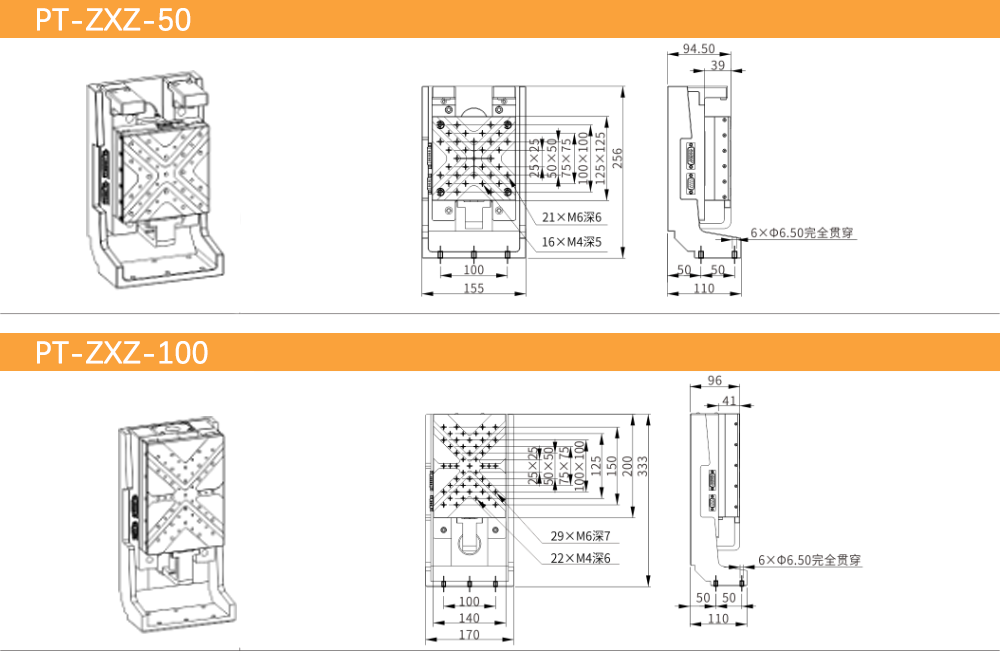

Product size:
