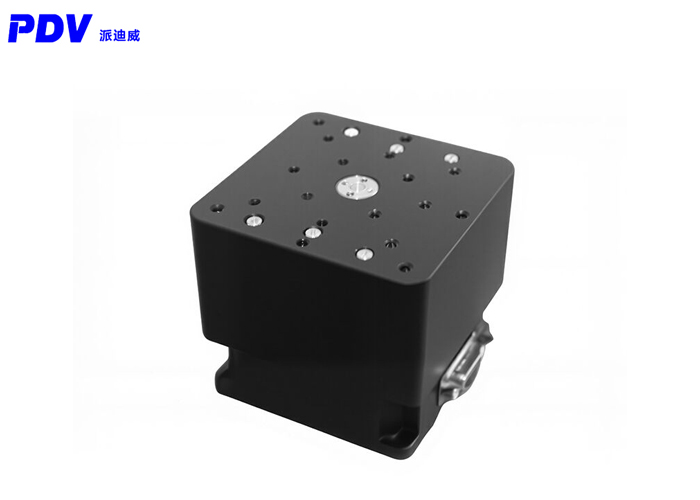

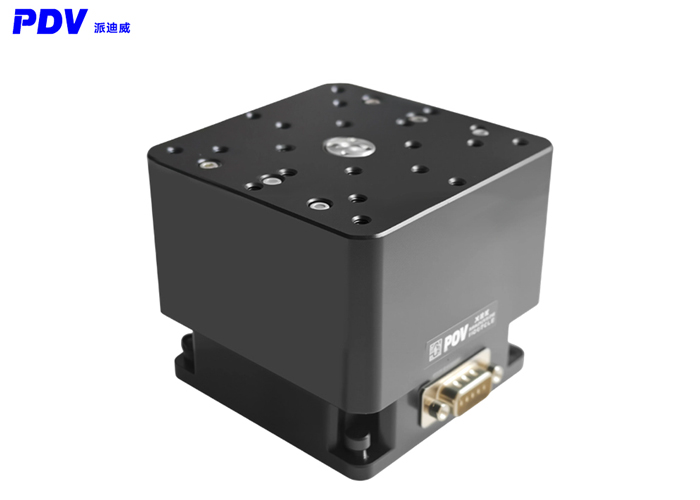

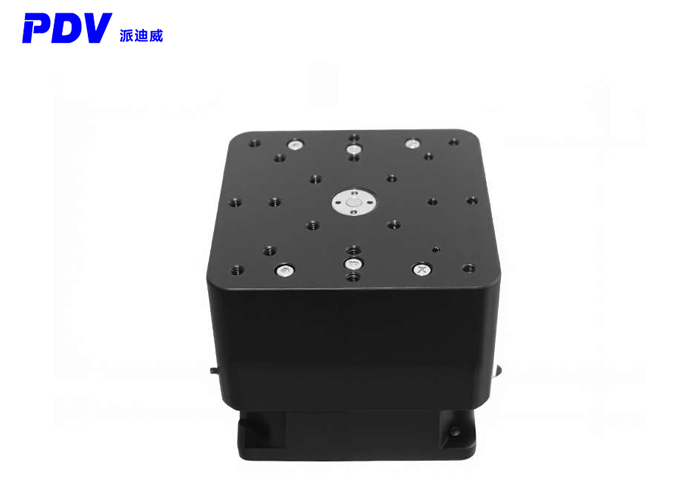

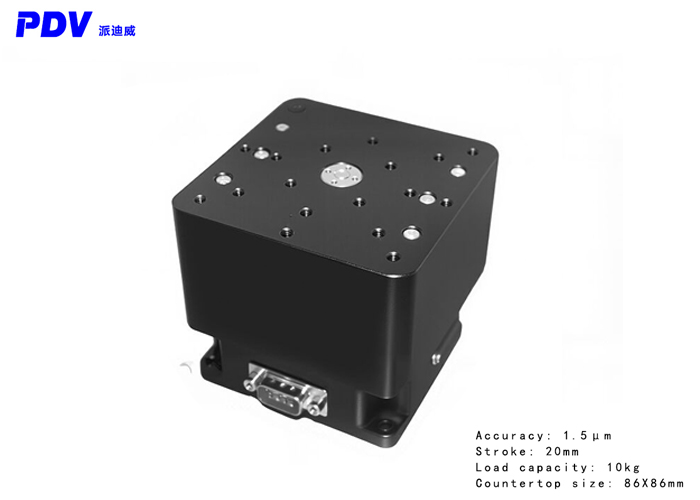

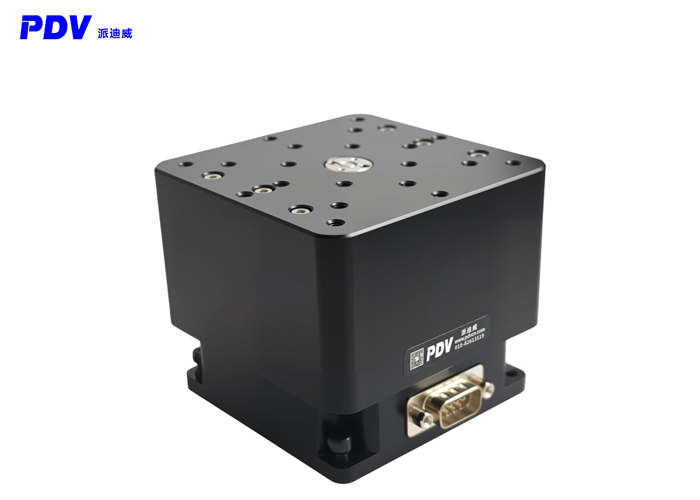

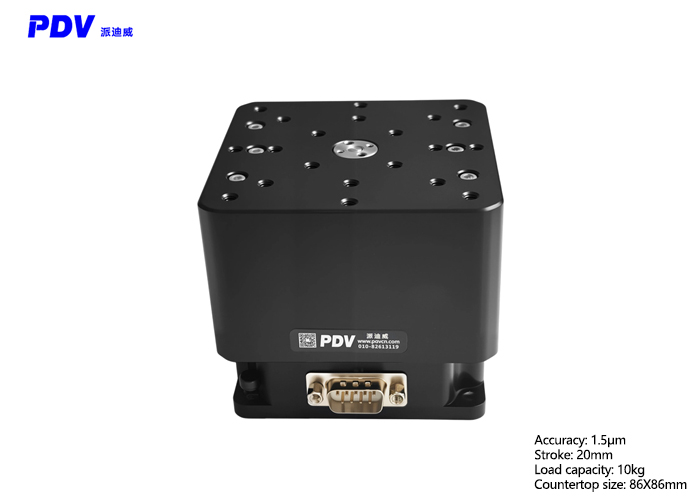

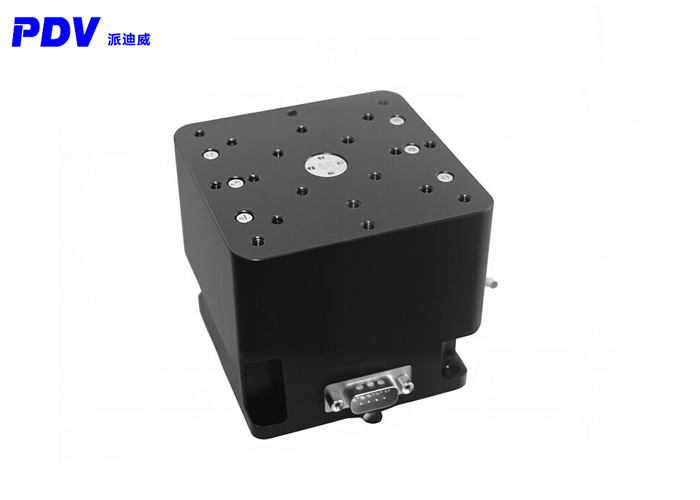

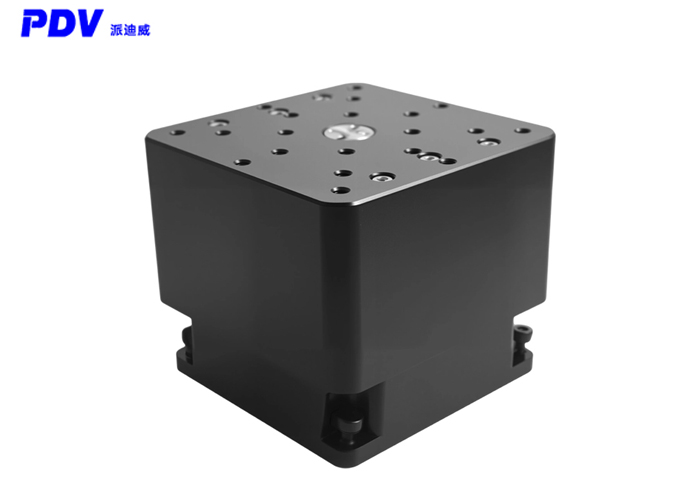

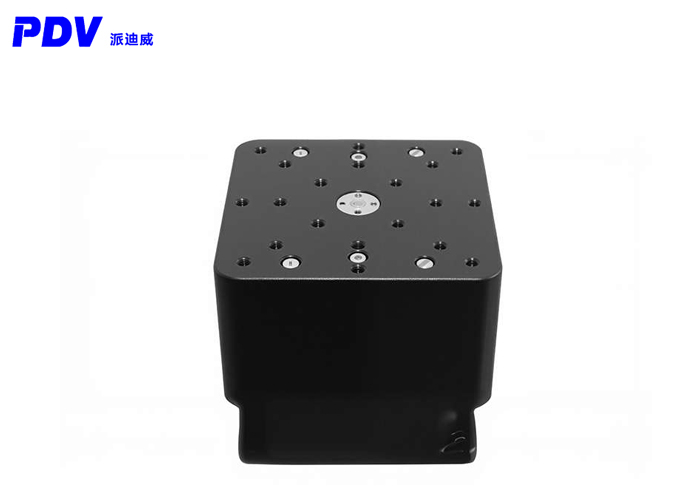

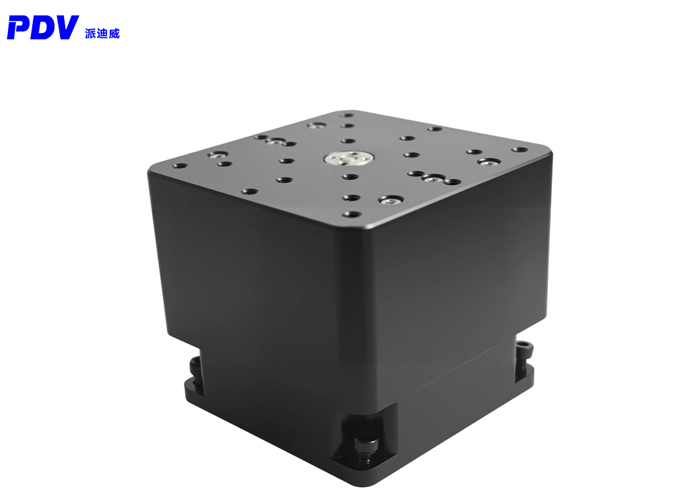

The light-load high-precision electric lifting platform adopts lead screw motors and multiple sets of crossed roller guide rails, featuring high precision, large load capacity, good stability and long service life. It is particularly suitable for applications with heavy loads, limited space, and high precision requirements. At the same time, it can be customized for use in vacuum environments.
Features
Lead screw motors omit intermediate links and have a low initial height.
Imported motor, high precision and large load capacity;
The lead screw has a small lead, high resolution and negligible backlash.
Multiple sets of crossed roller guide rails, with good stability;
Product parameters
| Model | PT-SN20 | |
| Structural description | Itinerary | 20mm |
| Countertop size | 86×86mm | |
| Lead screw | Direct push motor lead screw | |
| Lead | 0.794MM | |
| Guide rail form | Crossed roller guide rail | |
| Main materials | Aluminum alloy | |
| Surface treatment | Black oxidation | |
| Self-respect | 1.5kg | |
| Precision description | Resolution | 7.938μm (No subdivision) |
| 0.397μm (20subdivision) | ||
| Speed | ≤5mm/sec | |
| Precision | 1.5μm | |
| Carrying capacity | 10kg | |
| Empty travel | 5μm | |
| Parallelism | 50μm | |
| Motion parallelism | 15μm | |
| Pitch | 25" | |

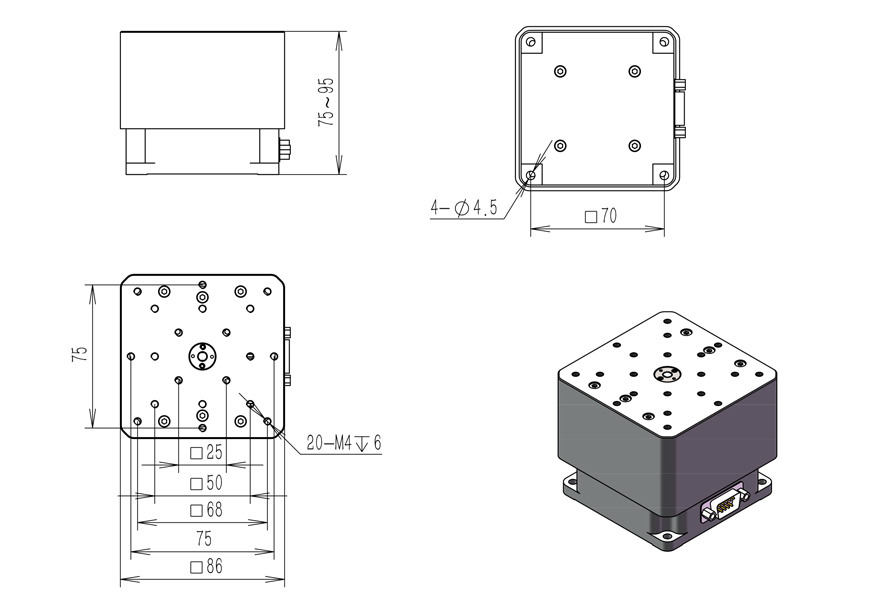

Product size
