Specification:
Service:
Shipping:
FAQ:
Electrical Specifications
Product Specifications:
| Model | PT-GD802 |
| Table Size | 80mm×80mm |
| Travel Range | 20mm |
| Main Material | Aluminum Alloy |
| Surface Treatment | Anodizing |
| Guideway Type | Crossed Roller Guide |
| Max. Moving Speed | 10mm/sec |
| Unidirectional Positioning Accuracy | 0.01mm |
| Repeat Positioning Accuracy | 0.001mm |
| Straightness | 0.8μm |
| Flatness | 4μm |
| Movement Parallelism | 5μm |
| Working Voltage | 24V |
| Step Angle | 1.8° |
| Motor | 42 Stepper Motor |
| Horizontal Load | 6kg |
| Net Weight of Stage | 1.5kg |

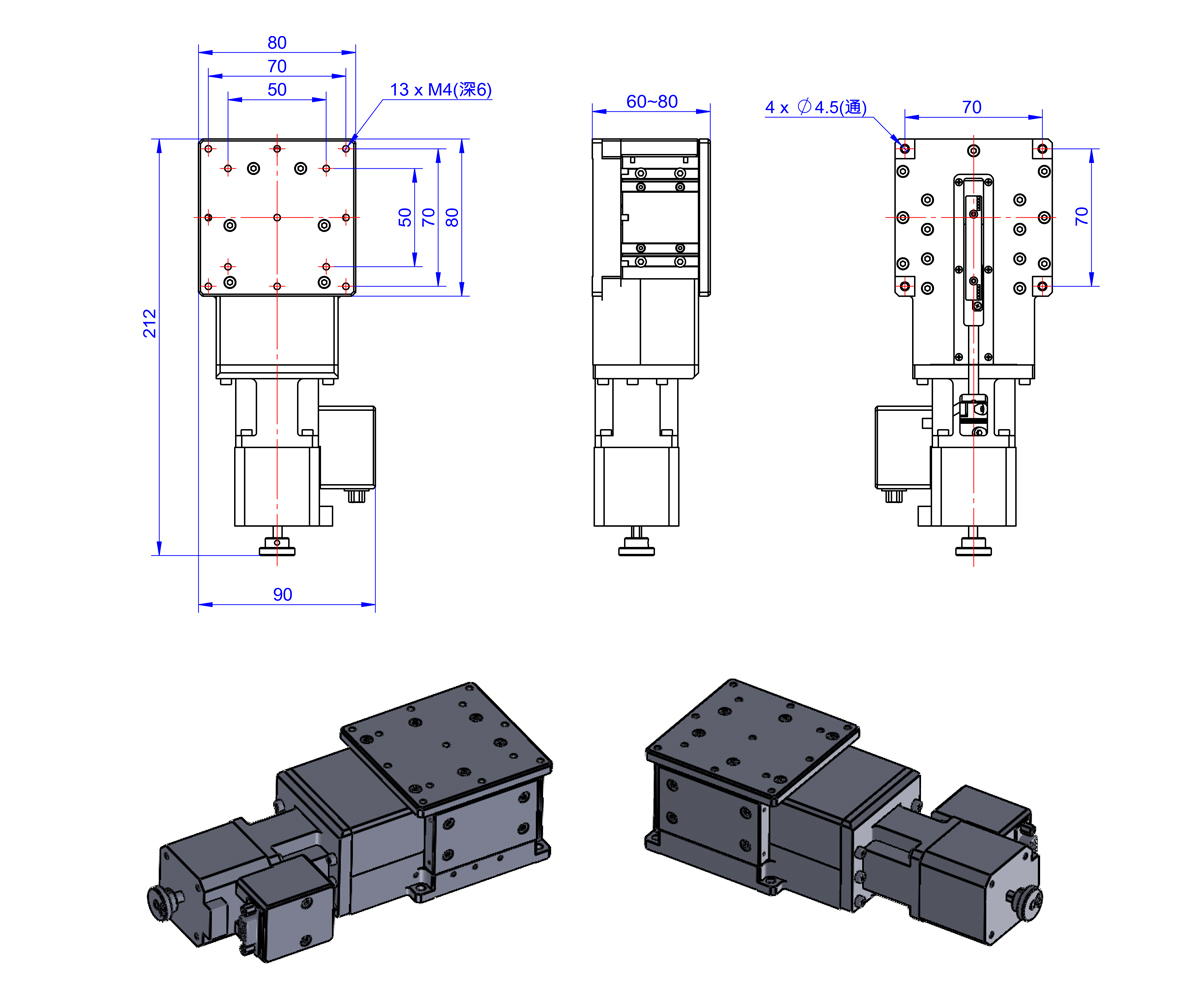

Product Dimensions:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
