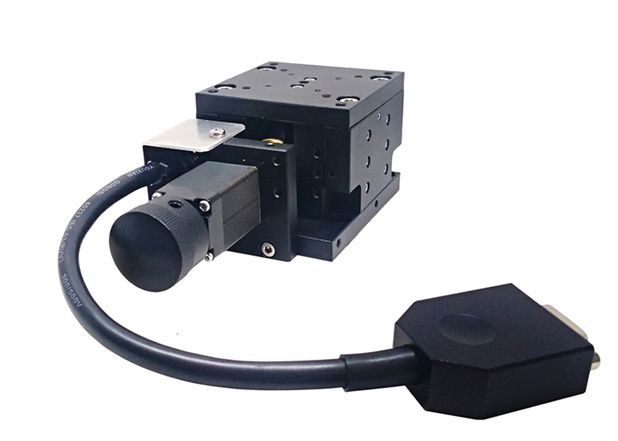

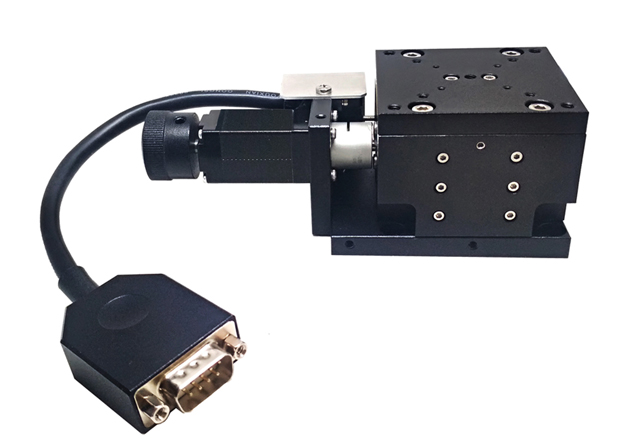

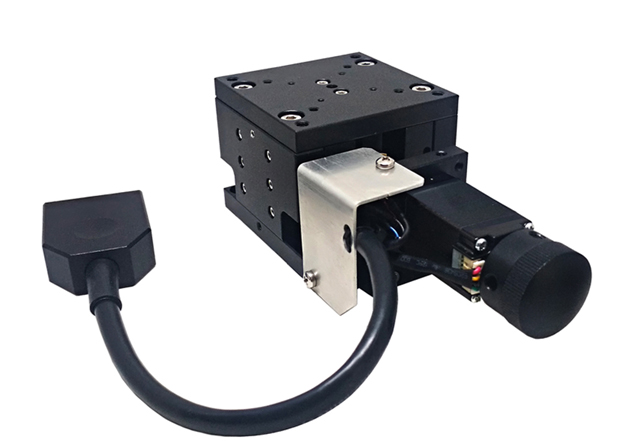

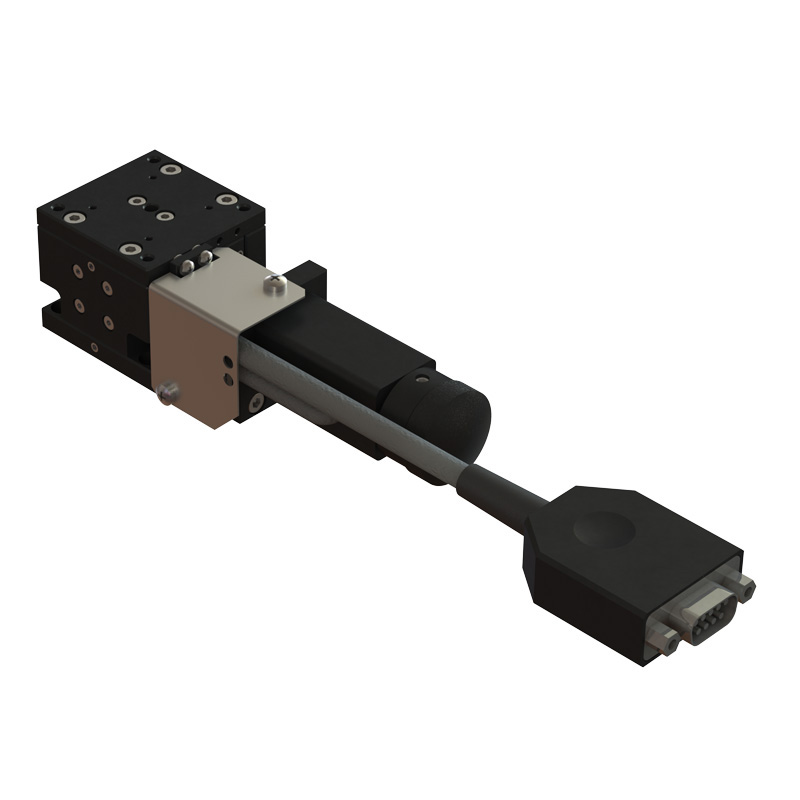

Product Name: PT-GD40/60/75 Motorized Lab Jack

Share
Specification:

Product parameters:

Model Number

PT-GD40

PT-GD60

PT-GD75

Platform Size

40×40mm

60×60mm

60×60mm

Lifting stroke

6mm

10mm

15mm

Transmission mode

1/2 wedge, grinding screw, pitch 1 mm

1/2 wedge, grinding screw, pitch 1 mm

ScrewT4x1

Reduction ratio 1:0.662

Guide form

Precision cross roller guide

Precision cross roller guide


Main material

High Strength Aviation Aluminum (6061)

High Strength Aviation Aluminum (6061)

High Strength Aviation Aluminum (6061)

Surface treatment of main materials

Black Anodic Oxidation

Black Anodic Oxidation

Black Anodic Oxidation

Instrument weight

0.3Kg

0.7Kg


Center load

2.5Kg

4Kg

≤2kg(No partial load)

Resolution 8 subdivision/step

0.000625mm/0.005mm

0.000625mm/0.005mm

Pulse equivalent 6043.341

Pulse value = 1➗tan(33.5)✖Driver pulse value

speed

5mm/sec

5mm/sec

≤2mm/sec

Accuracy of one-way positioning

≤50μm

≤50μm

≤50μm

Repeated positioning accuracy

≤20μm

≤20μm

≤20μm

Gap clearance

≤10μm

≤10μm

≤10μm

Surface runout

≤30μm

≤30μm

≤30μm

Motor type

Double Out Shaft 20 Stepper Motor

Double Out Shaft 20 Stepper Motor

42 Stepper Motor

Stepping angle of motor

1.8°

1.8°

1.8°

Rated working current

1A

1A

1A

supply voltage

24V±10%

24V±10%

24V±10%

Joint

DB9 needle connector

DB9 needle connector

DB9 needle connector

Limit switch

Photoelectric switch

Photoelectric switch

8104 Photoelectric Switch Normally Closed


Product details:

Product parameters:

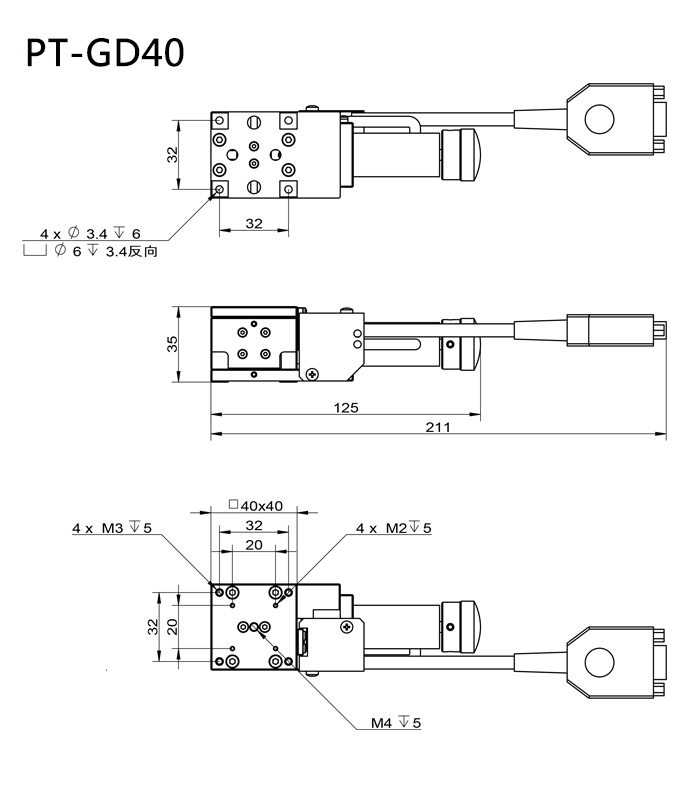

PT-GD40 Motorized Lab Jack

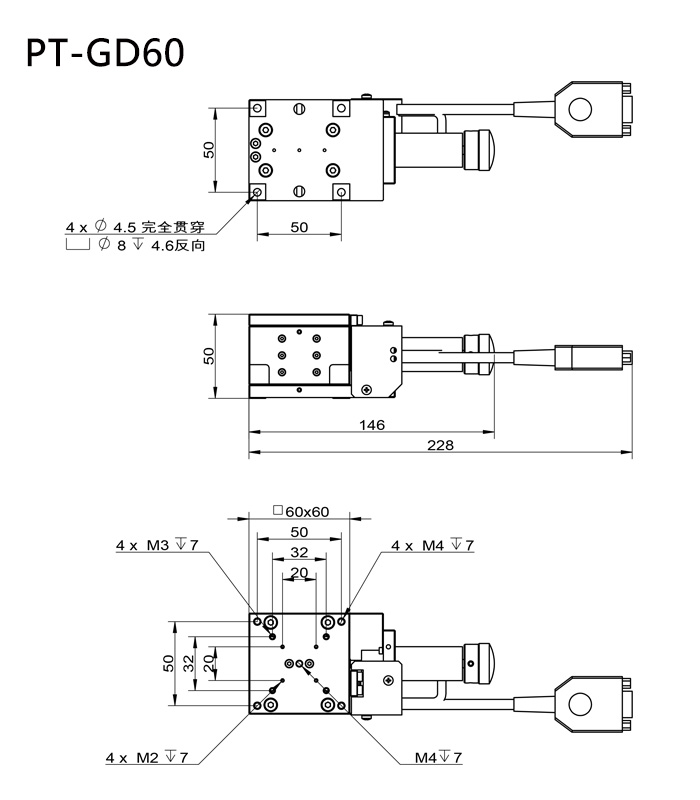

PT-GD60 Motorized Lab Jack

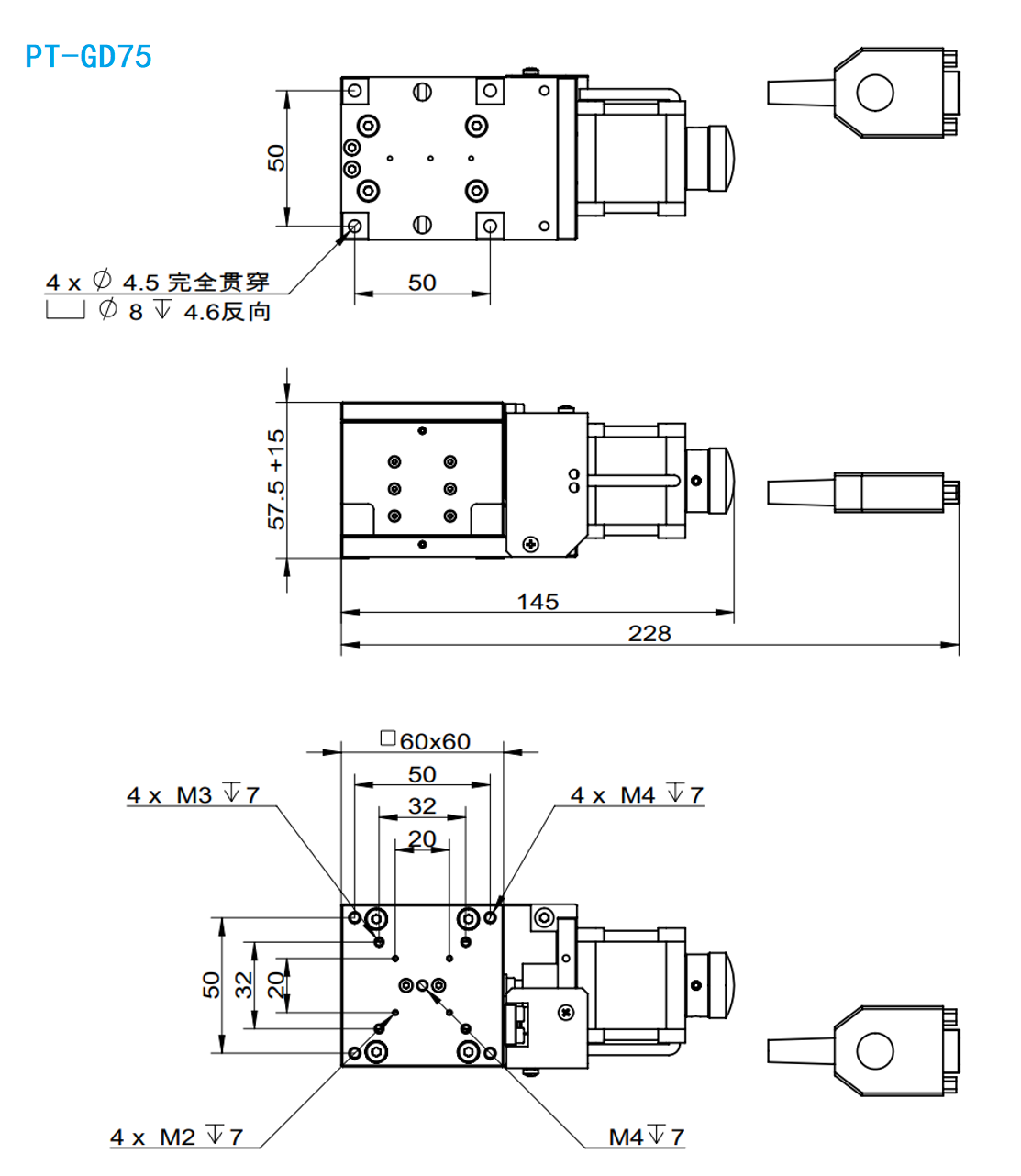

PT-GD75 Motorized Lab Jack
