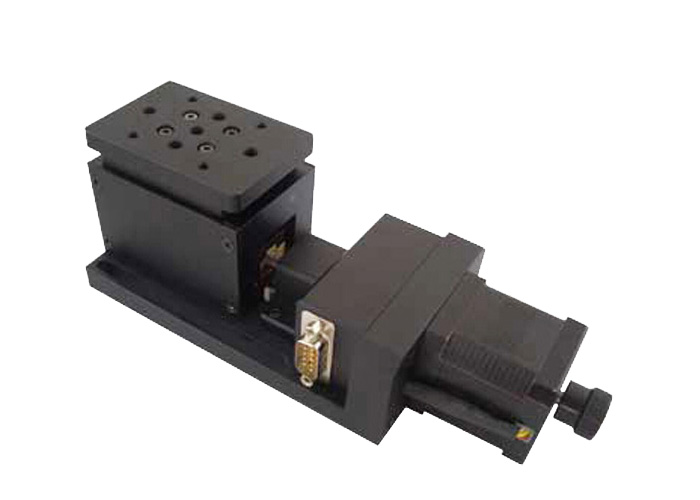

Product Name: Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404

Share
Specification:

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

Structure Specifications

1   Item Number: PT-GD404

2   Travel Range: 10 mm

3   Dimension of Platform: 50mm x 74mm

4   Drive Mechanism: Grinding Screw

5   Travel Guide: Crossed- Roller Bearing

6   Stepper Motor (1.8°): SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle

7   Material – Finish: Aluminum Alloy - Black-Anodized

8   Load Capacity: 10kg

9   Weight: 1.5kg

Accuracy Specifications

1   Minimum Adjust Distance: 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver

2   Max Velocity: 5mm/sec

3   Repeatability: 7μm

4   Backlash: 4μm

5   Lost Motion: 3μ

Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404


Product details:
Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.



PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.


Service:
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD404
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
