Electrical Parameters
Product Parameters：
| Model | PT-SP60 |
| Table Diameter | φ60mm |
| Travel Range | ±10° |
| Material | Aluminum Alloy |
| Transmission Type | Ball Screw |
| Guideway | Rolling Guide + Crossed Roller Bearing |
| Lead Screw | C5 Ground Screw, Diameter 6mm, Lead 1mm |
| Max Moving Speed | 10°/sec |
| Positioning Accuracy | 0.01° |
| Repeat Positioning Accuracy | ±0.001° |
| Table Runout | 0.015mm |
| Concentricity | 0.015mm |
| Compatible Motor | 28 Stepper Motor |
| Step Angle | 1.8° |
| Limit Sensor | NPN Normally Closed |
| Home Sensor | NPN Normally Open |
| Calculation Formula | 1°=0.4363*P(Pulses per Revolution) |
| Working Voltage | 24V |
| Horizontal Load | 5kg |
| Net Weight | 0.75kg |

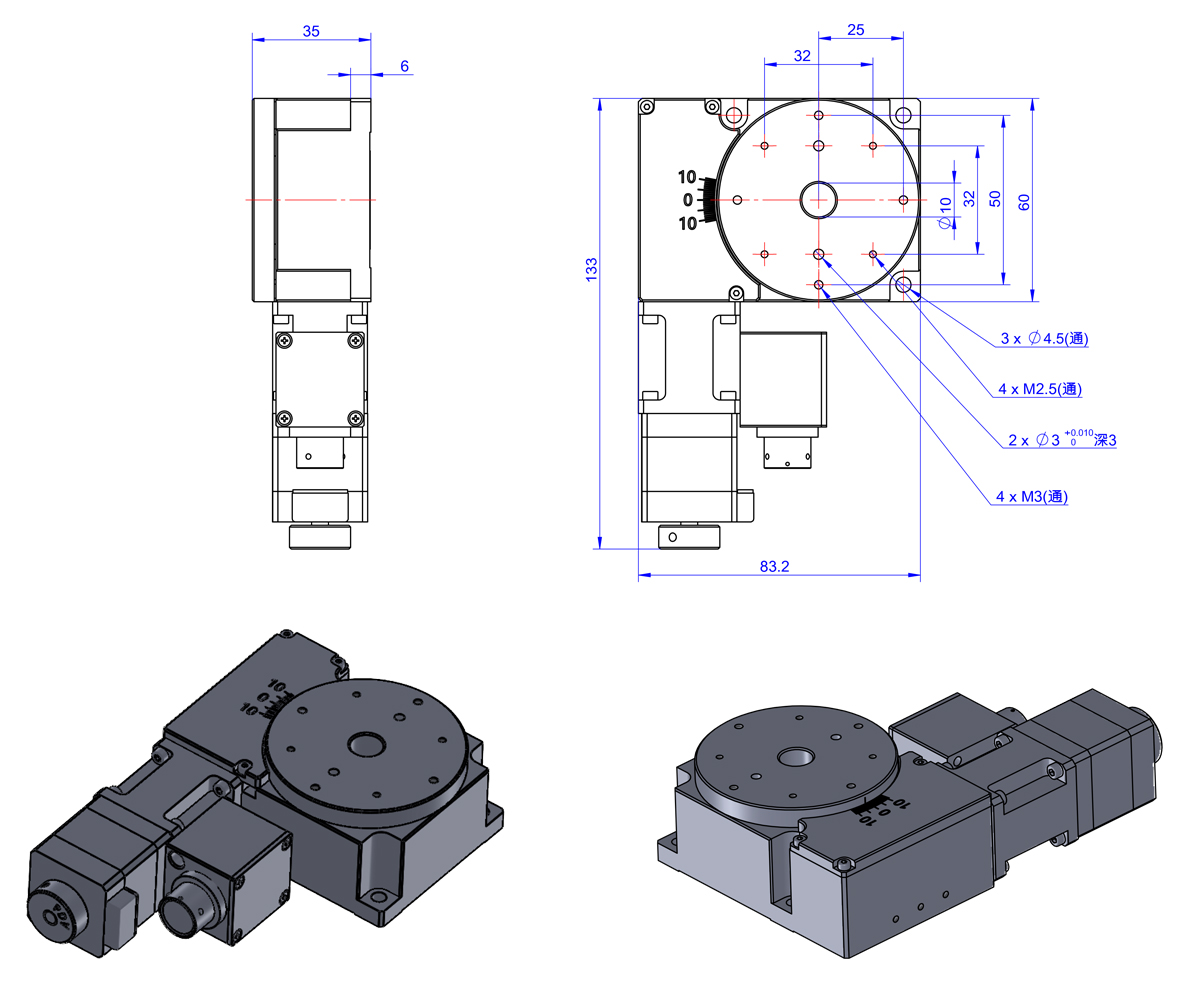

Product Dimensions：
