Product Specifications:
| Product model | PX110-200CB | |
| Structural Description | Angle range | 360° |
| Table surface size | φ200mm | |
| Transmission ratio | 180∶1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Guide rail type | Bearings | |
| Stepper motor 1.8° | 57BYG | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Centering and grounding | 28kg | |
| Weight | 6.9kg | |
| Precision description | Resolution | 0.01°=36″（No segmentation） |
| 0.0005°=1.8″（20 segmentation） | ||
| Speed | 25°/sec | |
| Repeatability of positioning accuracy | 0.005°=18″ | |
| Positioning accuracy (Optionally equipped with grating) | 0.01°=36″ | |
| End jump accuracy | 15μ | |
| Idle return | 0.005°=18″ | |
| Bias | 20μ | |
| Step loss | 0.005°=18″ | |
| Parallelism | 100μ | |

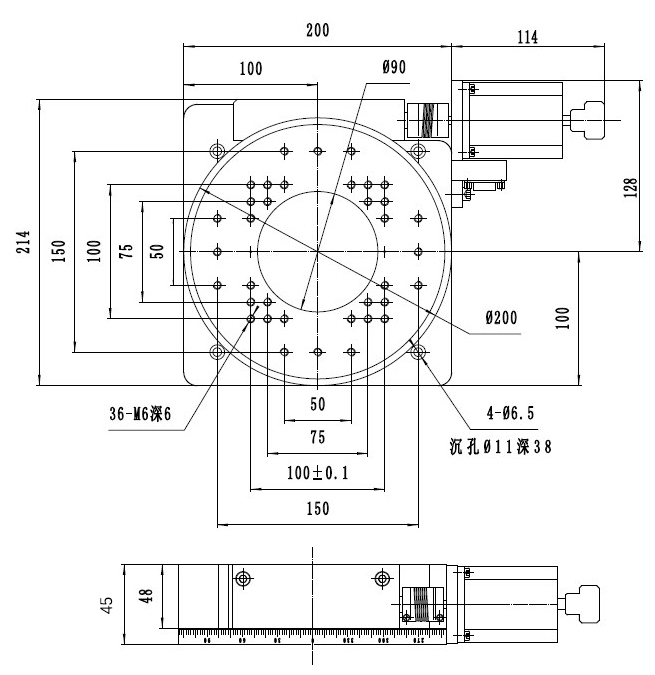

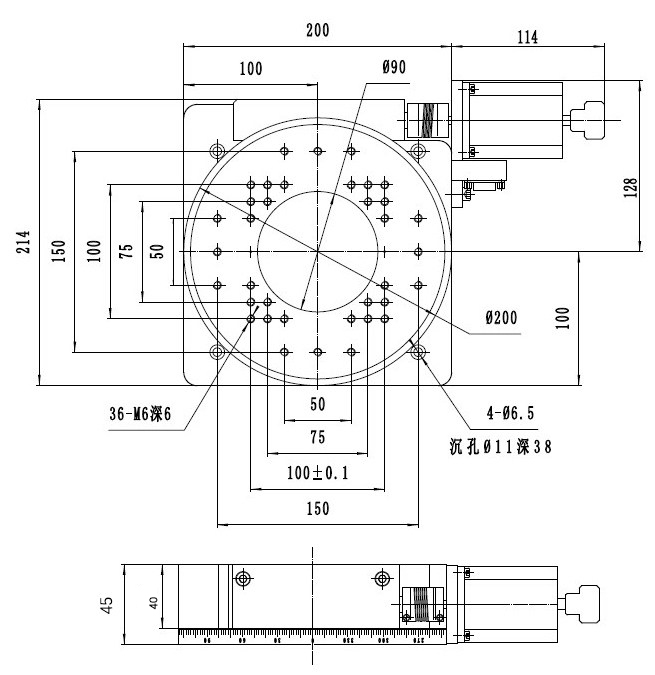

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
