Product parameters：
| Customize as required | ||

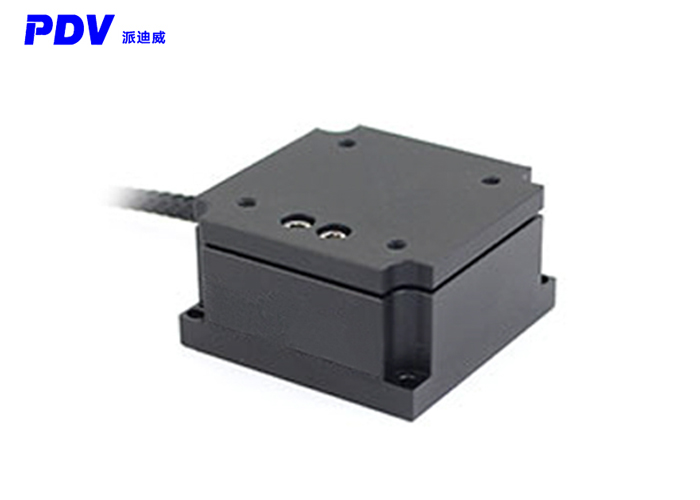

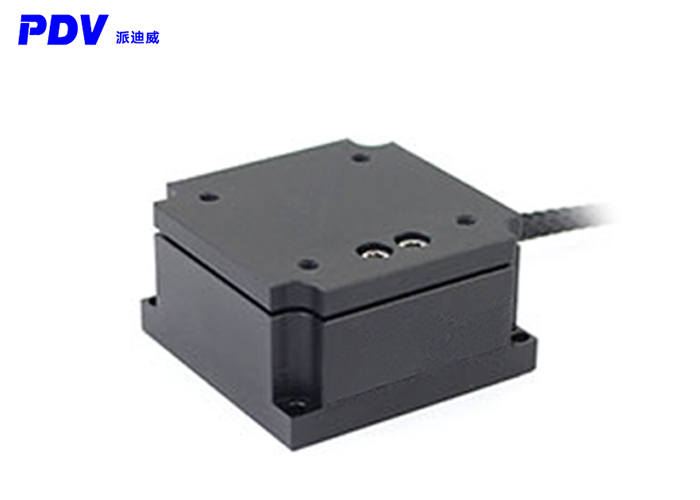

| Model | PT-NMXYZ30 | |
| Degrees of freedom of motion | X、Y、Z | |
| Drive control | 1 drive, 1 sensor | |
| Travel in the X and Y directions | Greater than 40μm | |
| Z-axis travel | 40μm | |
| X-axis accuracy | Above 500nm | |
| Y and Z direction accuracy | Above 1000nm | |
| Nominal travel range (0-120V) | 80μm±10% | |
| Max. Travel range (0-150V) | 100μm±10% | |
| Sensor type | SGS/－ | |
| Closed-loop/open-loop resolution | 3/0.1nm | |
| Closed-loop linearity | 0.05/－%F.S. | |
| Closed-loop repeat positioning accuracy | 0.02/-%F.S. | |
| Pitch/yaw/roll | <10μrad | |
| Push/pull force | 30/10N | |
| Stiffness in the direction of motion | 0.3N/μm±20% | |
| No-load resonant frequency | 0.3kHz±20% | |
| Closed/open loop no-load step time | 10/0.8ms±20% | |
| Closed-loop operating frequency (-3dB) | 70（Load100g）Hz±20% | |
| Carrying capacity | Horizontal installation | 0.8kg |
| Vertical installation | 0.05kg | |
| Inverted installation | 0.8kg | |
| Electrostatic capacity | 1.8μF±20% | |
| Material | Steel, aluminium | |
| Weight | 100g±5% | |

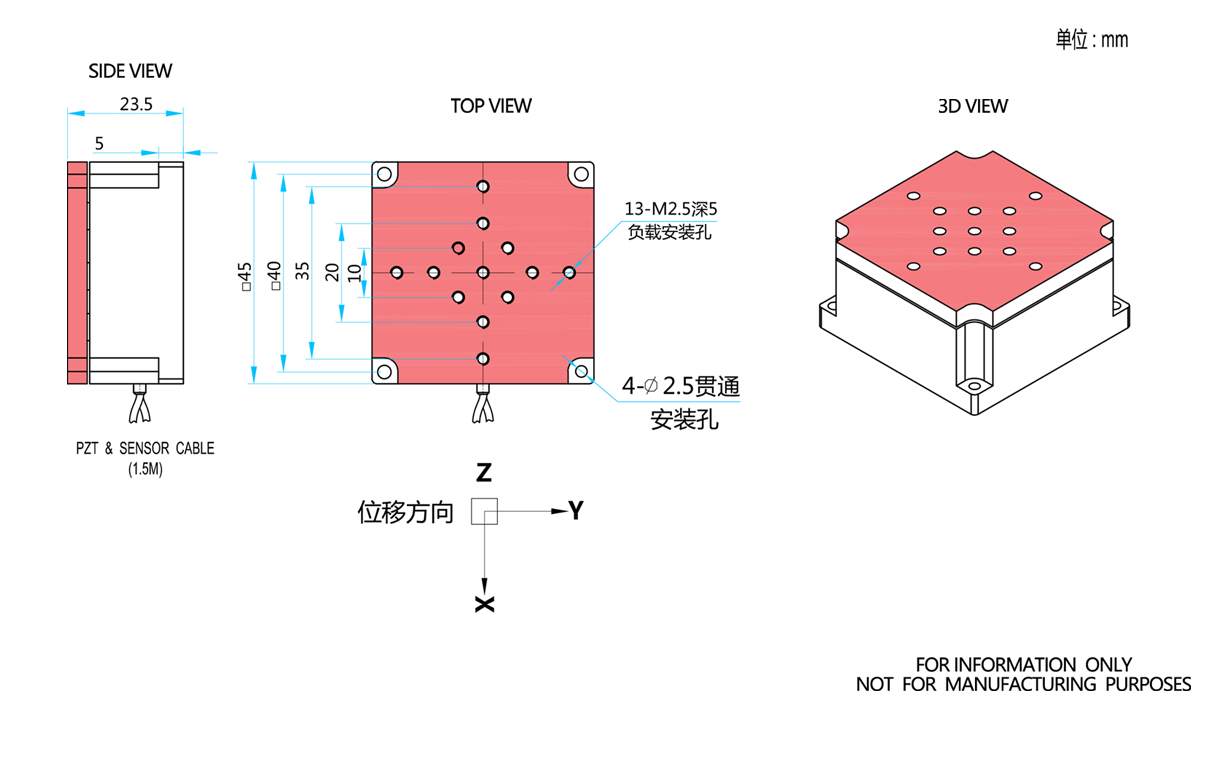

Product size：
