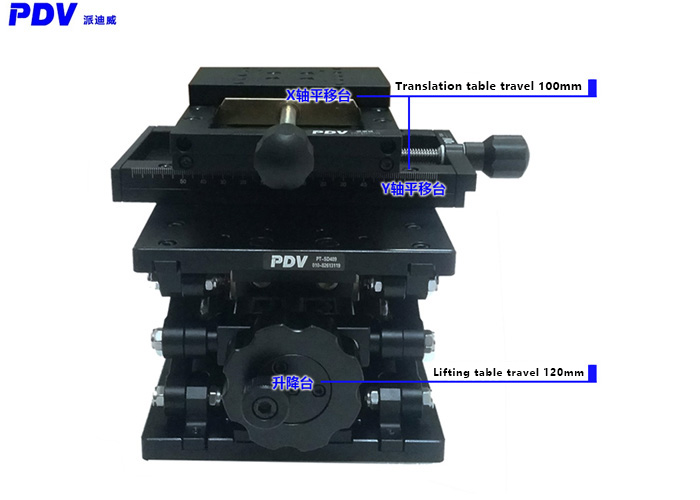

2 manual linear stages PT-SD102P and 1 manual lab jack PT-SD409 are combined, with X axis travel (50MM), Y axis travel (50MM) and Z axis travel (120MM).
Product details:Manual Lab Jack PT-SD409
Item Number: PT-SD409
Stage Size: 140mm×220mm
Actuator Type: Precision Whet Thread
Vertical Travel: 120mm
Adjust Distance: 5μ
Load Capacity: 25kg
Weight: 5kg
Material: Aluminum Alloy
Finish(Surface Treatment): Black-anodized
Manual Linear Stage PT-SD102P
Item Number: PT-SD102P
Travel Range: 50mm
Actuator Type: Grinding Screw in Center
Travel Guide: Dovetail
Platform: 100mm × 60mm
Parallelism: 30μm
Straightness: 50μm
Driving Parallelism:40μm
Scale: 0.02mm
Adjust Distance: 5μm
Material – Finish: Aluminum Alloy - Black-Anodized
Load capacity: 12Kgs
Weight: 0.7kgs
