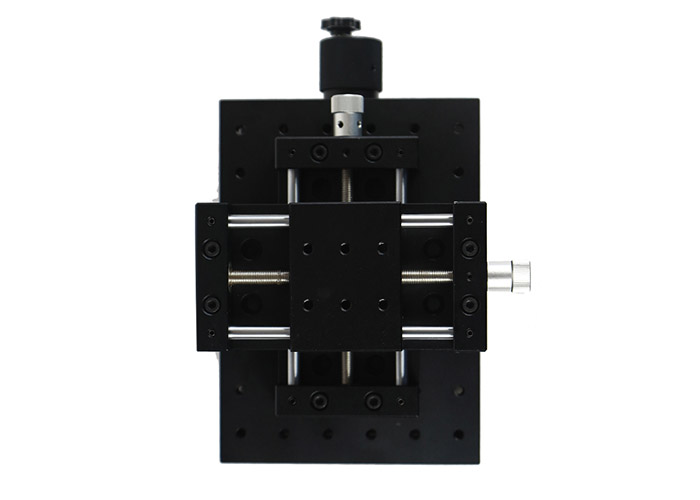

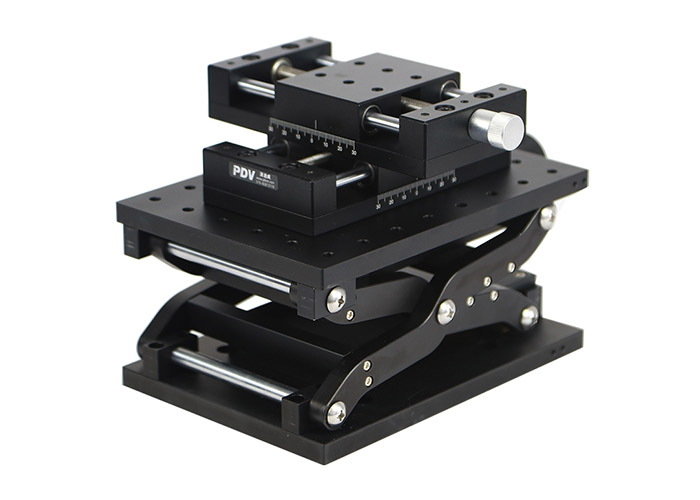

The Z-axis is a manual lab jack PT-SD412. There are three travel specifications for X-axis and Y-axis, namely 40mm, 60mm and 80mm.
Model Number | PT-SD412 | Model Number | PT-S40 | PT-S60 | PT-S80 |
Platform Size | 210mm×150mm | Platform Size(mm) | 80*80 | 80*60 | 80*80 |
Drive Mechanism | Fine Grinding Lead Screw Drive | Travel(mm) | 40 | 60 | 80 |
lift Trip | 120 mm | Load Center(kg) | 10 | 9 | 9 |
Adjustment | 10μ | Weight(kg) | 0.77 | 0.88 | 0.91 |
Load Capacity | 30kg | Material | Aluminum Alloy | ||
Weight | 3.8kg | Displacement Of The Knob By One Turn | 1.5mm | ||
Material – Finish | 6061Duralumin (Black-Anodized) | Z（mm) | 20 | 30 | 40 |
A （mm) | 100 | 100 | 140 | ||
B （mm) | 156 | 156 | 196 | ||
