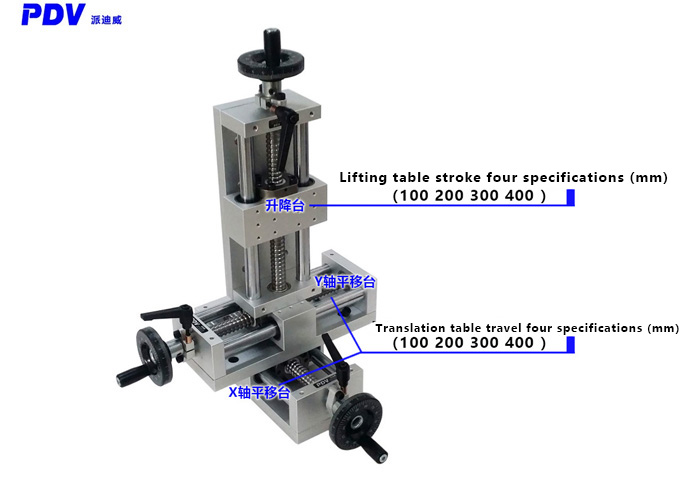

Manual Linear Slide Rail Screw Adjustment Three - Dimensional Moving Stage Wholesaler - Manual Three-axis Combined Stage Manufacturer, for Sale, Exporter China,factory,manufacturer

Specification:

With lock can choose different stroke arbitrary combination of two-axis and three-axis.

Model	Travel	linear bearing	Load capacity
PT-LX100	130mm	LM16UU	50KG
PT -LX200	230mm	LM16UU	50KG
PT-LX300	330mm	LM16UU	50KG
PT-LX400	430mm	LM16UU	50KG

Product details:

1.screw specifications: ball screw 1605;

2. guide rail specification: 16mm;

3. lead: 5MM;

4. aluminum thickness: 15MM Model: 6061;

5. High precision, heavy load;

6. Repeatable positioning accuracy of ±0.02mm.

PT-LX100 Manual Linear Stage, Ball Screw Slide Table, Manual Platform,Translation Station,Optical Sliding Table

Service:

Manual Linear Slide Rail Screw Adjustment Three - Dimensional Moving Stage

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.
