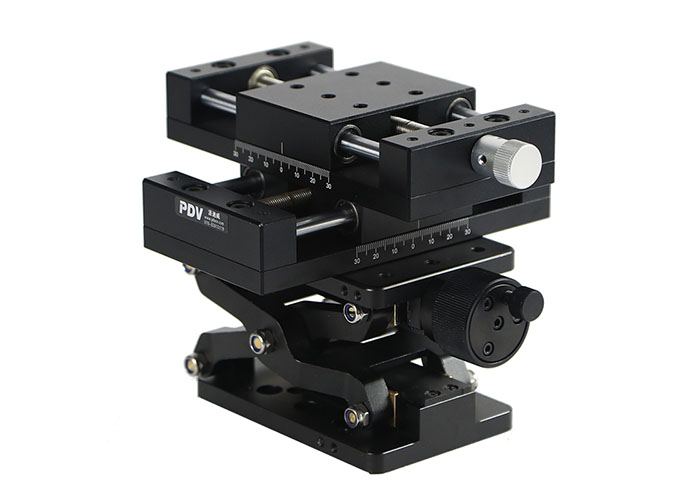

Product Name: Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform

Share
Specification:

Product combination mode:PT-SD408S+PT-S40,PT-SD408S+PT-S60,PT-SD408S+PT-S80

Product details:

Model

PT-S40

PT-S60

PT-S80

Platform size(mm)

80*80

80*60

80*80

Travel(mm)

40

60

80

Center bearing (kg)

10

9

9

Weight(kg)

0.77

0.88

0.91

Material

Aluminium alloy

Displacement of the knob in one revolution

1.5mm

Z(mm)

20

30

40

A  (mm)

100

100

140

B  (mm)

156

156

196

Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform


Model

PT-SD408S

Platform Size

120mm×80mm

Drive Mode

Fine grinding lead screw drive

Lifting Travel

60 mm

Min Adjustment

5μ(参考)

Load Bearing

20kg

Weight

1.15kg

Material – Finish

Aluminum Alloy - Black-Anodized

Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform

Advantage:

PDV is a professional manufacturer of precision optical instruments integrating optics, precision machinery and automatic control. Main business scope: manual and electric displacement table, electric translation table, lifting table, corner table, electric rotary table, electric multi-dimensional combination table, precision optical adjustment frame, optical support base, optical platform research and development, production, sales and after-sales service. Product application: The products are widely used in universities, scientific research institutes, national defense, machinery, photoelectric industry and other fields. Products focus on modular, integrated, has formed a mass production, to provide users with a variety of high-quality products, to meet the needs of different customers, can provide peer manufacturers with accessories and technical solutions; The factory has a finished product warehouse, conventional products are available in stock, while the R & D team for you to develop, tailored to the special requirements and specifications of the product.

Service:
Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
  • Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
  • Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
  • Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
  • Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
Precision XYZ Three-axis Combined Sliding Stage Manual Lifting Translation Multi-axis Platform
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
