Product Name: XYZ Three Axis Precision Displacement Platform

Share
Specification:

Model Number

LD40

LD60

LD80

LD90

LD125

Direction of movement

XYZ three directions

material

Aluminum alloy   (black anode)

Drive mode

Micrometers

Platform Size

40mm×40mm

60mm×60mm

80mm×80mm

90mm×90mm

125mm×125mm

Travel

XY-axis:±6.5mm

Z-axis:10mm

XY-axis:±12.5mm

Z-axis:10mm

XY-axis:±12.5mm

Z-axis:20mm

Load

19.2N(2kgf)

58.8N(6kgf)

88.2N(9kgf)

147N(15kgf)

Min Scale

0.01mm

Weight

0.44kg

0.87kg

1.62kg

1.7kg

4.78kg


Product details:

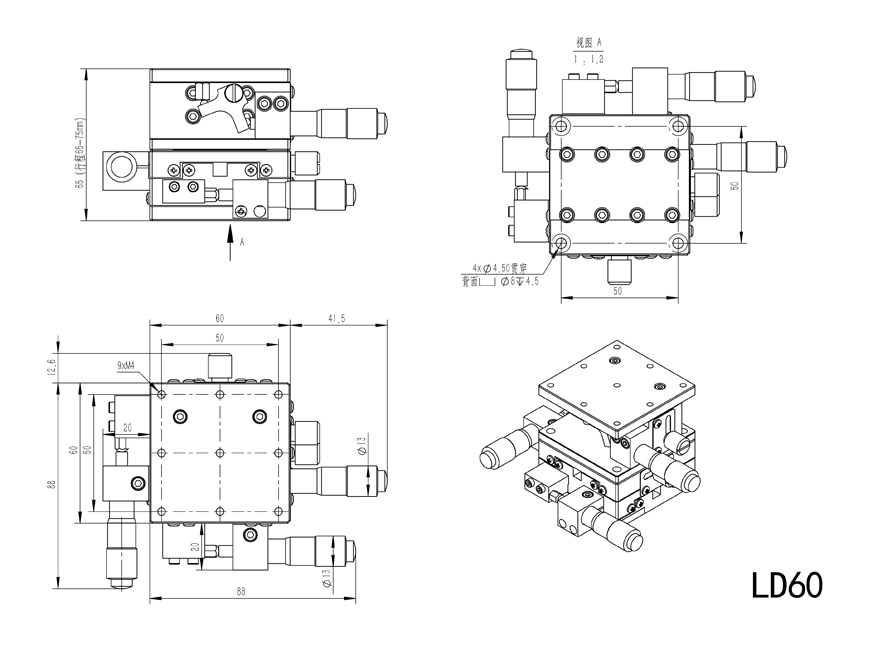

Product dimension drawing:

XYZ Three Axis Precision Displacement Platform

XYZ Three Axis Precision Displacement Platform

Service:
XYZ Three Axis Precision Displacement Platform
  • XYZ Three Axis Precision Displacement Platform
  • XYZ Three Axis Precision Displacement Platform
  • XYZ Three Axis Precision Displacement Platform
  • XYZ Three Axis Precision Displacement Platform
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
XYZ Three Axis Precision Displacement Platform
XYZ Three Axis Precision Displacement Platform
FAQ:
Note:

    We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
