Product Name: XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel

Share
Product details:

Scissor Fork Manual Lab Jack PT-SD31/SD72/SD50/SD68

Product parameters

Model Number

PT-SD31

PT-SD72

PT-SD50

PT-SD68

Platform

60x80mm

60x120mm

80x100mm

80x120mm

Travel Range

31mm

72mm

50mm

68mm

Distance per Circle

1.8mm

2.1mm

Load Capacity

6kgf(58.8N)

6.5kgf(63.7N)

7kgf(68.6N)

7.5kgf(73.5N)

Parallelism

200μm

Weight

0.7kg

0.95kg

1.1kg

1.0kg

Surface Material

Aluminum Alloy - Black-Anodized

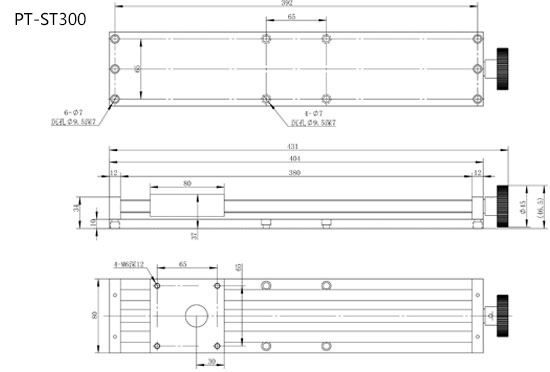

Manual Linear Stage PT-ST50/ST100/ST200/ST300

Product parameters:

Lead: 3 mm

Lead screw diameter: 14MM

Light rod diameter: 12MM


 Model Number

PT-ST50

PT-ST100

PT-ST200

PT-ST300

 Trip

50mm

100mm

200mm

300mm

Screw pitch

1.25mm

3mm

3mm

3mm

Bearing

20KG

20KG

 20KG

20kg

Dead weight

1kg

1.8kg

2.8kg

3kg

Material surface treatment

 6061 aluminum alloy - black or anodized

XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel


XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel

XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel

XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel



Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.


Service:
XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
  • XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
  • XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
  • XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
  • XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
XYZ Three Axis Manual Moving Stage Precision Slide Table Displacement Stage With Hand Wheel
FAQ:
Note:

    We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
