Product parameters:
| Model | PT-KZ03 |
| Motor Type | Linear Motor Torque Motor Voice Coil Motor |
| Motor Type | 01/03 |
| Loops(Open/Close) | Closed Loops |
| Function of Motion | P to P,Homed, Relative Move, ABS Move |
| Pulse Frequency | 5M |
| HMI | / |
| Hand Wheel | / |
| Communication Port | RS485 |
Product Features/Details:
Linear & servo motor controller
Precise control, flexible and easy to use, meeting diverse application requirements
Linear & servo motor controllers, specifically designed for various displacement stages that require precise control of linear motors and servo motors. It provides rich software support and flexible communication methods to facilitate users' system integration.
Main features
Compact in structure, it can be flexibly integrated into various application scenarios.
Fine control, excellent precision: Linear motor & servo motor displacement stages can achieve fine positioning and meet the strict requirements for precision.
Powerful software support and easy operation: Free standard SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission, facilitating integration with other devices.
1.Compact structure, small volume, strong functionality;
2.Multiple motion mode options: point motion, relative motion, absolute motion, and round-trip motion;
3.Built-in high-performance low-voltage DC driver, supporting 3A continuous current (larger current requires customization);
4.Reset the coordinates at any position;
5.Full closed-loop control
6.Standard control software is provided, which is ready to use immediately upon opening. It can also be programmed and controlled by yourself using the SDK.
7.Position error compensation, capable of establishing an error compensation table with up to 1000 points;
Suitable for low-power and low-speed applications.

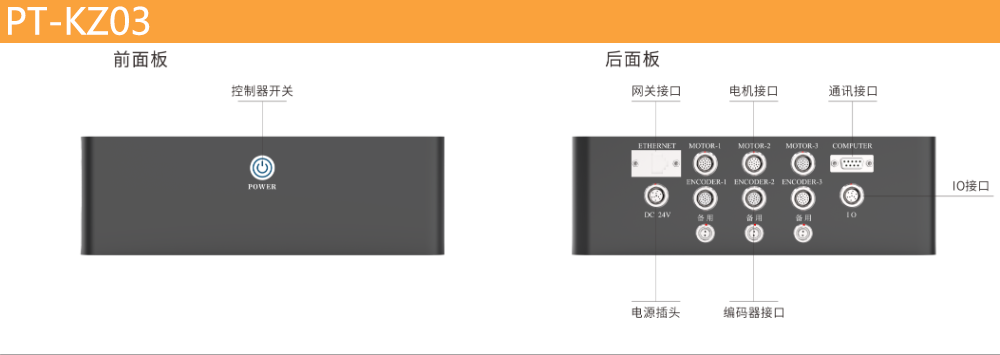

Schematic diagram of the drawing board：

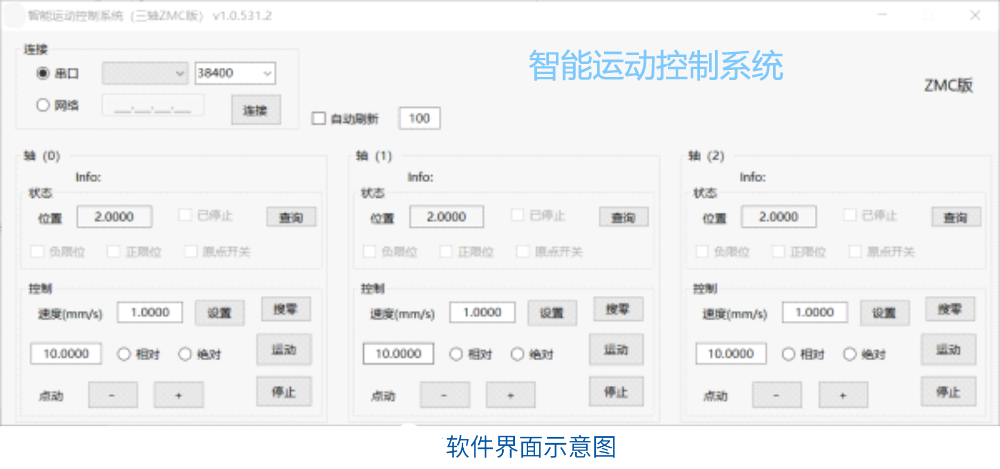

Supporting software:
The software has complete basic functions, simple Settings and is suitable for the vast majority of customers to use.

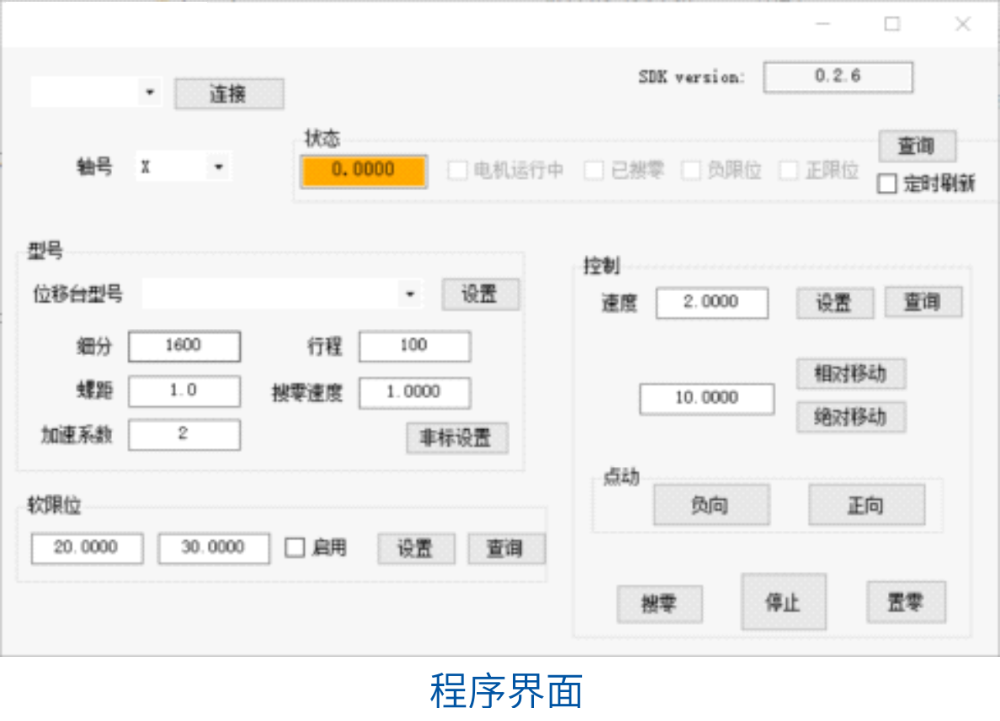

SDK development kit
The SDK is developed in C# and encapsulates the control protocol. Users can program quickly without having to understand the specific control protocol. The SDK development package provides DLL function libraries, supporting C#, Labview, Matlab, and C++, and offers Demo programs. The function library provides support for both WINDOWS and LINUX simultaneously. The function library is for all models of controllers.

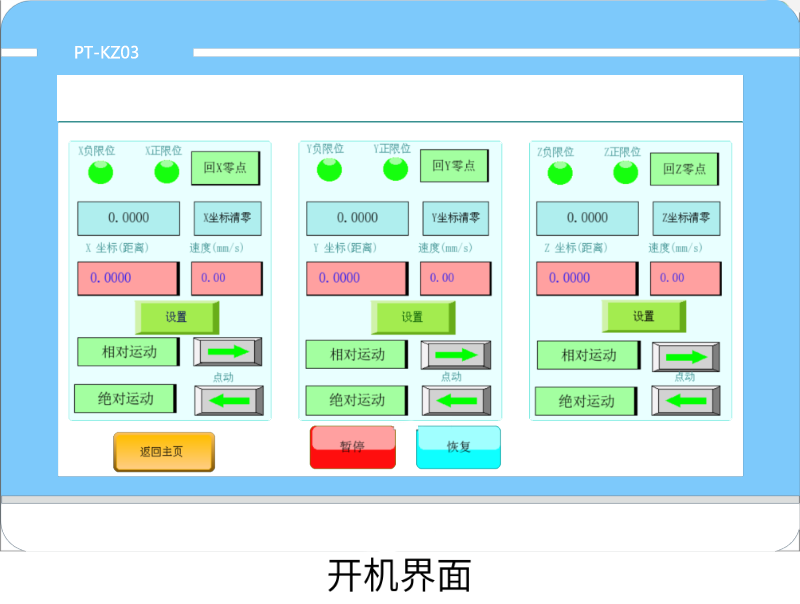

Controller startup interface:

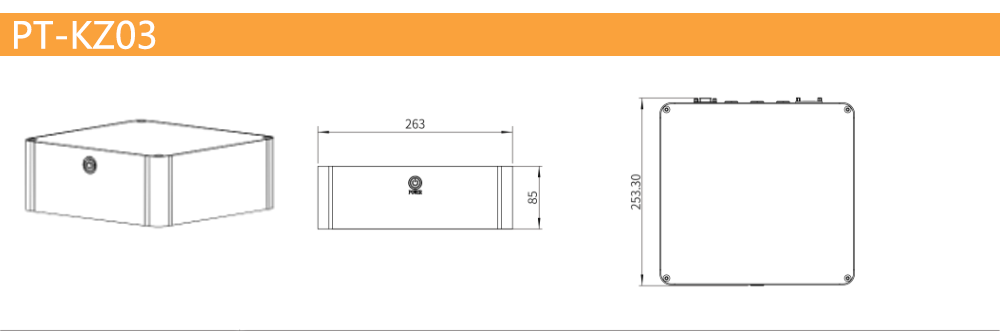

Product size:
