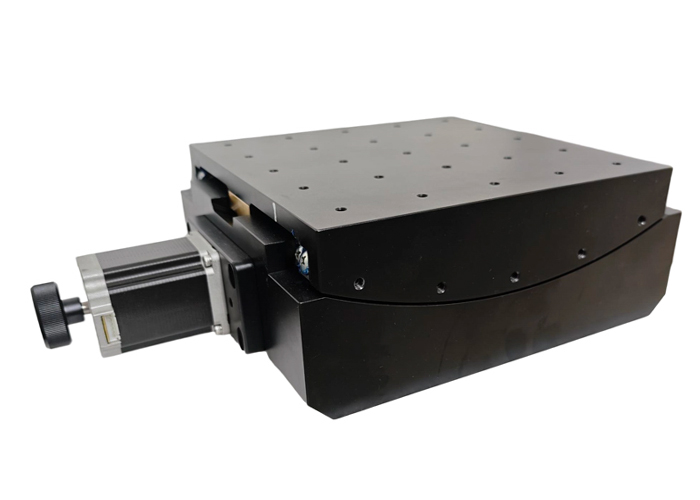

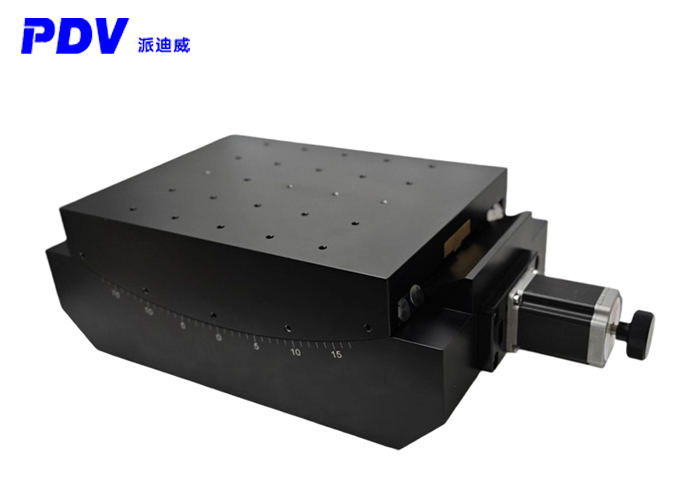

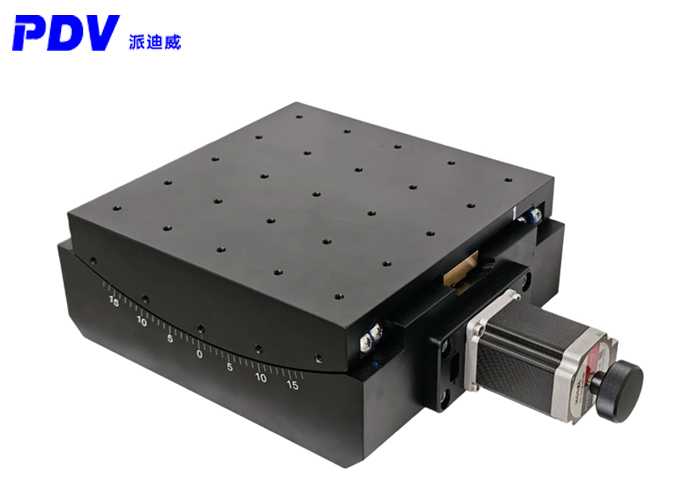

The main material of the electric swing slide table is hard aluminum alloy
The surface is treated with black anodizing, presenting a generous and beautiful appearance
It adopts precision worm gear drive and arc-shaped V-shaped guide rails for guidance
High strength, strong load capacity and good durability
Product parameters:

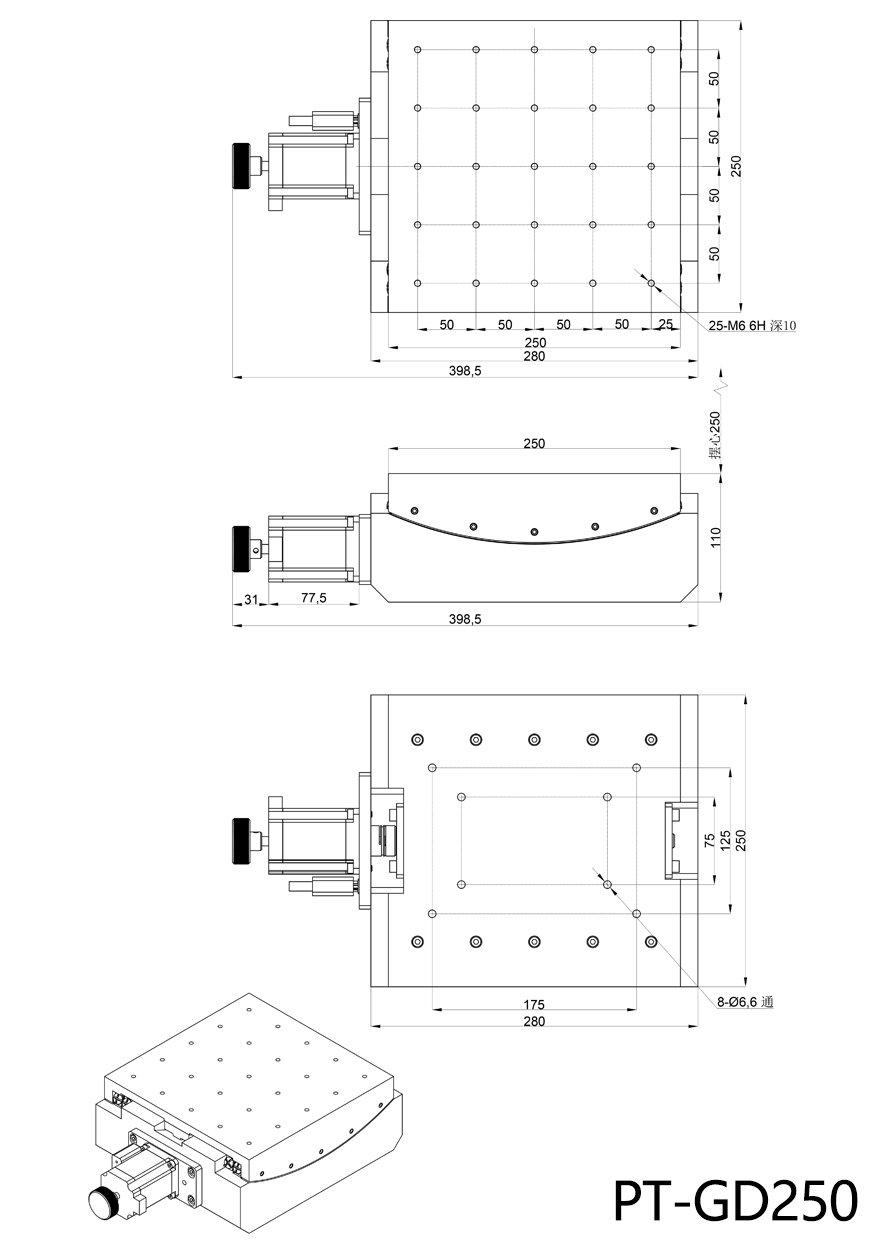

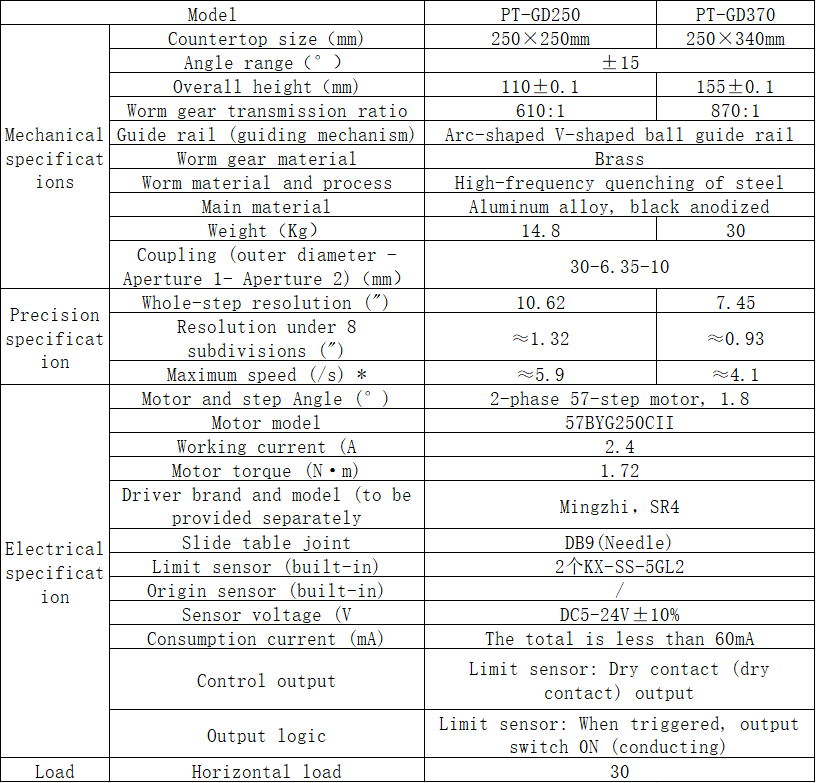

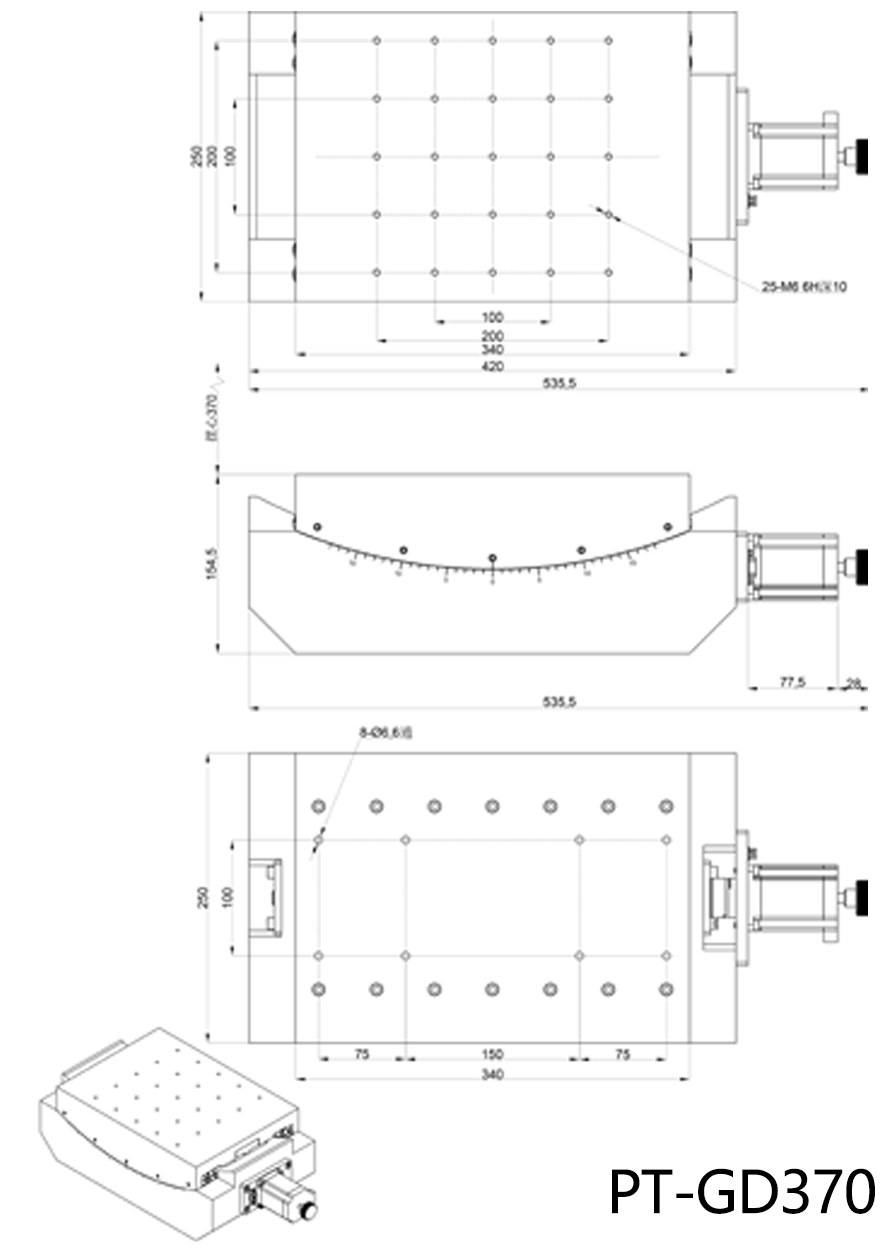

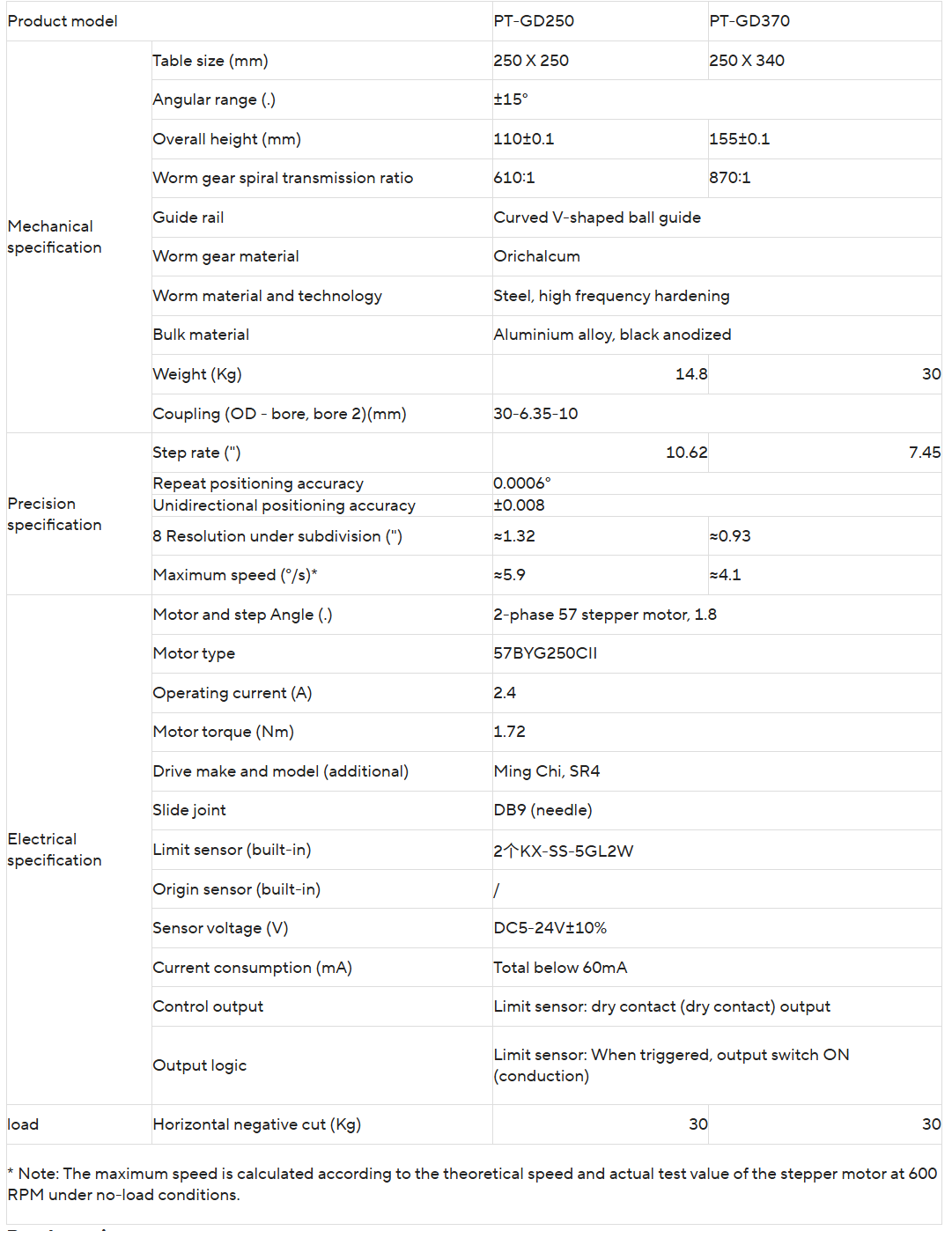

| Model number | PT-GD250 | PT-GD370 | |
| Mechanical specifications | Table surface size (mm) | 250 X 250 | 250 X 340 |
| Angle range (°) | ±15° | ||
| Overall height (mm) | 110±0.1 | 155±0.1 | |
| Worm gear transmission ratio | 610:01:00 | 870:01:00 | |
| Guide rail (guiding mechanism) | Curved V-shaped ball guide rail | ||
| Worm gear material | Brass | ||
| Worm material and processing method | Steel material, high-frequency quenching | ||
| Main body material | Aluminum alloy, black anodized finish | ||
| Self-weight (kg) | 17.6 | 30 | |
| Coupling (outer diameter - hole diameter, hole diameter 2) (mm) | 30-6.35-10 | ||
| Precision specification | Step division rate ("" ) | 10.62 | 7.45 |
| Resolution at 8 subdivisions ("" ) | ≈1.32 | ≈0.93 | |
| Repeatability positioning accuracy | 0.0006° | ||
| One-way positioning accuracy | ±0.008 | ||
| Maximum speed (°/s)* | ≈5.9 | ≈4.1 | |
| Electrical specifications | Motor and step angle (.) | 2-phase 57-step motor, 1.8 | |
| Motor model | 57BYG250CII | ||
| Working current (A) | 2.4 | ||
| Motor torque (Nm) | 1.72 | ||
| Drive manufacturer and model (included separately) | Mingzhi，SR4 | ||
| Slide stage connector | DB9（Needle） | ||
| Limit sensor (built-in) | 2个KX-SS-5GL2W | ||
| Origin sensor (built-in) | / | ||
| Sensor voltage (V) | DC5-24V±10% | ||
| Consumption current (mA) | Total: less than 60mA | ||
| Control output | Limit sensor: Dry contact (dry contact) output | ||
| Output logic | Limit sensor: When triggered, the output switch turns ON (conducts) | ||
| Load | Horizontal negative load (Kg) | 30 | 50 |
| *Note: The maximum speed is calculated based on the theoretical speed of 600 revolutions per minute for the stepper motor and the actual test results, under no-load conditions. | |||
