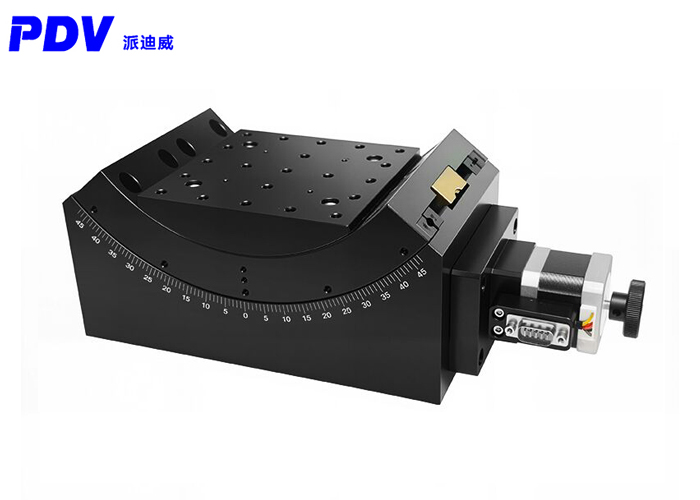

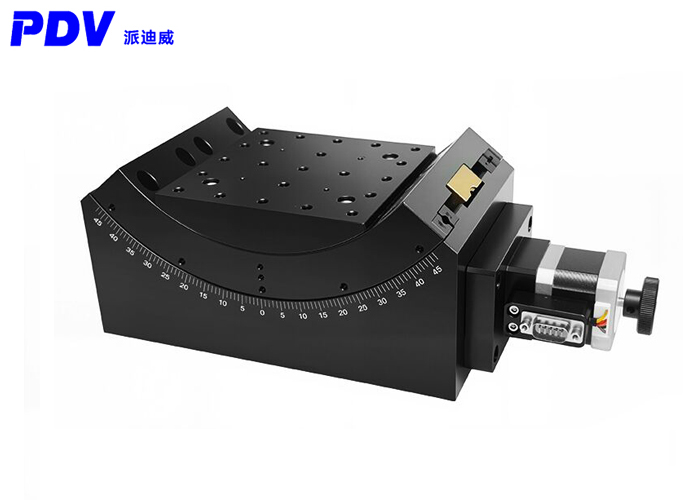

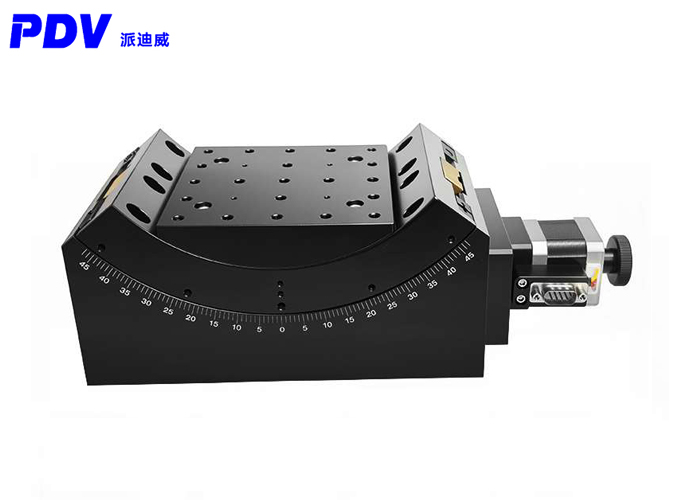

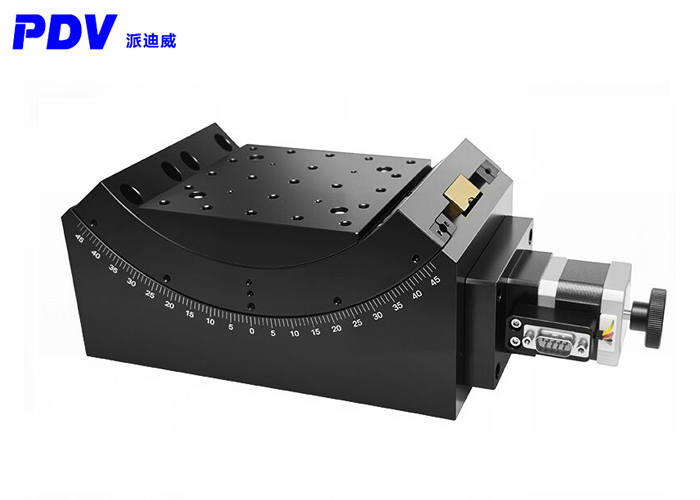

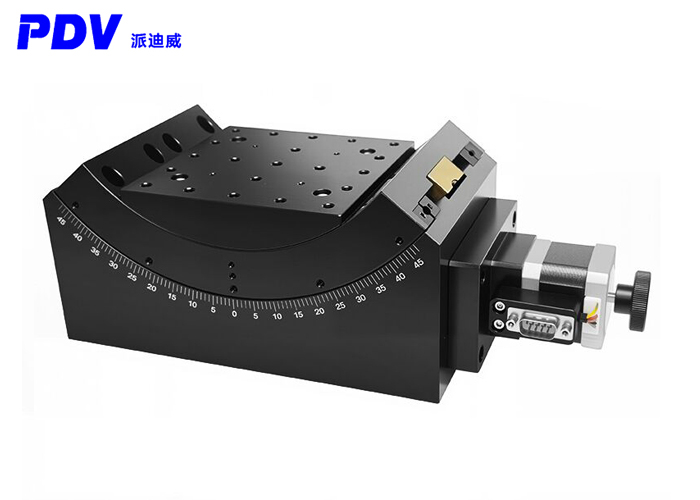

Product Name: PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table

Inquire Now Next Product
Share
Specification:

Product parameters

ModelPT-GD216
Angle range±45°
Countertop size120×216mm
Transmission ratio250∶1
Rotation center height96+-0.2 mm
DriveWorm gear and worm module 1
Guide rail formCrossed roller guide rail
Stepper motor (1.8°42BYG
Main materialsAluminum alloy
Surface treatmentAnodizing turns black
Central bearing30kg
Self-quantity2.45kg
Resolution≈0.005°≈18″（No subdivision）
≈1″（20Subdivision）
Rotation center accuracy0.03 mm
Speed7°/sec
Repeat positioning accuracy±3″
Positioning accuracy (optional grating)±8″
Empty return±3″
Lost step3″



Product details:

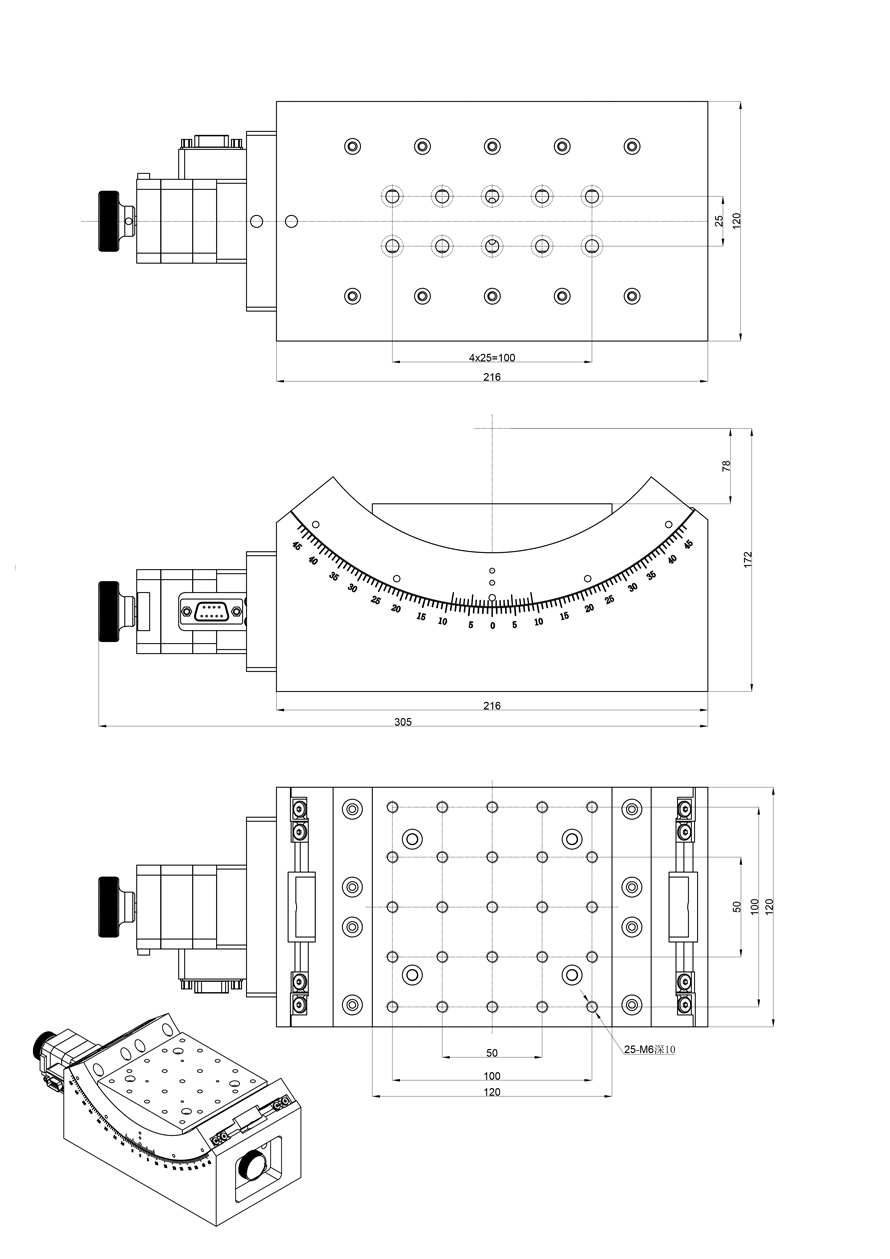

Product size

PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table

Service:
PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
  • PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
  • PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
  • PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
  • PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
PT-GD216 electric Angle position table ±45° adjustable table pitch 45° table
FAQ:
1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1
2 Q: The displacement table has a remote and proximal limit switch.
3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.
4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.
stepper motor. Step motor drive card is purchased separately.
Note:

    We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
