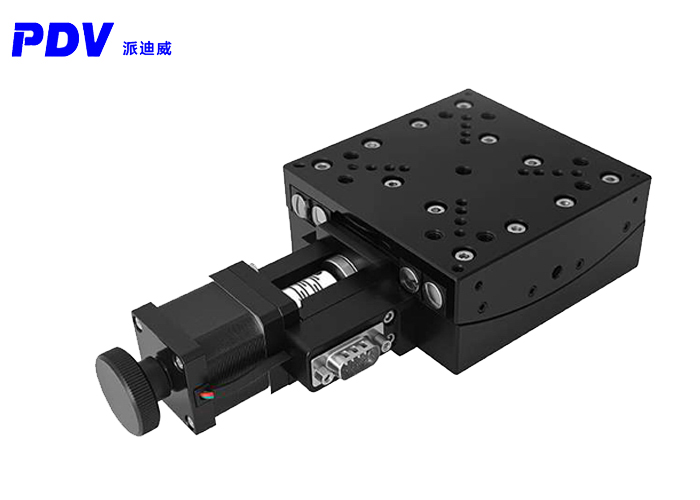

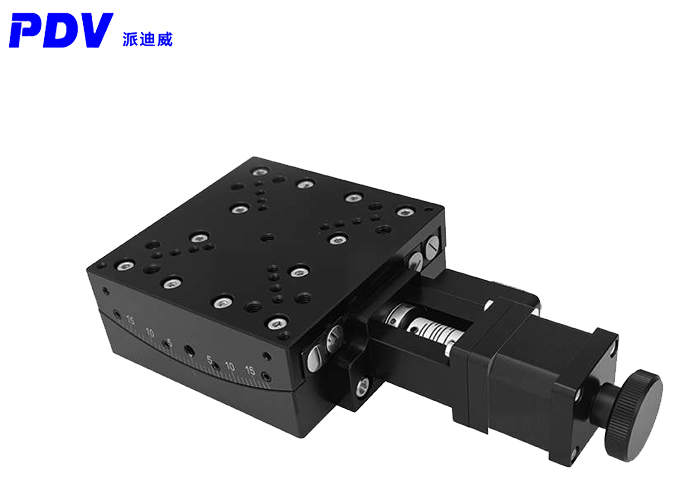

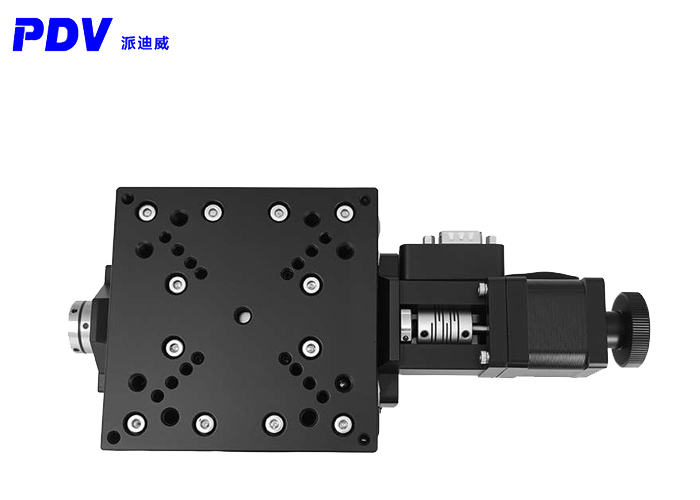

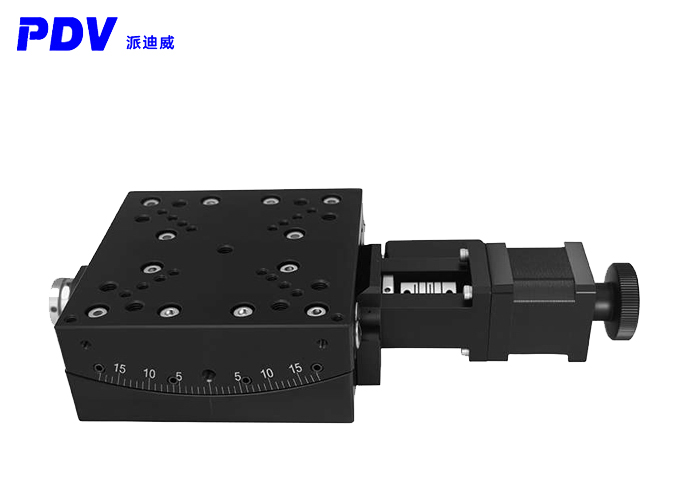

PT-GD395 precision electric Angle position table 15° Angle arc swing table for Sale - Motorized Goniometer Stages, Electric Goniometer Platform, Motorized Goniometer Stages Manufacturer

Specification:

Product parameters：

Model	PT-GD395
Countertop size (mm	100×100mm
From the countertop to the center of the pendulum	95
Adjustment range	±15°
Reading (°	1°
Distribution rate (°	0.005°
Load-bearing capacity (kg	20kg
Guide rail structure	Crossed ball arc rail
Self-weight (kg	1.5
Stepper motor	35 stepper motor
Step Angle	1.8°
Phase current	0.8A

Product details:

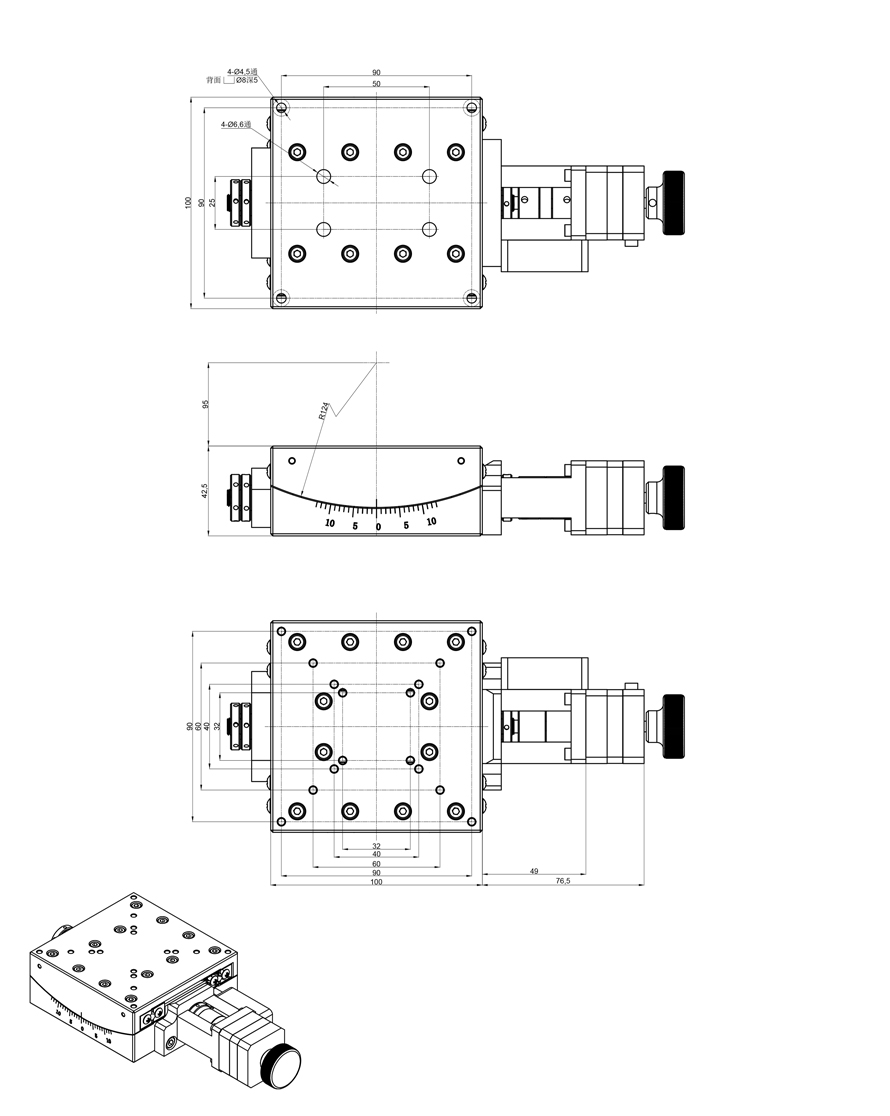

Product size：

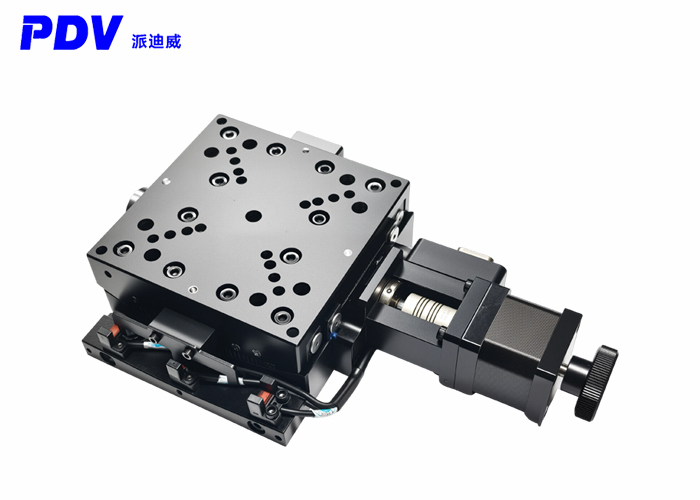

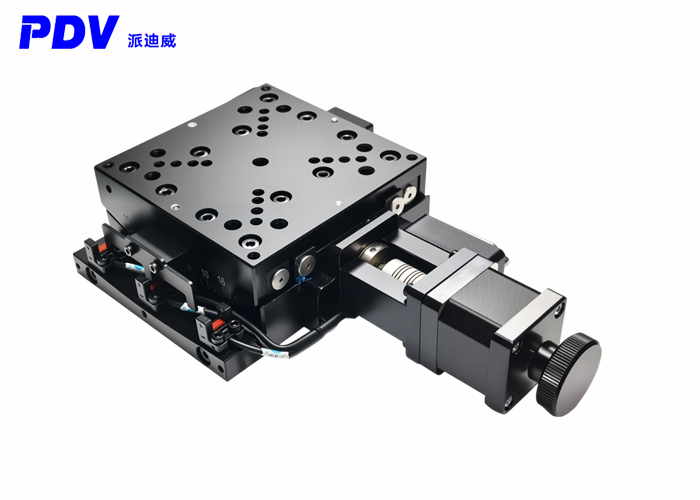

PT-GD395 precision electric Angle position table 15° Angle arc swing table

Service:

PT-GD395 precision electric Angle position table 15° Angle arc swing table

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
