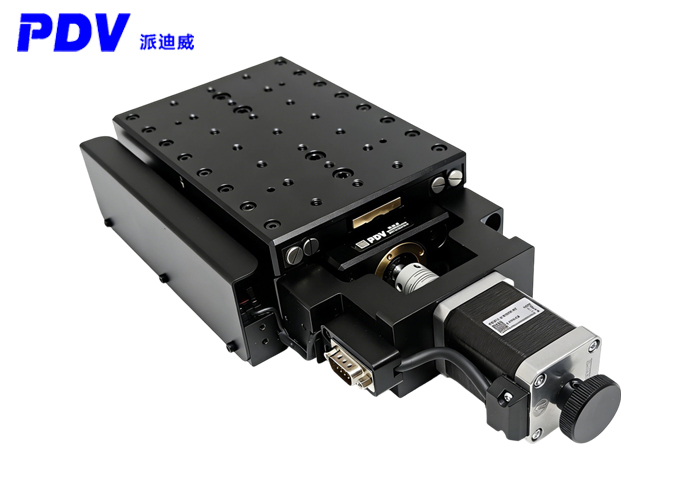

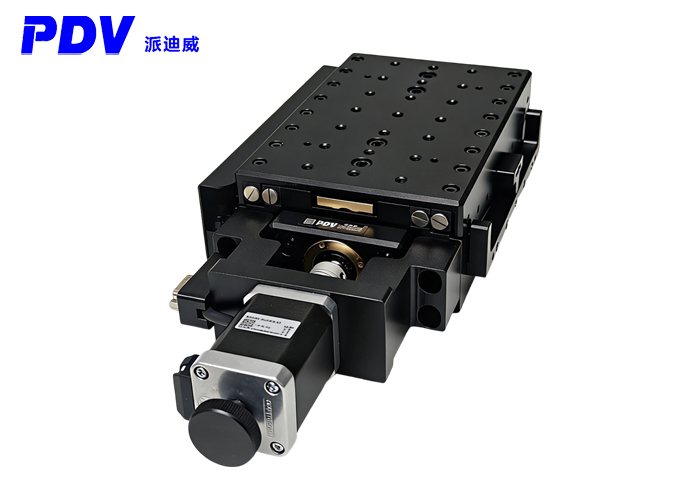

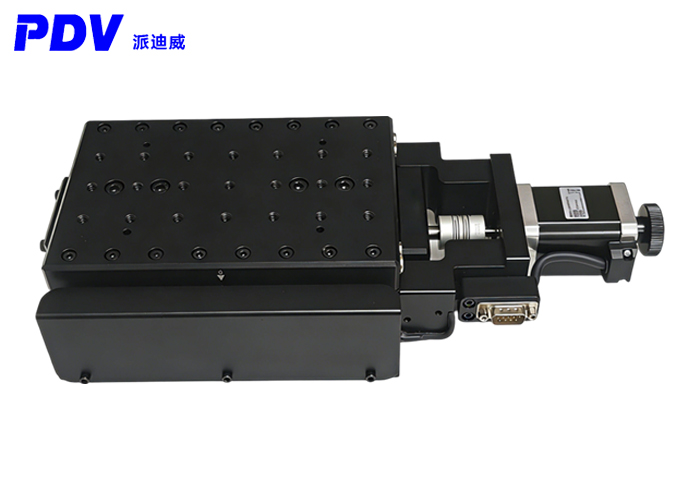

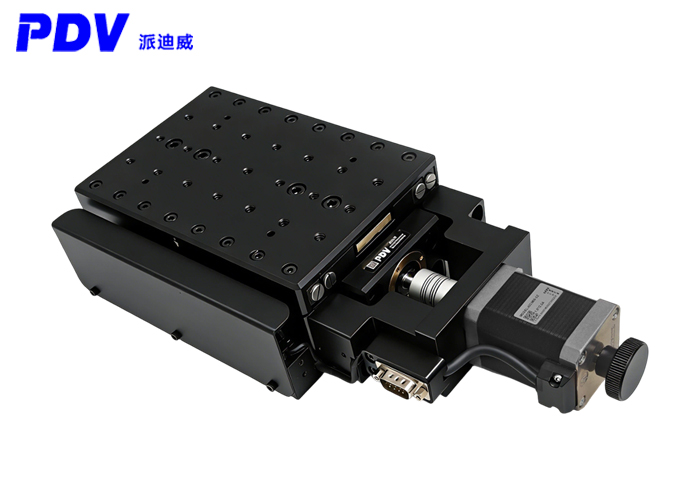

Product Features:
It adopts precise gear and worm gear drive, with high positioning accuracy.
It uses arc-shaped V-type ball guide rails, effectively controlling the spatial center position deviation during rotation.
The size is moderate, facilitating its combination with other electro-mechanical stage products.
The adjustment angle is large, suitable for most adjustment fields.
It is equipped with a two-phase stepper motor, with self-locking function, stable and reliable.
Product Specifications:
| Model | PT-GD195 | |
| Mechanical specifications | Table surface size (mm) | 120×180 |
| Angle range (°) | ±15 | |
| Overall height (mm) | 65±0.1 | |
| Worm gear transmission ratio | 450:1 | |
| Guide rail (guiding mechanism) | Curved V-shaped ball guide rail | |
| Worm gear material | Brass | |
| Worm gear material and processing method | Steel, high-frequency quenching | |
| Main material | Aluminum alloy, black anodized treatment | |
| Body Weight (Kg) | 4.3 | |
| Coupling (Outer Diameter - Hole Diameter 1 - Hole Diameter 2) (mm) | 2020-5-8 | |
| Precision specification | Step resolution (") | 14.4 |
| Resolution at 8 subdivisions (") | ≈1.8 | |
| Maximum speed (°/s)* | 8 | |
| Electrical specifications | Motor and step angle (°) | 2-phase 42-step stepper motor，1.8 |
| Motor model | 42M-1.8D | |
| Working current (A) | 1.7 | |
| Motor torque (N·m) | 0.42 | |
| Driver brand and model (supplied separately) | Shinano Electric Machinery | |
| Slide stage connector | DB9(Needle) | |
| Limit sensor (built-in) | 2unitKX-EE-SX672 | |
| Origin sensor (built-in) | 1 unitPI-ITR8104 | |
| Sensor voltage (V) | DC5-24V士10% | |
| Consumption current (mA) | Total: less than 60mA | |
| Control output | Limiting sensor: Dry contact (dry contact) output; Zero position photoelectric sensor: NPN open collector output; Residual voltage below 8mA at DC 5-24V and below 0.3V (when load current is 2mA) | |
| Output logic | Limiting sensor: When triggered, the output switch turns ON (conducts); Zero position photoelectric sensor: When detecting (blocking), the transistor outputs OFF (non-conducts) | |
| Load | Horizontal load (kg) | 20 |

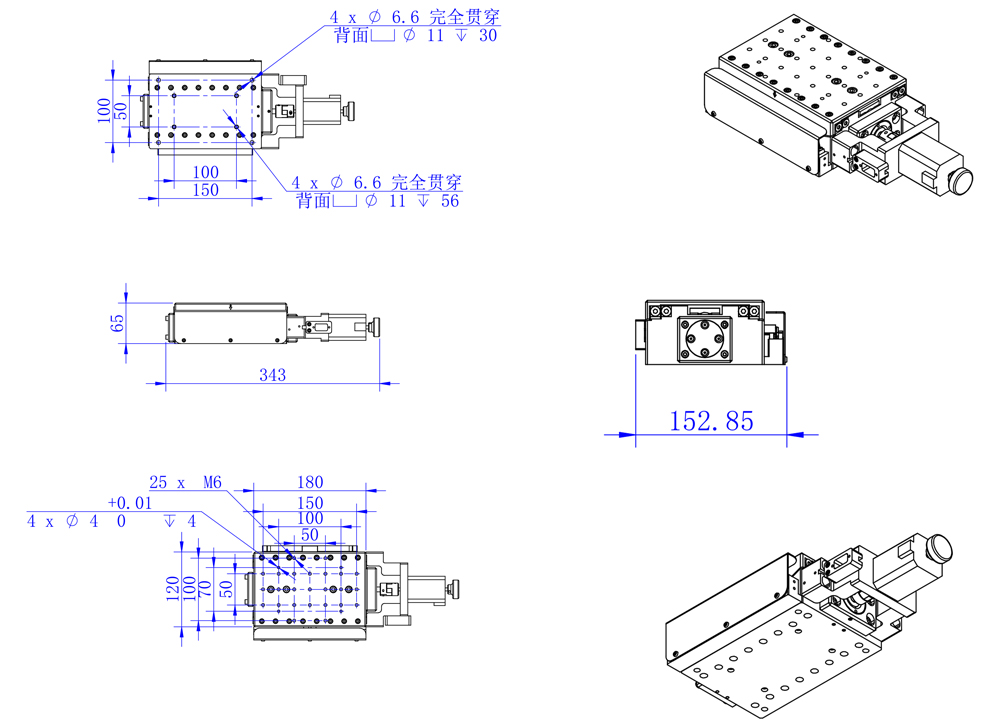

Product size:
