Product Specifications:
| Model number | PT200-175 | |
| Main material | Aluminum alloy | |
| Table size (mm) | 200×200 | |
| Center height (distance between the center of the arc swing and the table surface) | 175 | |
| Travel distance (mm) | ±5° | |
| Transmission method | Screw rod | |
| Reduction ratio / Angle A | A=arcsin(1/201) | |
| Resolution (μm) Measurement | 0.005 | |
| Repeatability positioning accuracy (mm) | 0.005 | |
| Motion perpendicularity (mm) | 0.03 | |
| Motion parallelism (mm) | 0.03 | |
| Motor | 57 stepper / 400w servo | |
| Maximum speed (mm/s) * | 5-20 | |
| Horizontal load (Kg) | 40kg | |
| Railway type | Cross guide rail | |
| Self-weight (Kg) | 9.8kg | |
| DB9Interface | Introduction1 | 24V+ |
| Introduction2 | 24V- | |
| Introduction3 | Positive limit | |
| Introduction4 | Midpoint | |
| Introduction5 | Negative limit | |
| Introduction6 | A+ | |
| Introduction7 | A- | |
| Introduction8 | B+ | |
| Introduction9 | B- | |

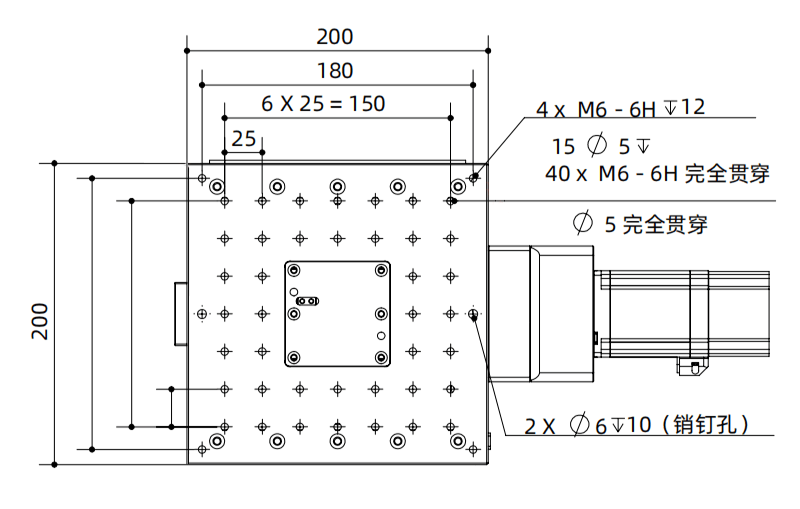

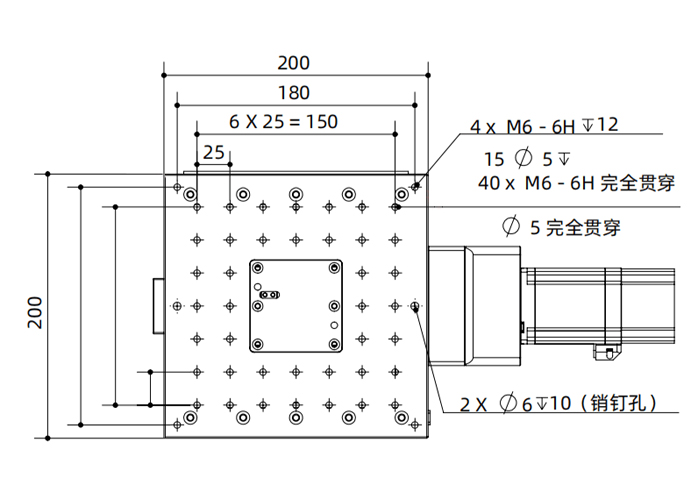

Product size:
