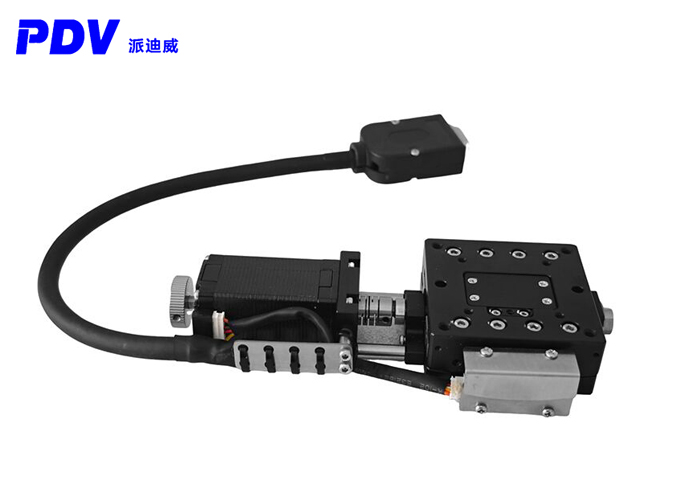

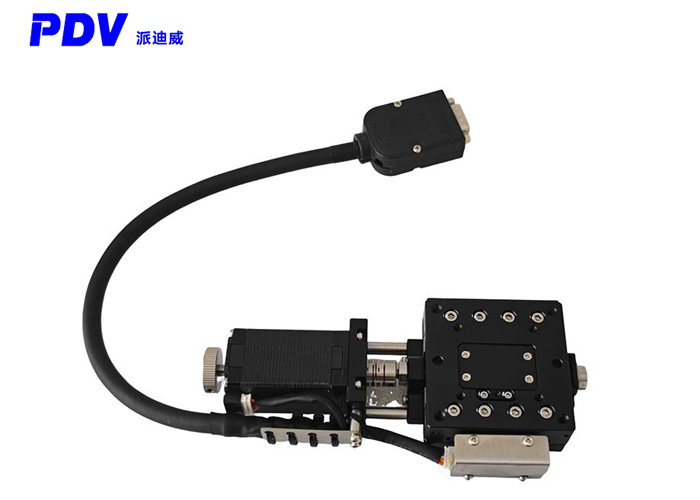

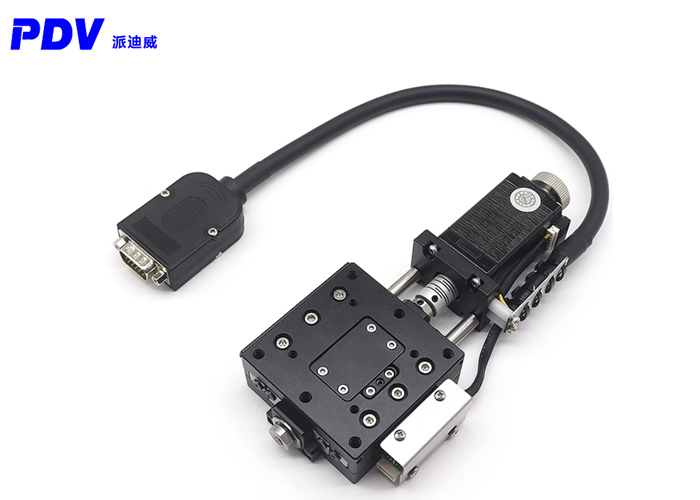

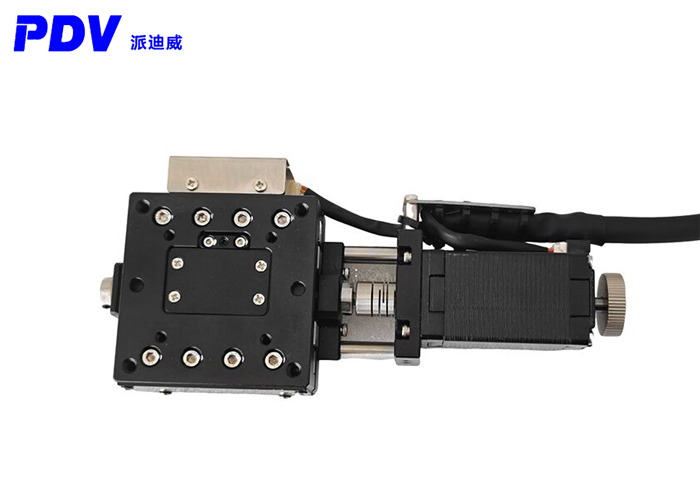

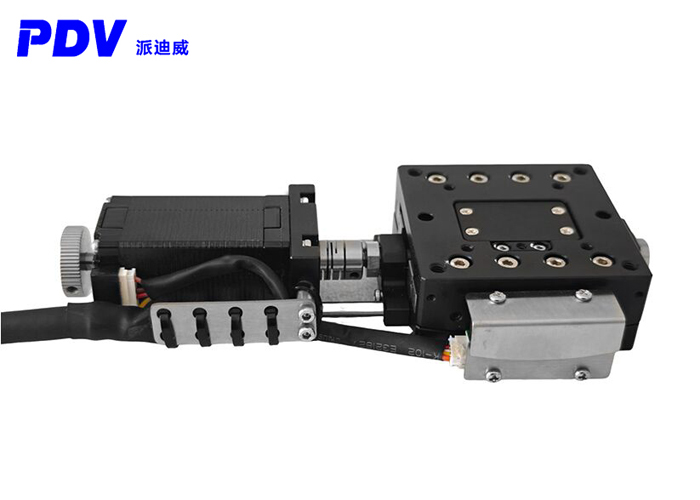

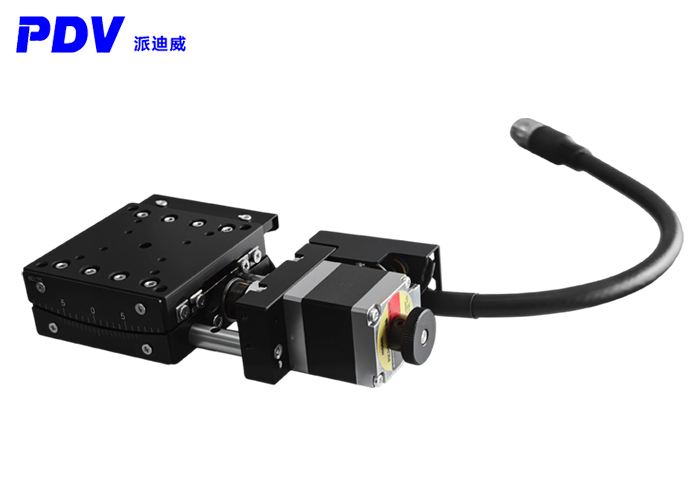

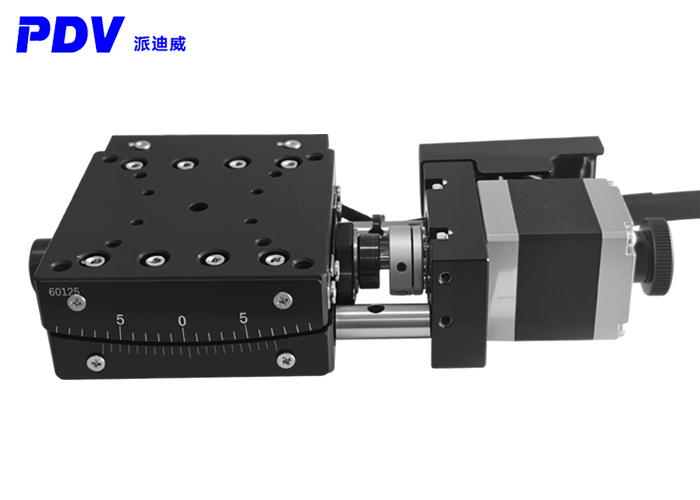

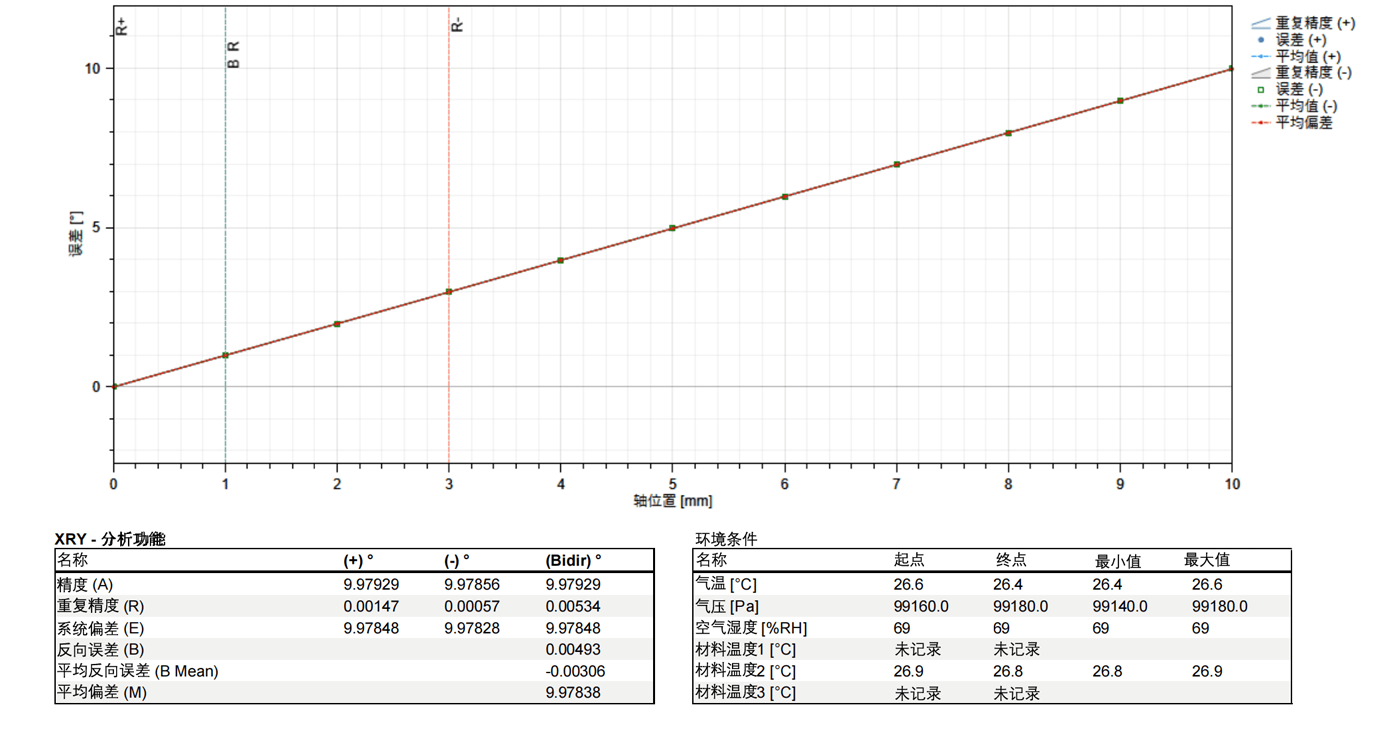

| Model | PT-GD510 | PT-GD508 | PT-GD506 | ||
| Mechanical specifications | Move the Angle | ±10° | ±8° | ±6° | |
| Slide table size | 50×50mm | ||||
| Guide rail | Crossed roller guide rail | ||||
| Driving mode | Grind the ball screw，φ4，Lead1mm | ||||
| Main material and surface treatment | Aluminum alloy - black anodized | ||||
| weight | Approximately0,3kg | ||||
| Dimensional tolerance | Thickness | 18±0.2mm | |||
| Rotation center height | 50±0.2mm | 68±0.2mm | 86±0.2mm | ||
| Swing accuracy of the rotation center | Within 0.01mm | ||||
| Precision specification | Resolution (Pulse) | 0.0021° | 0.0016° | 0.0013° | |
| Maximum speed | 31.5°/sec | 23.5°/sec | 19°/sec | ||
| Repeat positioning accuracy | Within ±0.005° | ||||
| Load | 3kgf | ||||
| Idle rotation | Within ±0.005° | ||||
| Electrical specifications | Motor | C: Two-phase stepping motor 28 frame (Shinano) | |||
| Sensor | Model | Micro photoelectric sensor EE-SX4320(0MR0N)< One origin, two limits | |||
| Control output | The open-circuit collector output of the MPN is below DC24V 8mA, and the residual voltage is below 0.3V (when the load current is 2mA). | ||||
| Working current | <60mA | ||||
| Output logic | When detecting (blocking light) : The output transistor is OFF(non-conducting) | ||||
| Outgoing line interface | HRS12P male terminal (lead-out length approximately 200mm) | ||||

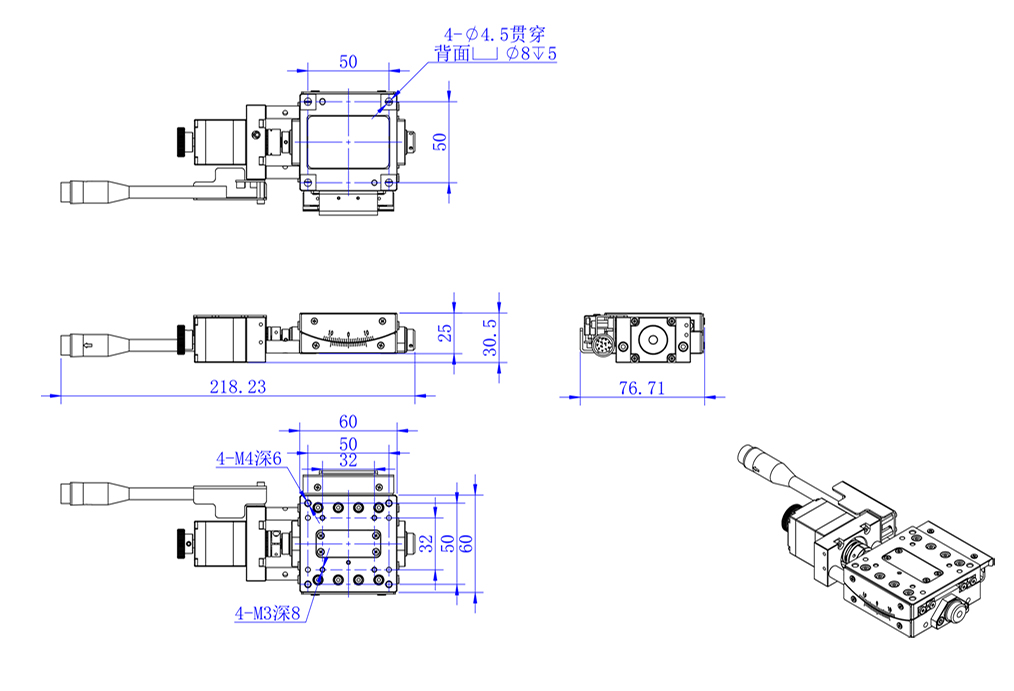

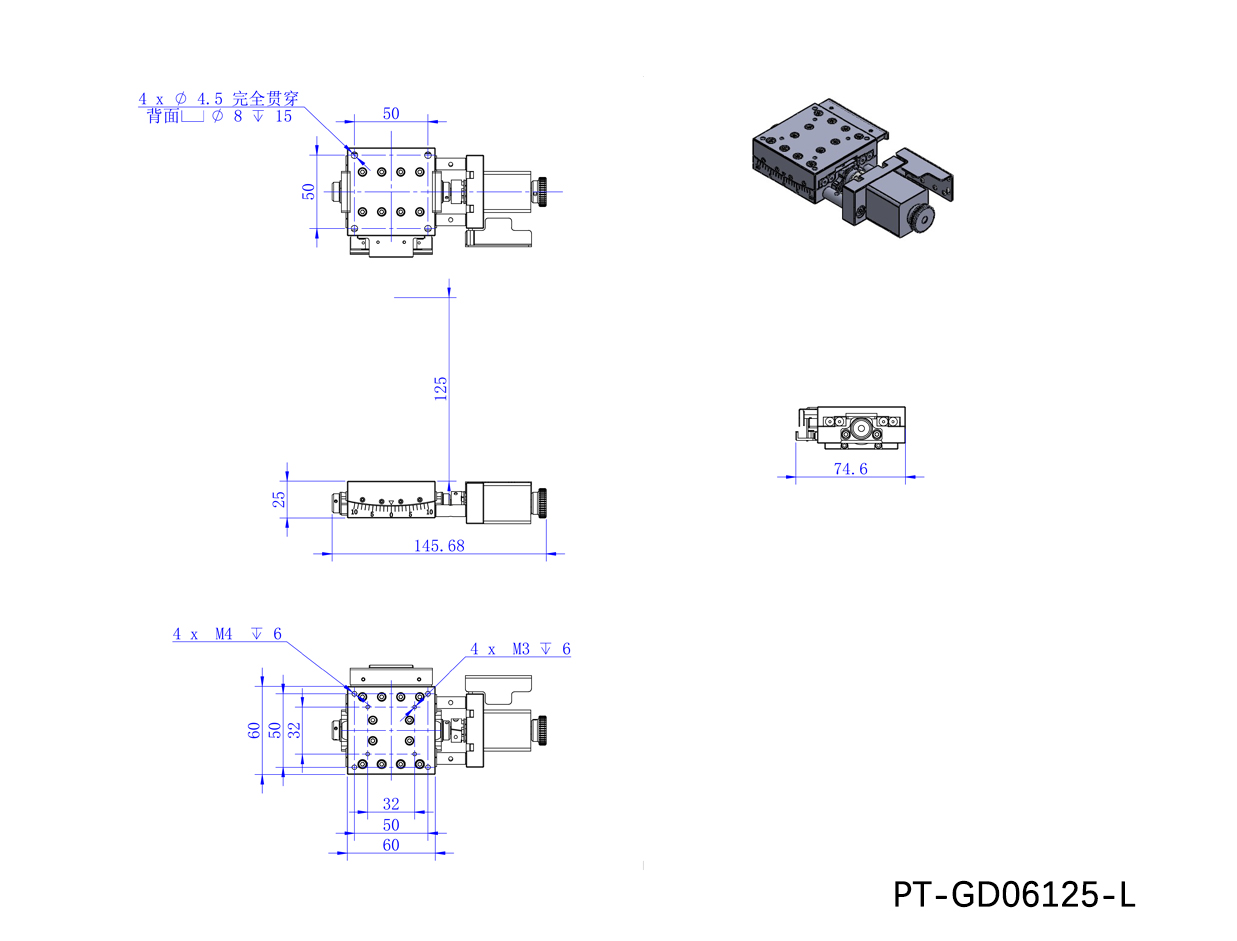

产品尺寸：
