Manufacture The precision electric Angle position table has a maximum load of 150kg and a pitch of ±5° - Motorized Goniometer Stages, Electric Goniometer Platform, Motorized Goniometer Stages Manufacturer

Specification:

Product parameters

Model	PT-GD230	PT-GD280
Countertop size	230×230mm	280×280mm
Swing range	±5°	±5°
Transmission ratio	1:621	1:445、1:345
Main material	Aluminum alloy
Guide rail form	Cross-shaped guide rail
Unidirectional positioning accuracy	0.01°
Repeat positioning accuracy	0.005°
Swing center accuracy	0.1mm
Limit position sensor	yes
Connector	DB15 Serial Port (female head)
Motor	no
Step Angle	1.8°
Input voltage	24v
Central bearing	40kg	150kg

Product details:

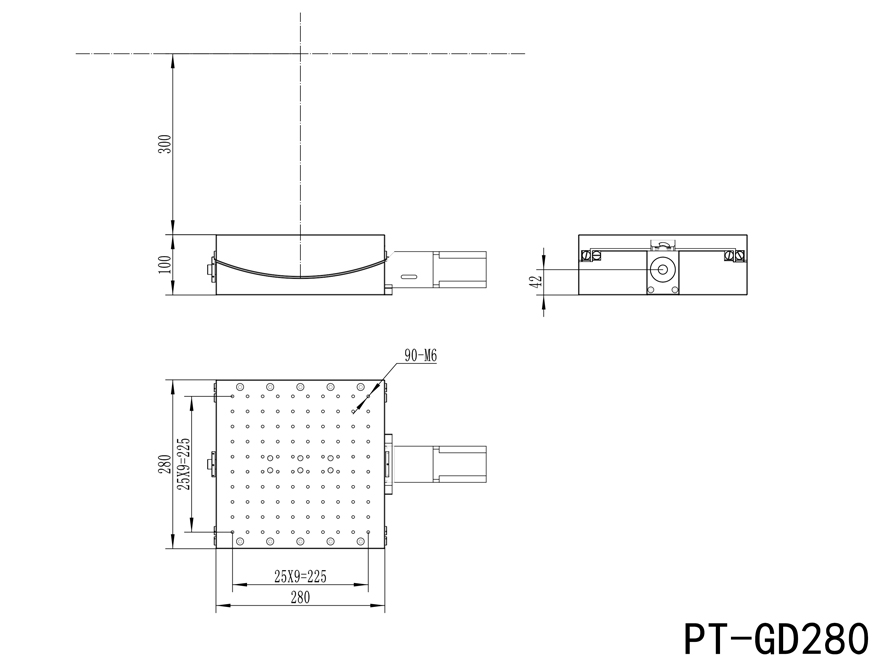

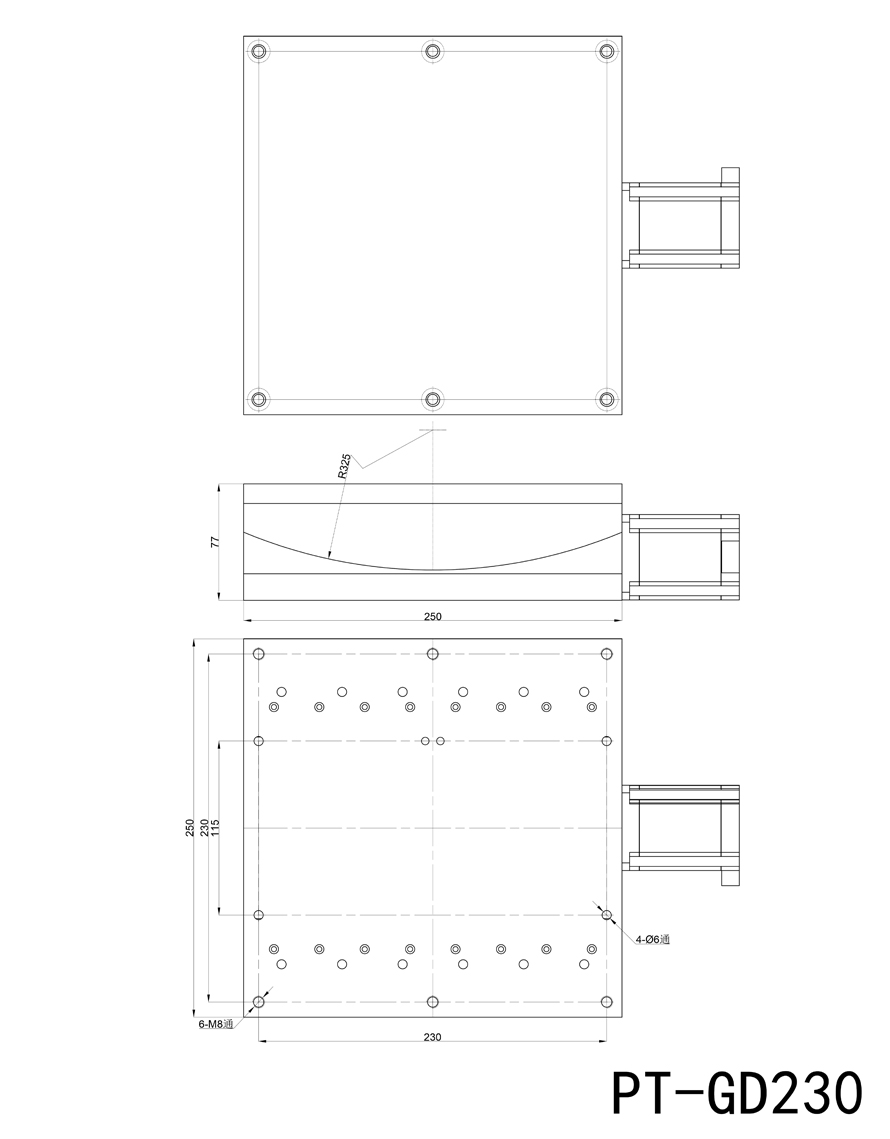

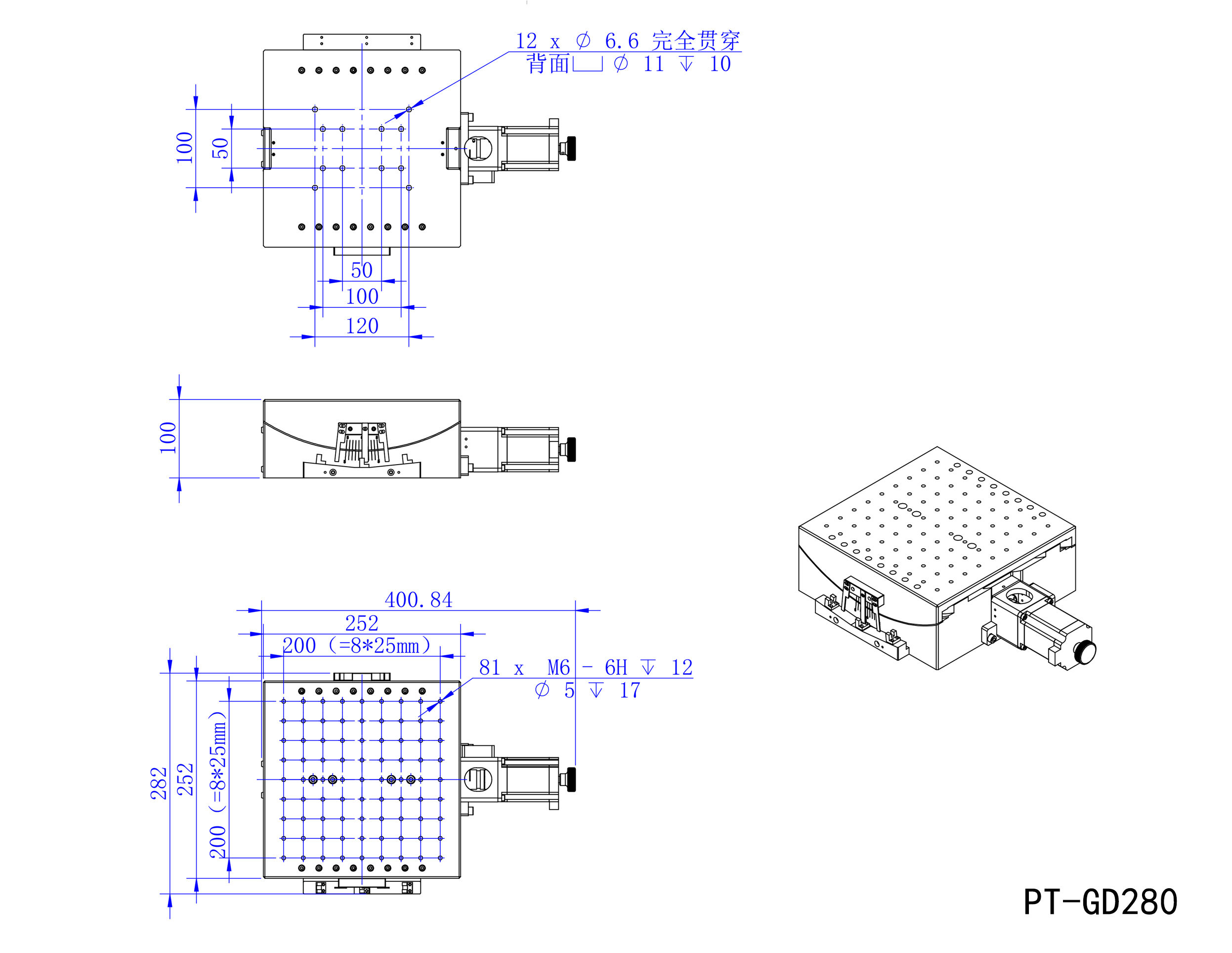

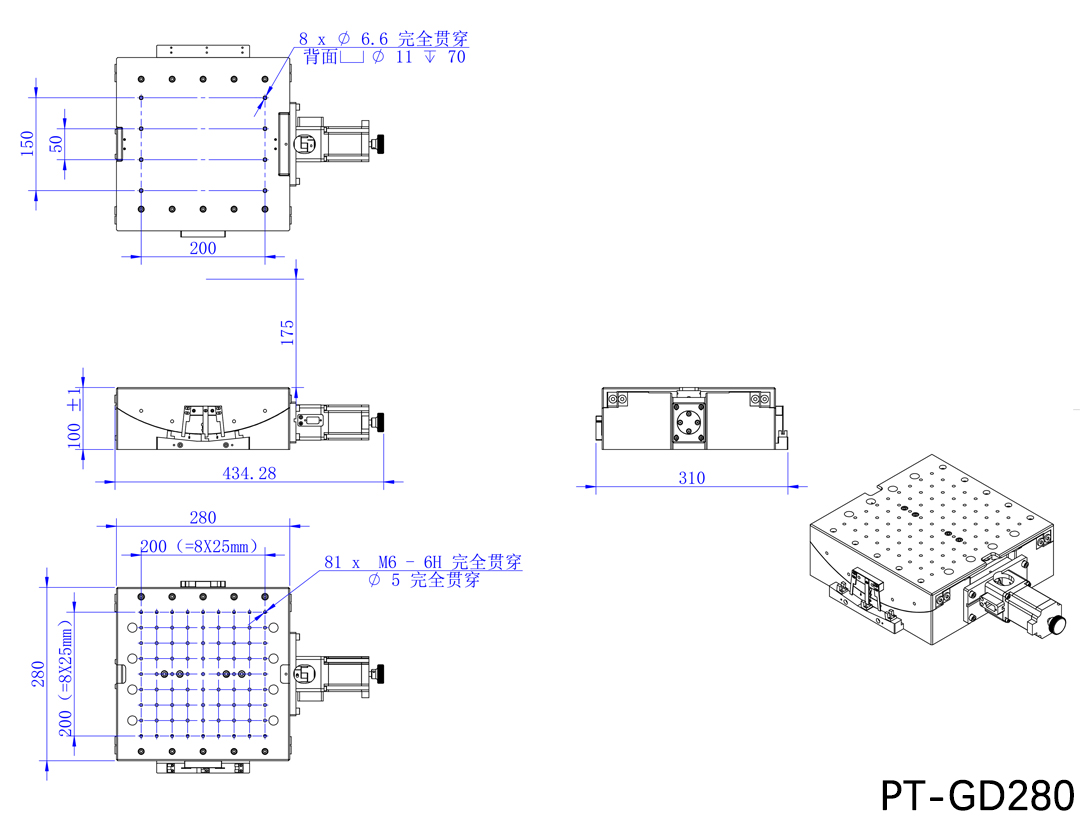

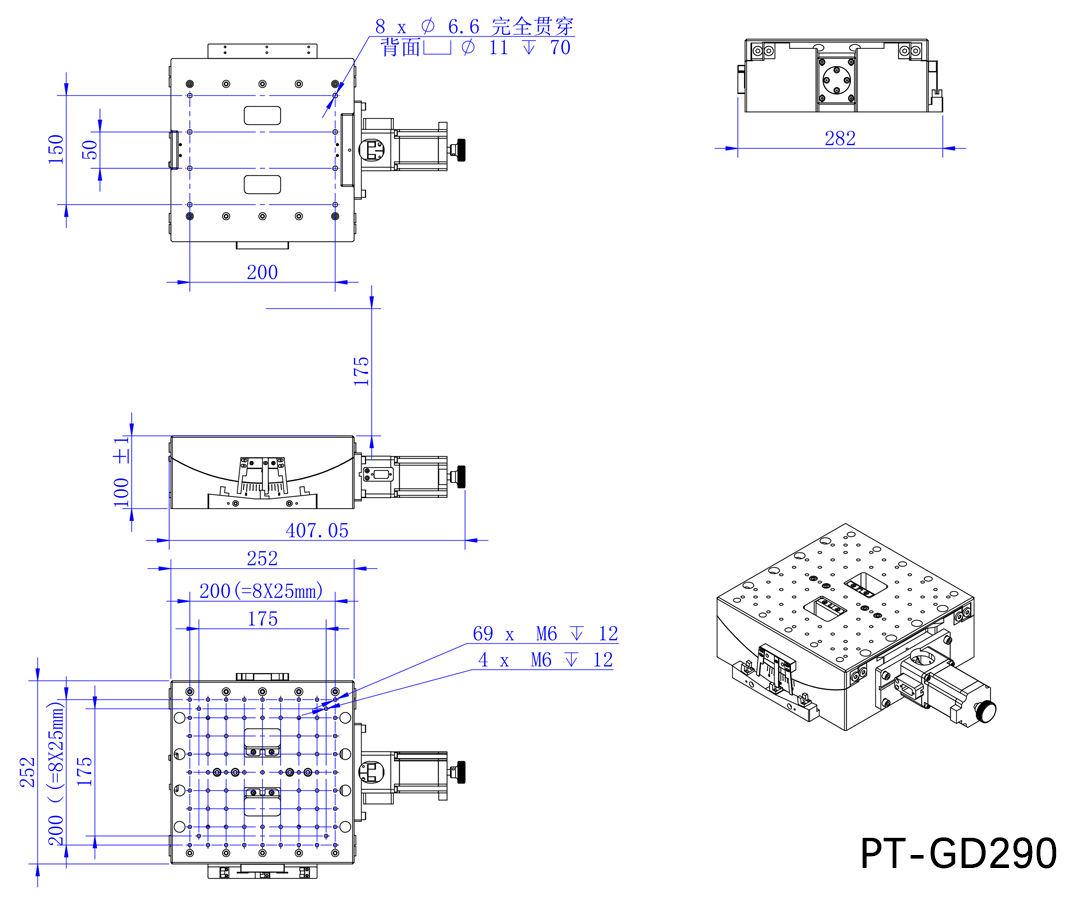

Product size

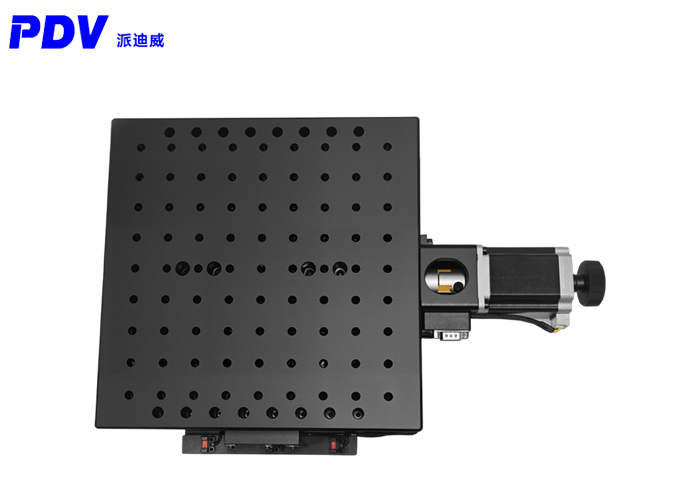

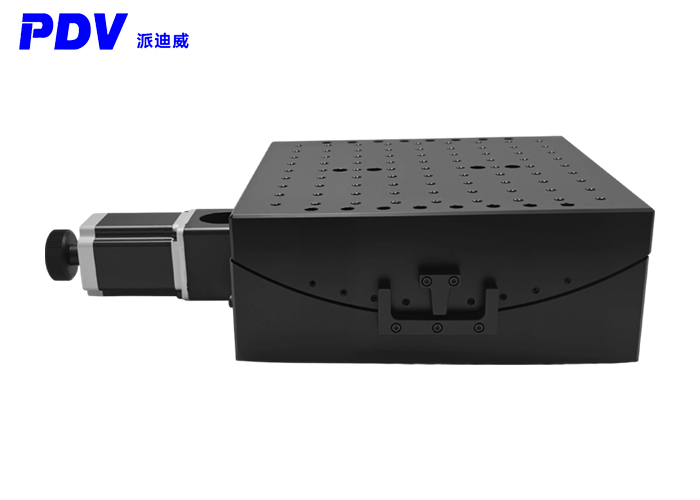

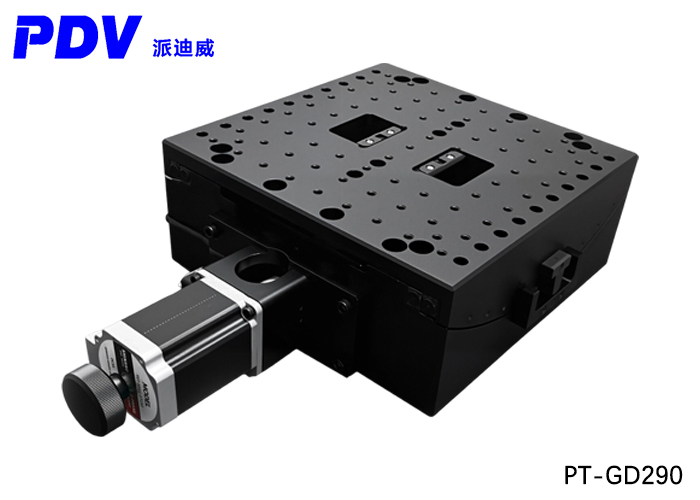

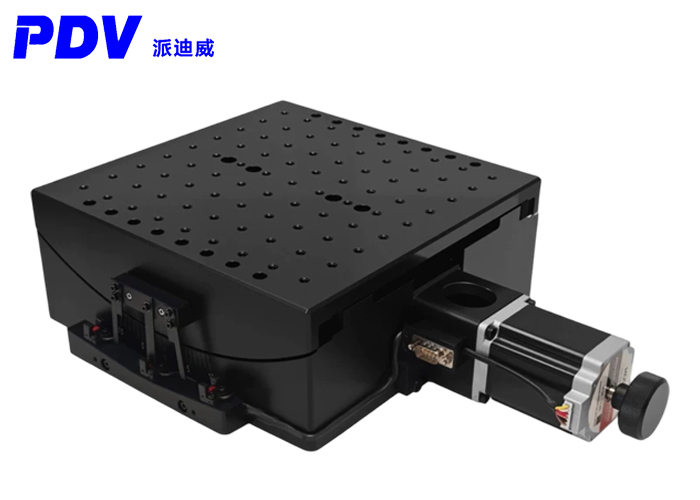

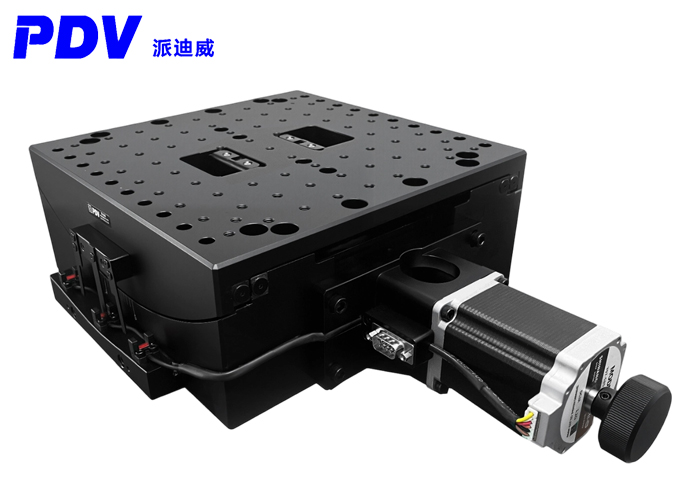

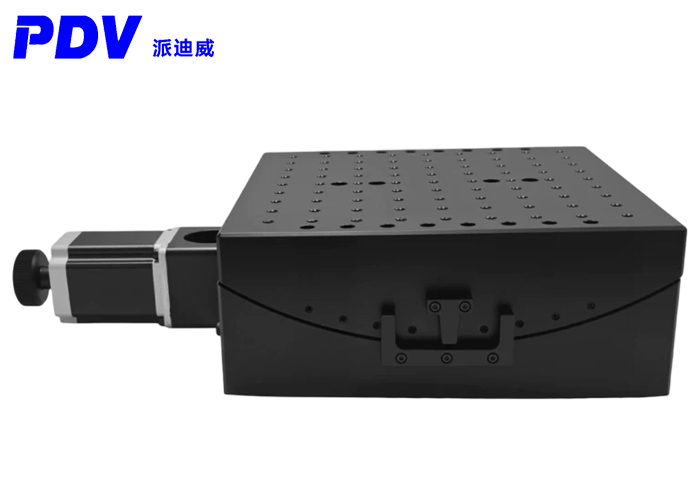

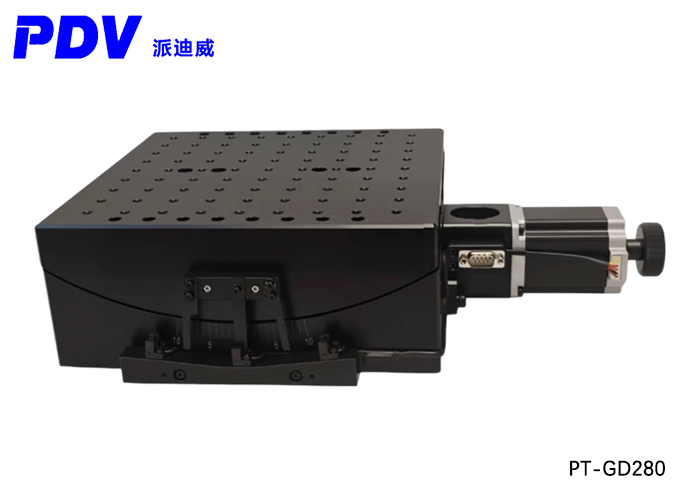

The precision electric Angle position table has a large load capacity of 150kg and a curvature table with a pitch of ± 5 degrees

Service:

The precision electric Angle position table has a maximum load of 150kg and a pitch of ±5°

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
