Product Name: PT-GD303 Electric Goniometer Platform

Share
Specification:

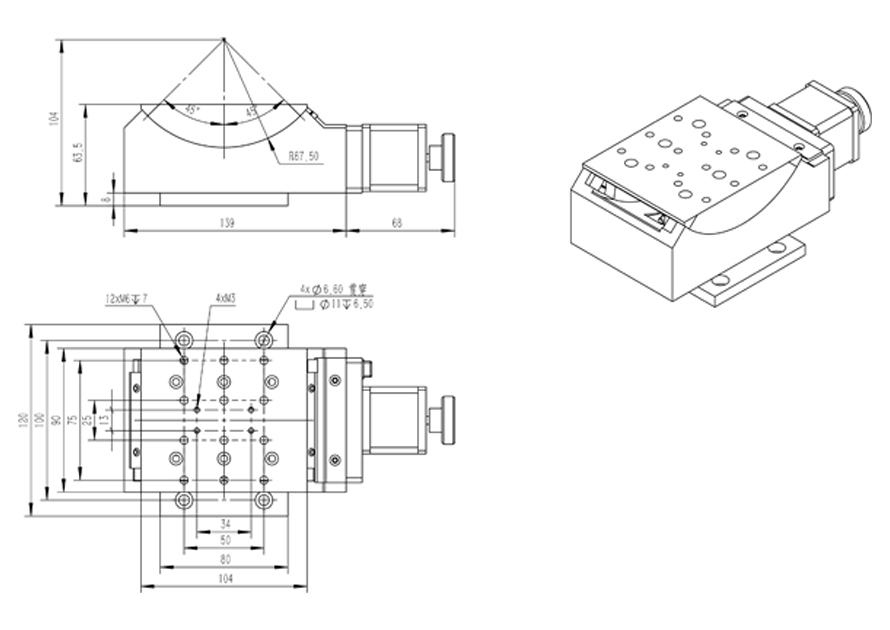

Structure Specifications

Item Number: PT-GD303

Rotation Range: ±45°

Platform: 90mm × 104mm

Drive Mechanism: Worm Gear

Travel Guide: Crossed Roller Bearing

Worm Gear Ratio: 280 : 1

Height of Rotation Stage: 96±0.2 mm

Stepper Motor (1.8°): 42BYG - Stepping  Motor with 2-Phases & 1.8° of Step Angle

Material – Finish: Aluminum Alloy -Anodized

Load Capacity: 10Kg

Dead Weight: 2.45kg


Accuracy Specifications

Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)

Rotation Center Deflection Accuracy: 0.03 mm

Velocity: 7°/sec

Repeatability: ±3”

Absolute Accuracy: ±8”

Backlash: ±3”

Lost Motion: 3″


Product details:

PT-GD303 Electric Goniometer Platform

Advantage:

.

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.


Service:
PT-GD303 Electric Goniometer Platform
  • PT-GD303 Electric Goniometer Platform
  • PT-GD303 Electric Goniometer Platform
  • PT-GD303 Electric Goniometer Platform
  • PT-GD303 Electric Goniometer Platform
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
PT-GD303 Electric Goniometer Platform
PT-GD303 Electric Goniometer Platform
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
