Product Model | PT-GD148 |
Platform Size | 150mm×150mm |
GuideForm | Cross Ball Guide |
Driving Mechanism | Precision Ball Screw (Lead 4mm) |
Trip | 20mm |
Stepper Motor (1.8 °) | Sst57D2121 |
Central Bearing | 30Kg |
Minimum Adjustment | 7.5μ(No Subdivision) |
Maximum Speed | 12mm/Sec |
Repeat Positioning Accuracy | 10μ |
Returned Empty | 10μ |
Lose Step | 2μ |
Weight | 4.7kg |
Main Material | Aluminium Alloy |
Surface Treatment | Anodizing Blackening |

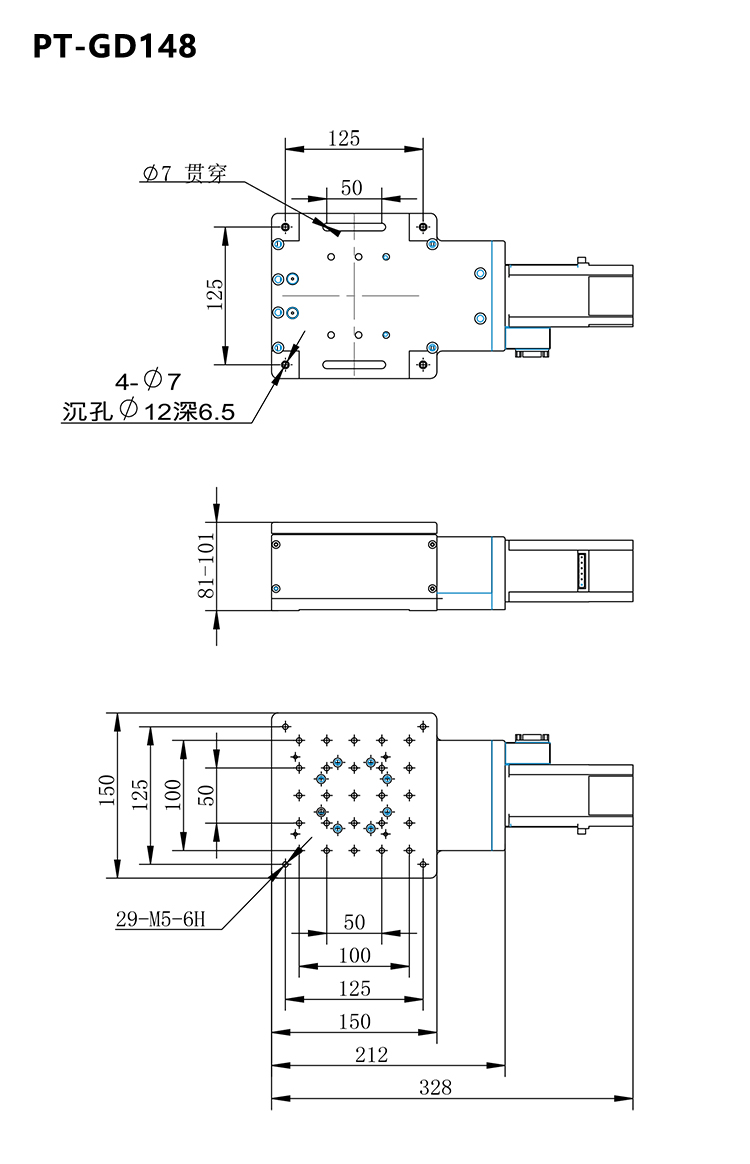

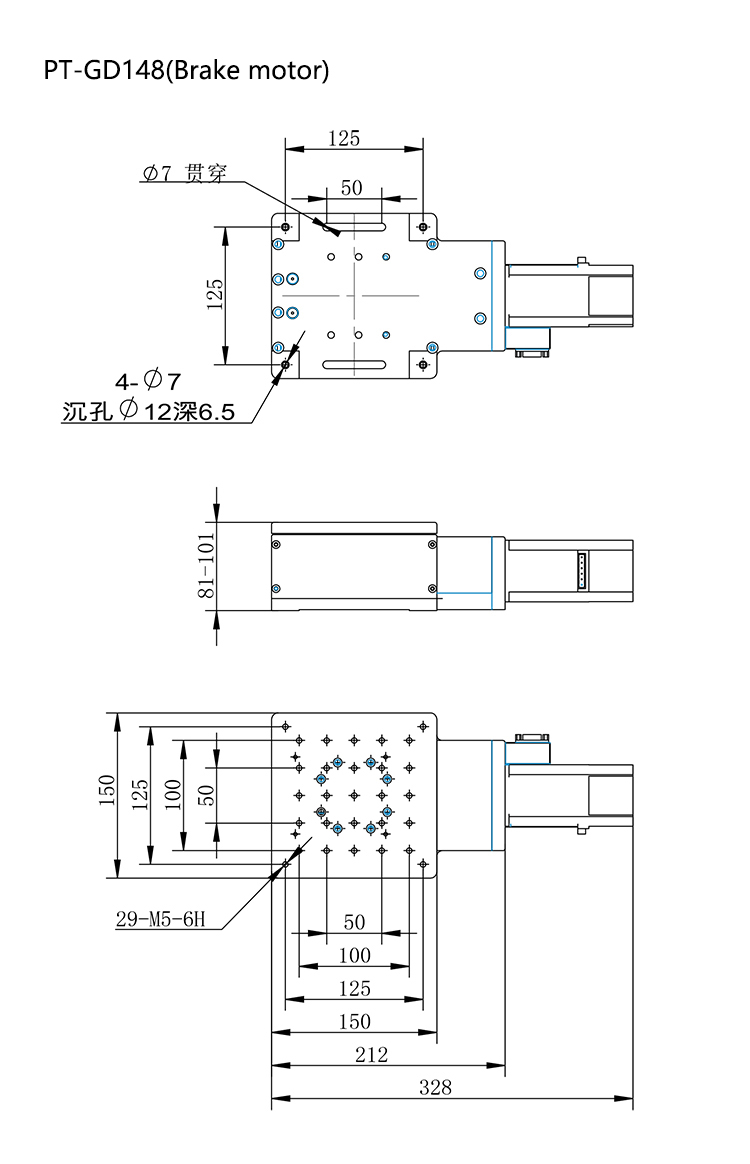

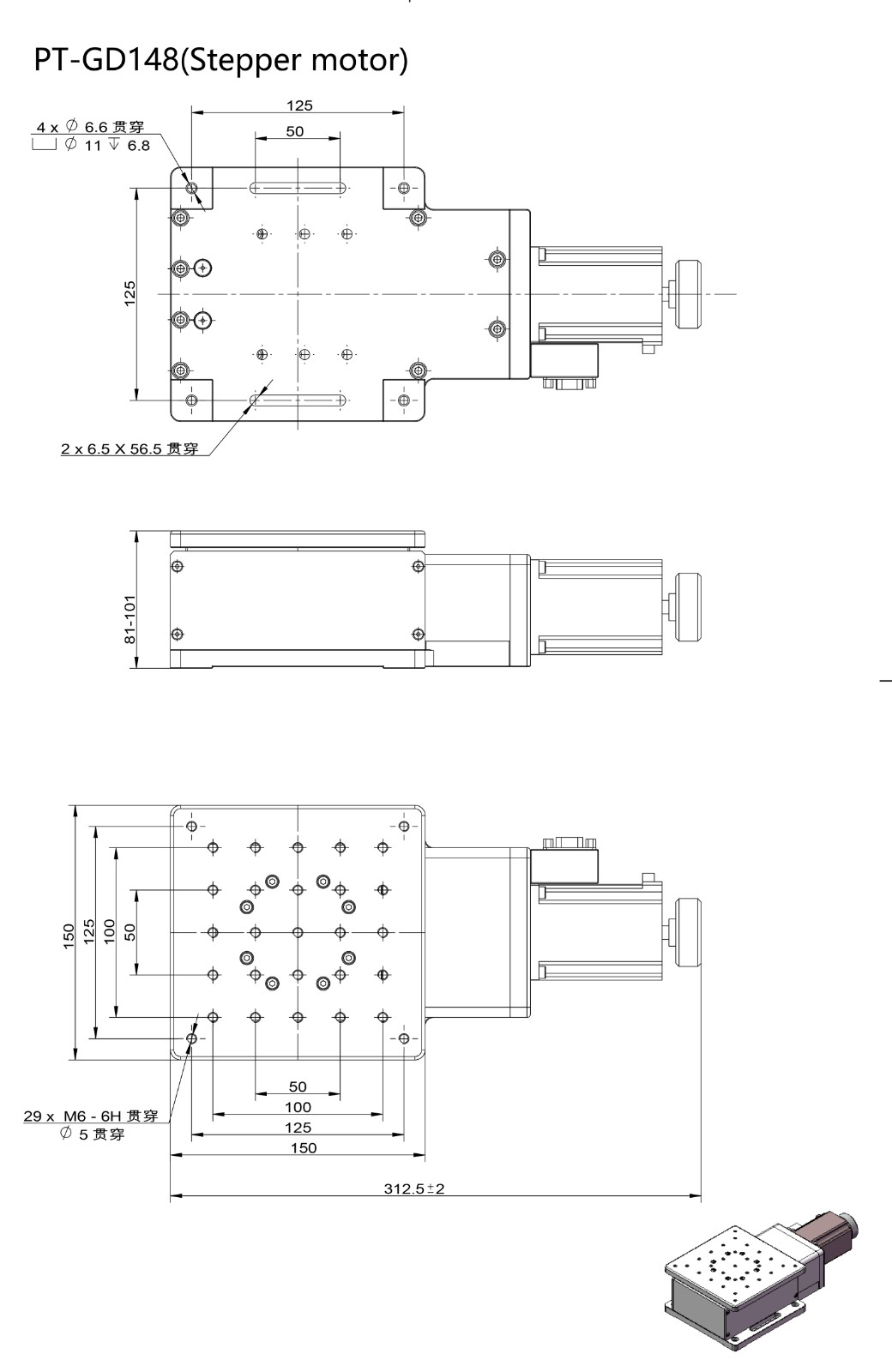

Product dimension drawing：
PDV integrates R&D, production, sales and service. We focus on product innovation capability, quality system and service platform construction.
For a long time, we have cooperated with domestic and foreign scientific research institutions to jointly tackle key problems, and constantly enriched product categories. Provide a service platform with transparent price, one-stop purchase and quick after-sales response, improve the efficiency of user R&D and production and optimize costs. The products are widely used in industrial automation testing, intelligent robots, intelligent transportation, automotive electronics, aerospace, optical communications, laser technology, medical equipment and other fields.
With the brand concept of "making scientific and technological work more efficient!", the company creates more valuable optical mechanical tools. We adhere to the values of innovation, diligence, responsibility and seriousness.
PDV main products: electric displacement table, manual displacement table, optical adjustment frame, optical platform, optical components, and series products. We insist on quality assurance from design, part selection, manufacturing, assembly, inspection, packaging, transportation to after-sales service.
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
