Product parameters:
| Model | PT-GD2513 | |
| Structural description | Itinerary | 150mm |
| Countertop size | 250×135mm | |
| Driving mechanism | Refine the lead screw pair | |
| Guide rail form | Sliding guide rail | |
| Ball screw | φ12 lead: 4mm | |
| Stepper motor | 57 Planetary reduction stepper motor 57HPG6401; Speed ratio 5 | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodic oxidation turns black | |
| Central bearing | 50kg | |
| Weight | 6kg | |
| Accuracy description | Adjustment quantity | 5μ (no subdivision) |
| 0.25μ (20 subdivisions) | ||
| Speed | 5/sec | |
| Repeat positioning accuracy | 10μ | |
| Empty return | 4μ | |
| Lose step | 3μ | |
| Descend to a low altitude | 114mm | |
| Rise to a high place | 270mm | |

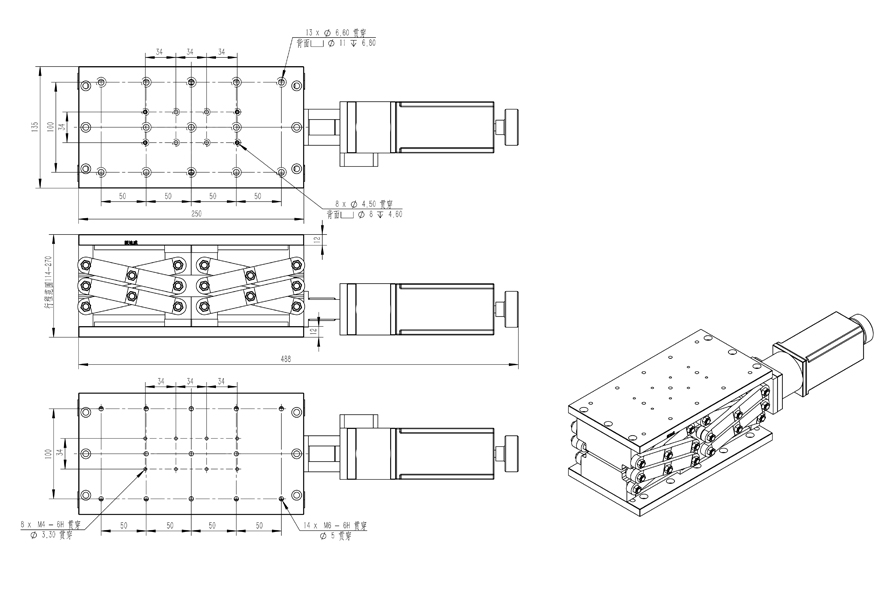

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
