It is equipped with stepping motor and DB9 interface as standard
Precision screw drive, high resolution;
The guide rail adopts cross roller guide rail, which is comfortable in movement, good linearity and large bearing capacity;
Wedge shaped lifting inner structure, low overall height, stable operation;
The vertical guide adopts precision linear slide guide, which has high positioning accuracy and good stability;
The seal is made of stainless steel, heat resistant and laser resistant;
There are handles at both ends of the bottom of the lifting table, which is convenient to move the position of the lifting table;
Replaceable ferromagnetic stainless steel countertop.

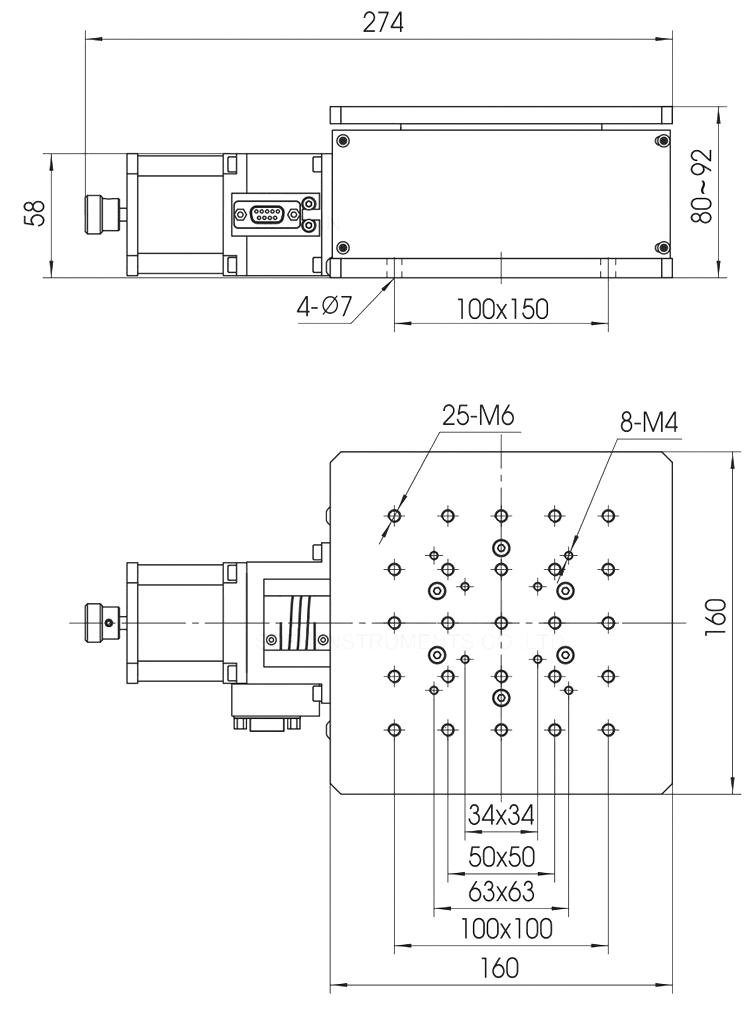

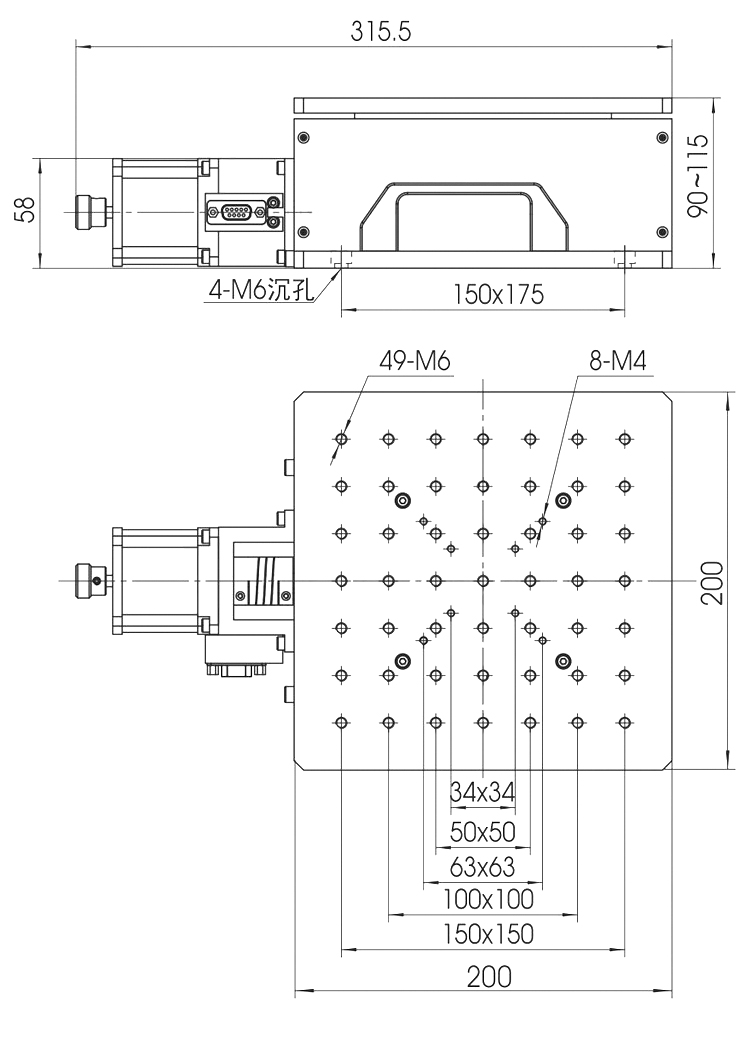

Model | PT-GD412 | PT-GD425 |
Platform Size（mm） | 160×160 | 200×200 |
trip（mm） | 12 | 25 |
resolving power（8subdivision） | 0.0005 | |
Repeat positioning accuracy（mm） | 0.003 | |
Screw lead（mm） | 1 | |
Standard motor | 57 Stepper motor（1.8°） | |
static torque（N.M） | 1.2 | |
Rated working current | 2.8 | |
speed（2 to subdivide） | 10mm/s | |
Central bearing（kg） | 40 | 50 |
Weight（kg | 5 | 7.5 |
