Product Name: Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403

Share
Specification:

1   Item Number: PT-GD403

2   Travel Range: 100mm

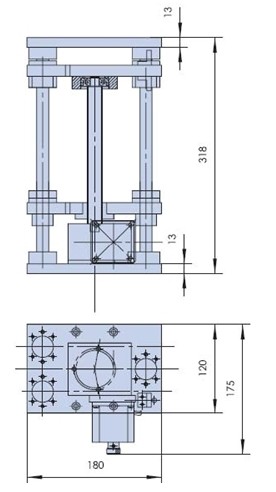

3   Dimension of Platform: 180mm x 120mm

4   Drive Mechanism: Gear Motor with Grinding Screw

5   Travel Guide: Slide Rail

6   Stepper Motor (1.8°): SST57D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle

7   Material – Finish: Aluminum Alloy - Black-Anodized

8   Load Capacity: 50kgs

9   Weight: 10.5kgs

Accuracy Specifications

1   Minimum Adjust Distance: 0.75μm

2   Max Velocity: 8mm/sec

3   Repeatability: 5μm

4   Absolute Accuracy: 15μm

5   Backlash: 4μm

6   Lost Motion: 3μ

Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403


Product details:
Advantage:

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.

 PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY StagesHigh quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

The products can be produced according to your needs if it don't meet your need.


Service:
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
  •  Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
 Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
