Product parameters:
| Model | PT-D200DA | PT-D230DH |
| Stroke (mm) | 360 | 360 |
| Load (kg) | 70 | 40 |
| Load (inverted/side-mounted) (kg) | 20 | 20 |
| Resolution (° | 0.0005 | 0.0007 |
| Minimum step (°) | 0.001 | 0.001 |
| Unidirectional repeat positioning accuracy/guaranteed value (°) | ±0.002 or 0.004 | ±0.003 or 0.006 |
| Unidirectional repeat positioning accuracy/Typical value (°) | ±0.001 or 0.002 | ±0.002 or 0.004 |
| Bidirectional repeat positioning accuracy/guaranteed value (°) | ±0.003 or 0.006 | ±0.005 or 0.01 |
| Bidirectional repeat positioning accuracy/Typical value (°) | ±0.002 or 0.004 | ±0.004 or 0.008 |
| Positioning accuracy/Guaranteed value (°) | ±0.005 or 0.01 | ±0.01 or 0.02 |
| Positioning accuracy/Typical value (°) | ±0.003 or 0.006 | ±0.005 or 0.01 |
| Maximum speed (°/s) | 3600 | 1800 |
| Terminal hop/Guarantee value (μm) | 40 | 5 |
| Diameter jump/Guaranteed value (μm) | 40 | 15 |
| Weight (kg) | 11 | 15 |
※ Note
[1] : Center vertical load when placed horizontally.
[2] : The minimum motion increment is not equivalent to resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and the encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.
[3] : The precision measurement data is the data measured by a laser interferometer when the platform is placed horizontally.
[4] : The distinction between typical values and guaranteed values can be found in the technical guide.
[5] : The maximum speed is a typical value and may vary depending on the load and controller.

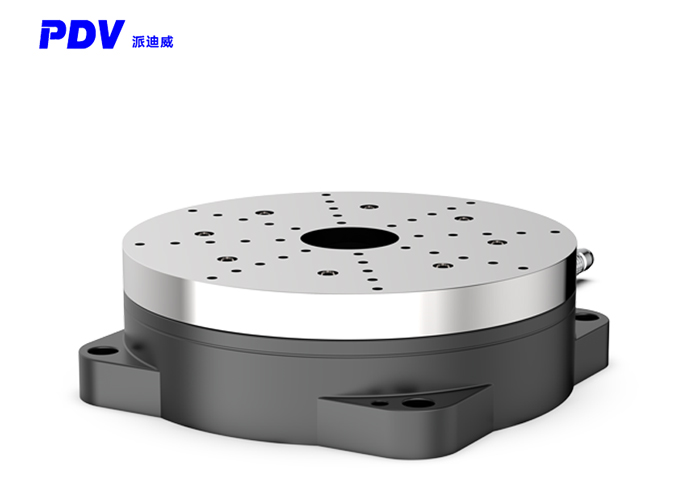

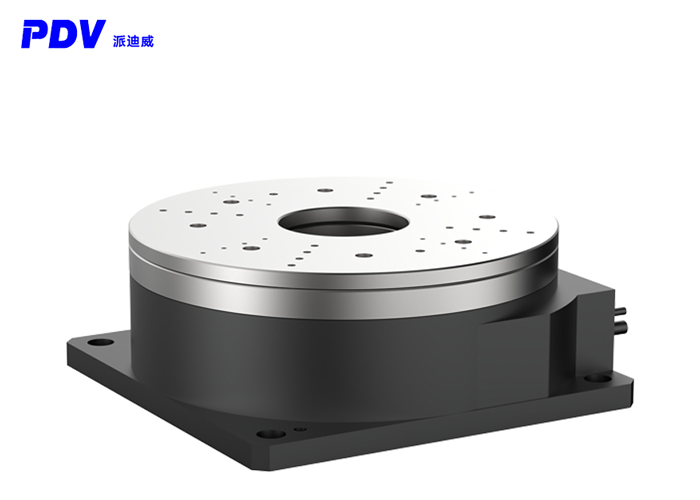

Product Details:
High precision, anti-interference, and flexible integration
The ultra-high performance direct drive rotary table is specially designed for applications that require high-precision rotary positioning in harsh environments. It adopts absolute value encoders and core motors, featuring high precision, high stability, strong anti-interference ability, etc. It has a compact structure, is easy to integrate, and offers multiple countertop size options to meet diverse application requirements.
Main features:
Multiple sizes are available to meet more application requirements: It offers a variety of countertop diameters ranging from 200mm to 230mm, and larger sizes can be customized. The structure is compact and can be flexibly integrated into various space-constrained application scenarios.
Absolute encoder, higher precision and more reliable: The Biss-C protocol absolute encoder is adopted, which does not need to return to zero, has strong anti-interference ability, and can maintain position information even in the event of power failure, ensuring higher positioning accuracy and reliability.
Precise structure, stable and reliable: Equipped with imported direct drive motors and high-precision bearings, it ensures outstanding motion accuracy and long-term stable reliability.
Ultra-quiet operation, creating a comfortable environment: The ultra-quiet rotary table is suitable for noise-sensitive laboratory environments and high-performance industrial sites.
Powerful software support and easy operation: Free standard SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
High-performance controller, achieving complex motion: The controller supports circular interpolation, linear interpolation, position memory and arbitrary graphic import, which can meet various complex motion control requirements. (Optional)
Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission.
Product application:
Optical Path Switching, Industrial CT, Semiconductor Inspection, Machine Vision, Medical Beauty

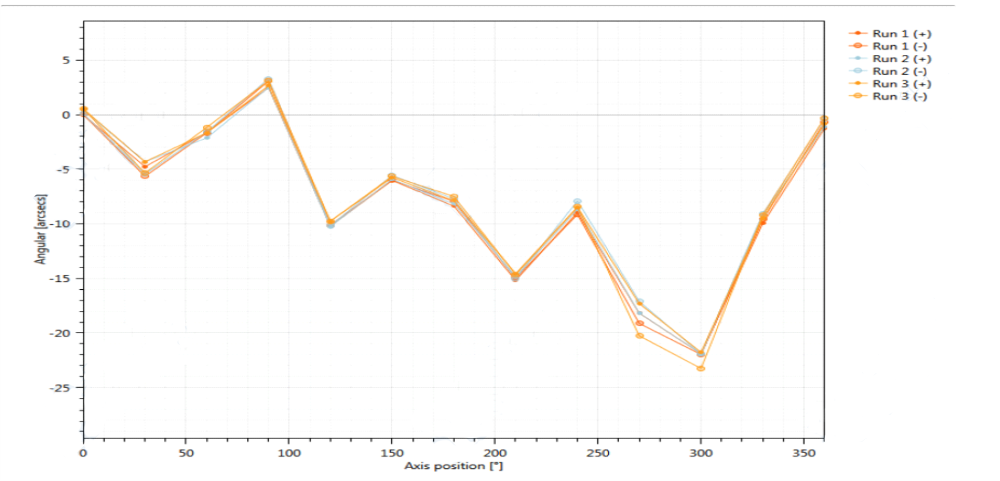

Performance measurement:

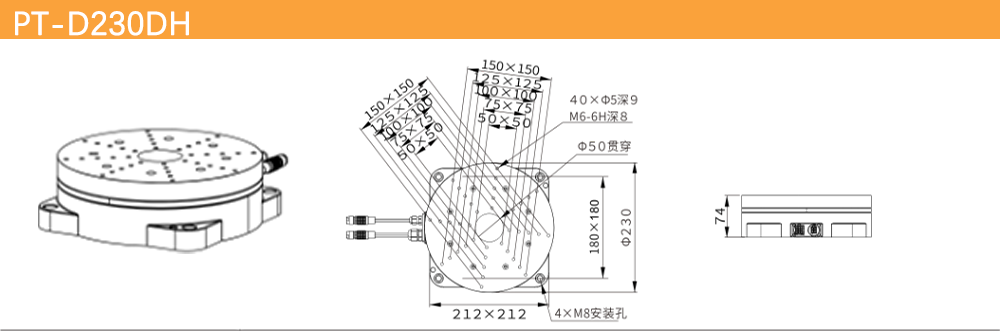

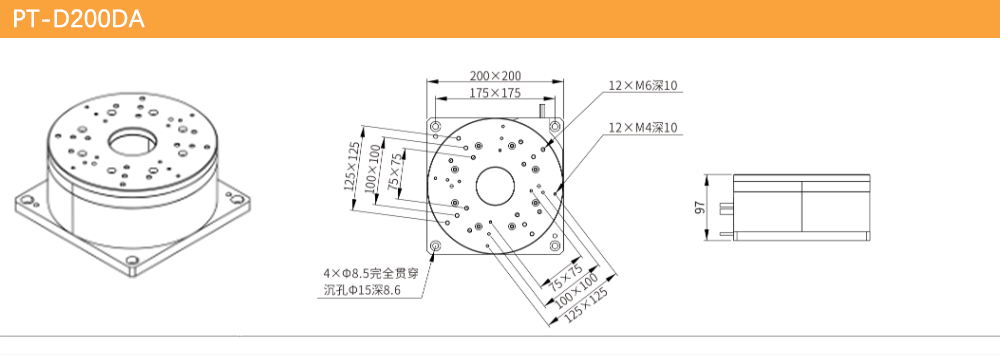

Product size:
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
