Product parameters:
| Model | PT-DS300-60 |
| Stroke (mm) | 60 |
| Load (kg) | 10 |
| Resolution (° | 0.001 |
| Minimum step (°) | 0.002 |
| Unidirectional repeat positioning accuracy/guaranteed value (°) | ±0.005 or 0.01 |
| Unidirectional repeat positioning accuracy/Typical value (°) | ±0.003 or 0.006 |
| Bidirectional repeat positioning accuracy/guaranteed value (°) | ±0.01 or 0.02 |
| Bidirectional repeat positioning accuracy/Typical value (°) | ±0.02 or 0.04 |
| Positioning accuracy/Guaranteed value (°) | ±0.02 or 0.04 |
| Positioning accuracy/Typical value (°) | ±0.03 or 0.06 |
| Maximum speed (°/s) | 10 |
| Flatness (μm) | 15 |
| Offset pendulum | 15 |
| Pitch and pitch | 15 |
| Weight (kg) | 14.5 |
※ Note
[1] : Center vertical load when placed horizontally.
[2] : The minimum motion increment is not equivalent to resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and the encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.
[3] : The precision measurement data is the data measured by a laser interferometer when the platform is placed horizontally.
[4] : The distinction between typical values and guaranteed values can be found in the technical guide.
[5] : The maximum speed is a typical value and may vary depending on the load and controller.
Product Details:
High-precision, arc-shaped guide rails, professional control software

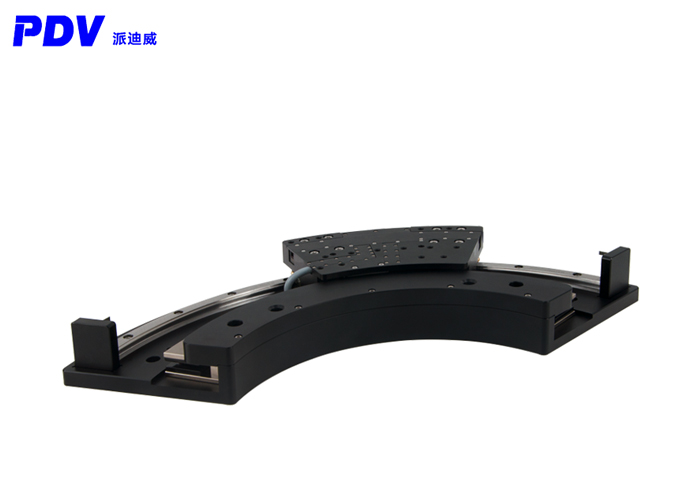

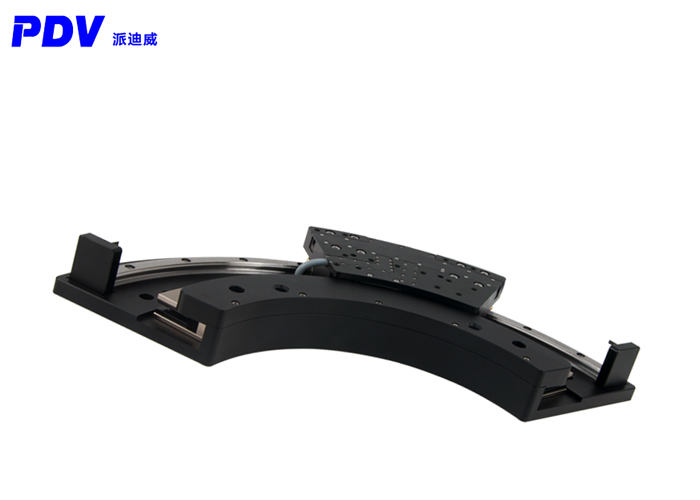

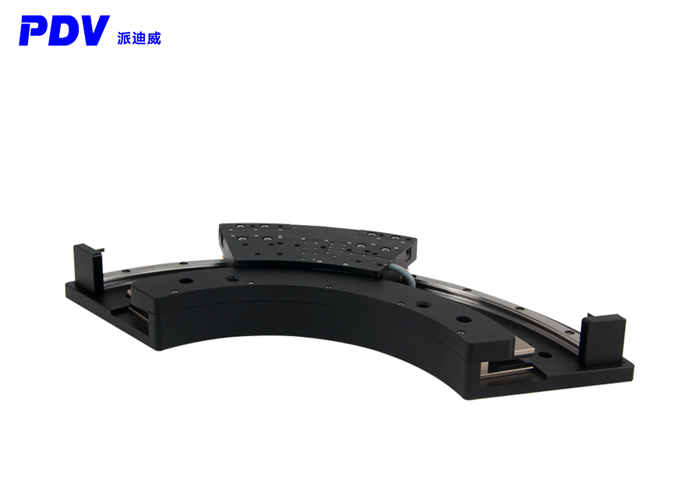

The sector-shaped displacement stage is specially designed for applications that require high-precision rotational motion within a certain Angle range. The sector-shaped displacement stage is driven by an arc-shaped linear motor, combined with high-precision arc-shaped guide rails and a high-quality grating ruler feedback system, featuring high precision, high stability and low noise. Its structure is compact, easy to integrate, and it offers multiple control methods to meet diverse application requirements.
Main features:
Large travel coverage, meeting more application requirements: Offering a rotation range of up to 60°, compact structure, and flexible integration into various space-constrained application scenarios.
Precise structure, stable and reliable: It adopts high-precision arc-shaped guide rails and high-quality arc-shaped linear motors, combined with standardized installation techniques, to ensure outstanding motion accuracy and long-term stable reliability.
High resolution and fine control: The fan-shaped displacement stage is driven by an arc-shaped linear motor and fed back by a high-resolution grating ruler, featuring excellent microstep capability. Combined with a high-performance controller, the resolution can reach 0.001°.
Ultra-quiet operation, creating a comfortable environment: The ultra-quiet displacement stage is suitable for noise-sensitive laboratory environments and high-performance industrial sites.
Powerful software support and easy operation: Professional control software is provided to facilitate users' operation and parameter setting. The free standard version SDK supports multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
High-performance controller, achieving complex motion: The controller supports circular interpolation, linear interpolation, position memory and arbitrary graphic import, which can meet various complex motion control requirements. (Optional)
Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission.
Product application:
Optical Path Switching, Industrial CT, Semiconductor Inspection, Machine Vision, Medical Beauty

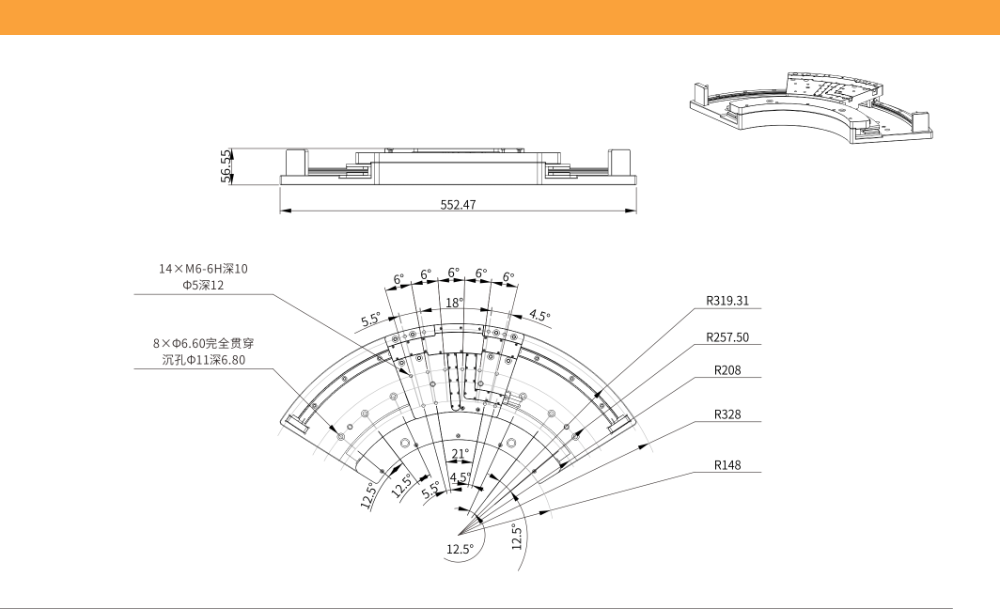

Product size:
