Product parameters:
| Model | PT-D300D |
| Stroke (mm) | 360 |
| Load (kg) | 50 |
| Resolution (° | 0.005 |
| Minimum step (°) | 0.01 |
| Bidirectional repeat positioning accuracy (°) | ±0.01 or 0.02 |
| Positioning accuracy (° | ±0.05 or 0.1 |
| Maximum speed (°/s) | 20 |
| Weight (kg) | 13 |
※ Note
[1] : Center vertical load when placed horizontally.
[2] : The minimum motion increment is not equivalent to resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and the encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.
[3] : The precision measurement data is the data measured by a laser interferometer when the platform is placed horizontally.
[4] : The maximum speed is a typical value and may vary depending on the load and controller.
Product Details:
Precise and reliable, easy to integrate, and cost-effective

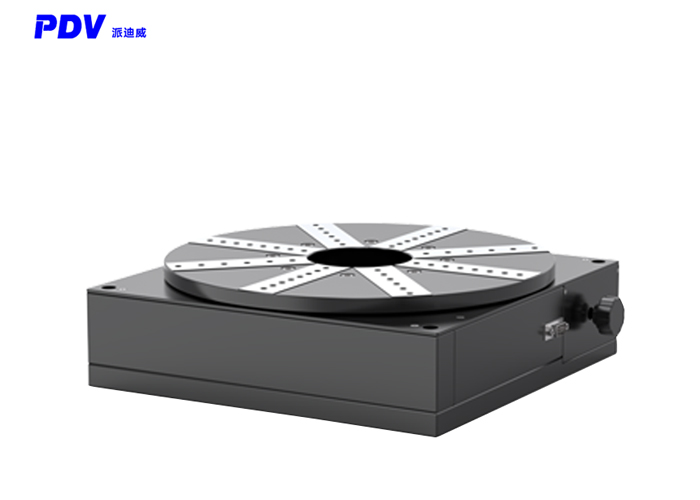

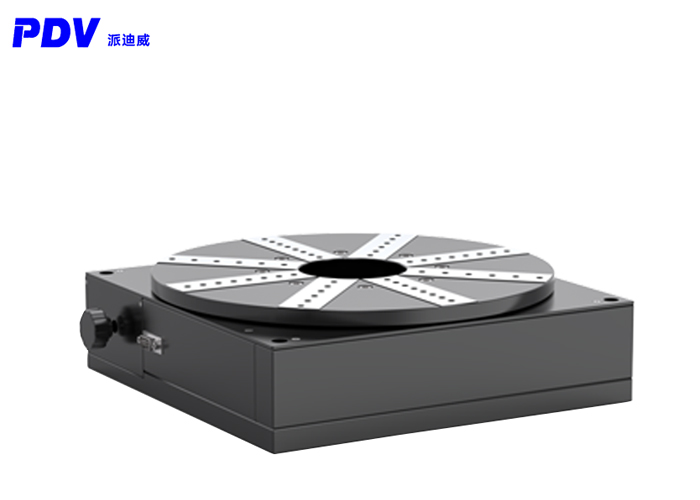

Stepper motor rotary table, specially designed for laboratory and industrial automation applications that pursue economic efficiency. The rotary table adopts a structure of "stepper motor + precision worm gear and worm", combined with a high-performance controller, featuring high cost performance, compact structure, and easy integration. It offers a variety of table size and configuration options, easily handling various rotary positioning application scenarios.
Main features:
Flexibly meet application requirements: Offer a 300mm countertop diameter option, compact structure, and can be flexibly integrated into various space-constrained application scenarios.
Precise transmission, stable and reliable: It adopts a precise worm gear and worm transmission mechanism and high-quality stepper motor, combined with standardized installation techniques, to ensure the accuracy of rotational motion and long-term stable reliability.
High cost performance and economic practicality: Compared with direct drive rotary tables, it has a more competitive price and is an ideal choice for limited budgets, providing users with high cost-performance rotary positioning solutions.
Powerful software support and easy operation: Free standard SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
Product application:
Argument Test, Demo Experiment, High-end Teaching Experiment, Ordinary Experimental Equipment

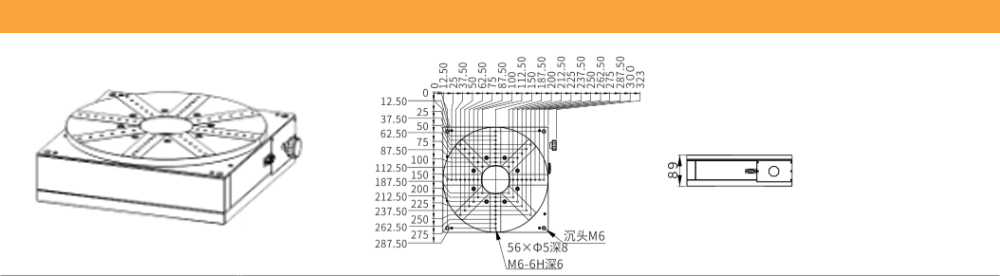

Product size:
