Product parameters:
| Model | PT-ZT10 | PT-ZT12(Servo motor） |
| Stroke (mm) | 120(X);110(Y) | 120(X);110(Y) |
| Load (kg) | 2 | 2 |
| Resolution (um) | 0.05 | 0.1 |
| Minimum step size (um) | 0.1 | 0.5 |
| Unidirectional repeat positioning accuracy/guaranteed value (um) | ±0.25 or 0.5 | ±1 or 2 |
| Unidirectional repeat positioning accuracy/typical value (um) | ±0.1 or 0.2 | ±0.5 or 1 |
| Bidirectional repeat positioning accuracy/guaranteed value (um) | ±0.5 or 1 | ±3 or 6 |
| Bidirectional repeat positioning accuracy/Typical value (um) | ±0.3 or 0.6 | ±2 or 4 |
| Positioning accuracy/Guaranteed value (um) | ±2.5 or 5 | ±5 or 10 |
| Positioning accuracy/Typical value (um) | ±1.5 or 3 | ±3 or 6 |
| Maximum speed (mm/s) | 100 | 10 |
| Straightness (um) | 10 | 15 |
| Flatness (um) | 10 | 10 |
| Offset pendulum | 20 | 30 |
| Pitch and pitch | 20 | 30 |
| Weight (kg) | 6.9 | 7 |
※ Note
[1] : Center vertical load when placed horizontally.
[2] : The minimum motion increment is not equivalent to resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and the encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.

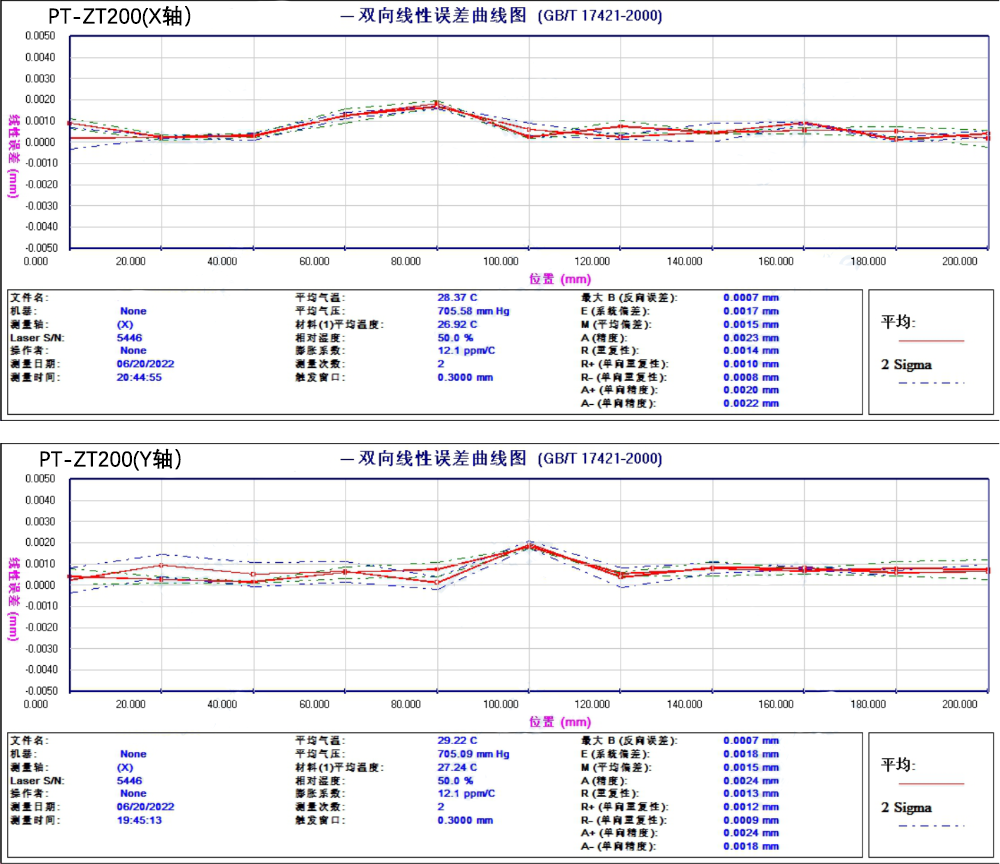

[3] : The precision measurement data is the data measured by a laser interferometer when the platform is placed horizontally
[4] : The distinction between typical values and guaranteed values can be found in the technical guide.
[5] : The maximum speed is a typical value and may vary depending on the load and controller.
Product Details:

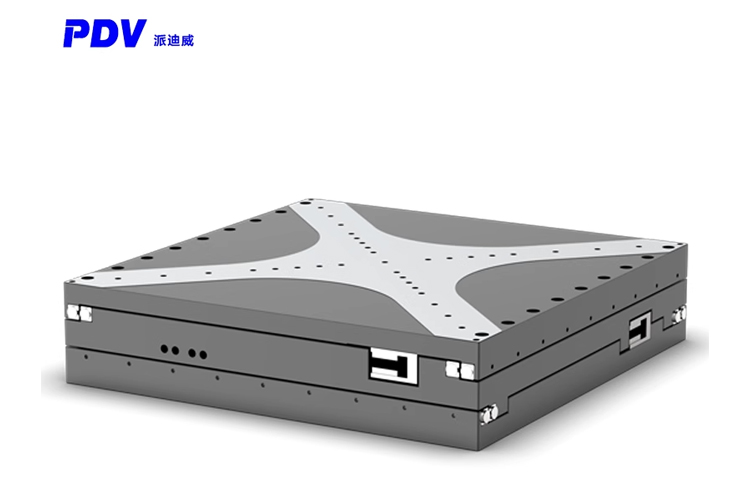

High speed, high precision and flexible adaptation

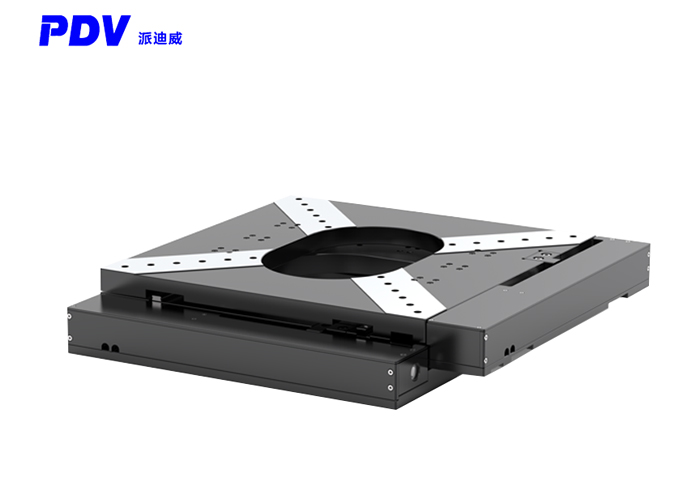

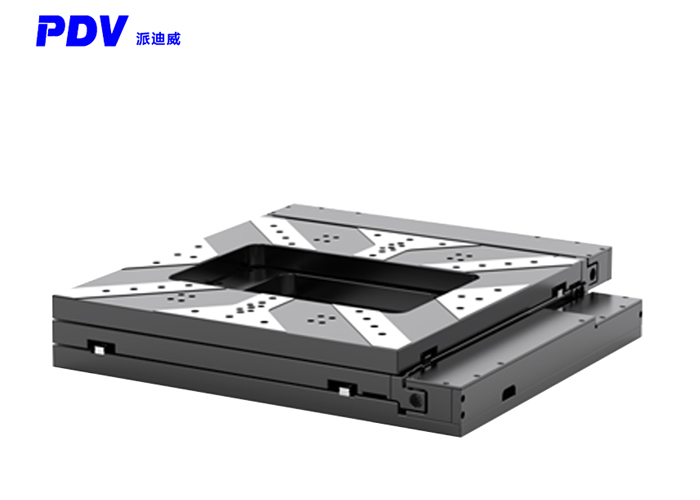

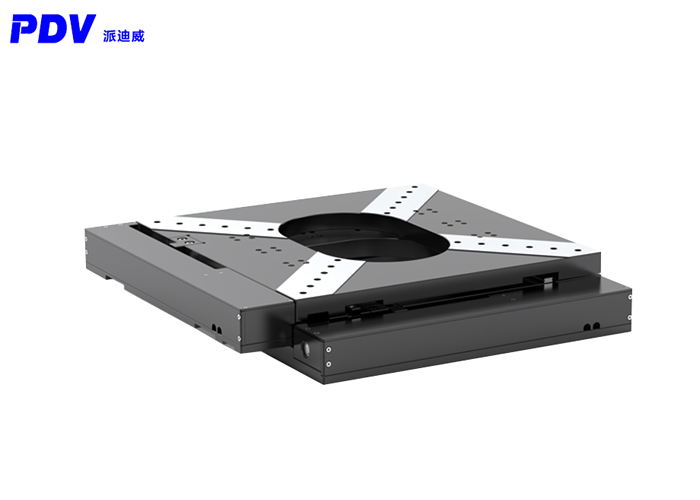

The linear motor hollow two-dimensional scanning platform is specially designed for laboratory and industrial applications that require high-speed and high-precision two-dimensional positioning, especially suitable for the fields of microscopic imaging and automated inspection. This platform adopts an integrated tabletop design and is equipped with high-performance linear motors, achieving rapid and precise two-dimensional scanning movements. Its unique hollow structure provides greater flexibility for the optical path and sample handling.
Main features:
The stroke, precision and load-bearing capacity can all be customized to meet personalized demands: The platform's stroke, precision and load-bearing capacity can be customized according to customer needs to meet the personalized demands of different application scenarios.
Integrated countertop design, compact structure, space-saving: By adopting an integrated countertop design, the X-axis and Y-axis are integrated into a compact unit, minimizing installation space to the greatest extent.
High resolution, fine control: High-resolution linear motors, in combination with high-performance controllers, can achieve sub-micron-level precise positioning, ensuring the accuracy and clarity of image acquisition.
High-speed movement, efficiency doubling: Utilizing direct drive motor technology, it offers faster speed and greater acceleration, significantly enhancing scanning efficiency. It is particularly suitable for wide-field, high-resolution imaging applications.
Flexible adaptation and easy integration: It can be adapted to inverted microscopes of mainstream brands such as Nikon and Leica, and provides a variety of matching accessories to facilitate users' quick integration into their existing microscopic systems.
Ultra-quiet operation, creating a comfortable environment: The ultra-quiet displacement stage is suitable for noise-sensitive laboratory environments and high-performance industrial sites.
Powerful software support and easy operation: Free standard SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
High-performance controller, achieving complex motion: The controller supports circular interpolation, linear interpolation, position memory and arbitrary graphic import, which can meet various complex motion control requirements. (Optional)
Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission.
Product application:
Microscope, 2D Scan, Femtosecond Processing

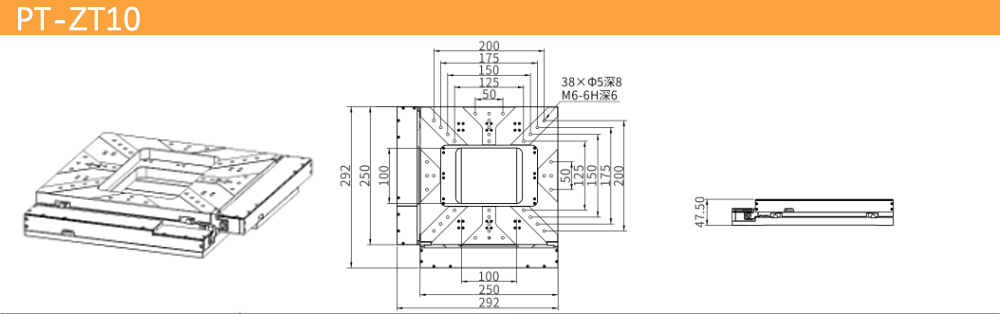

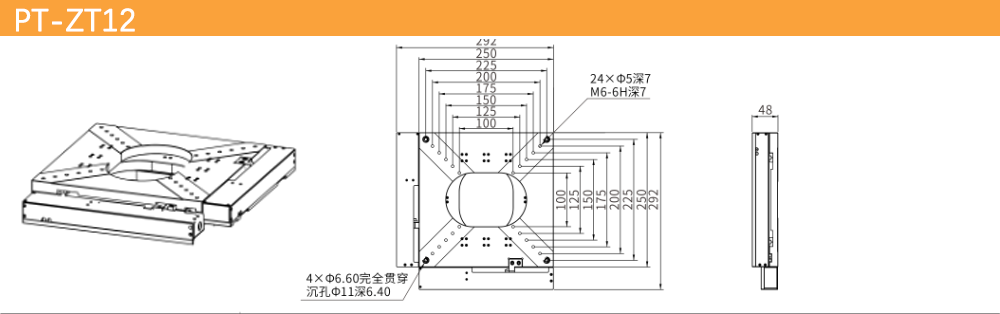

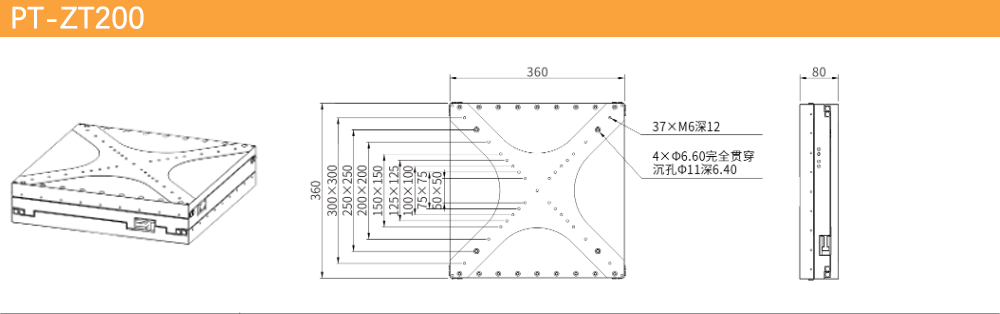

Product size:
