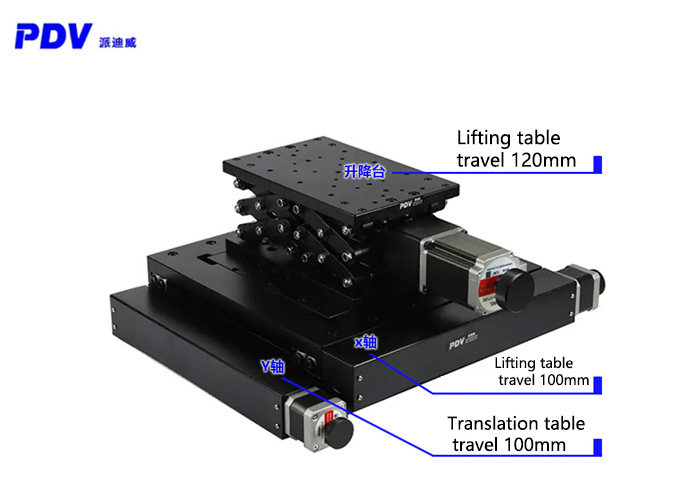

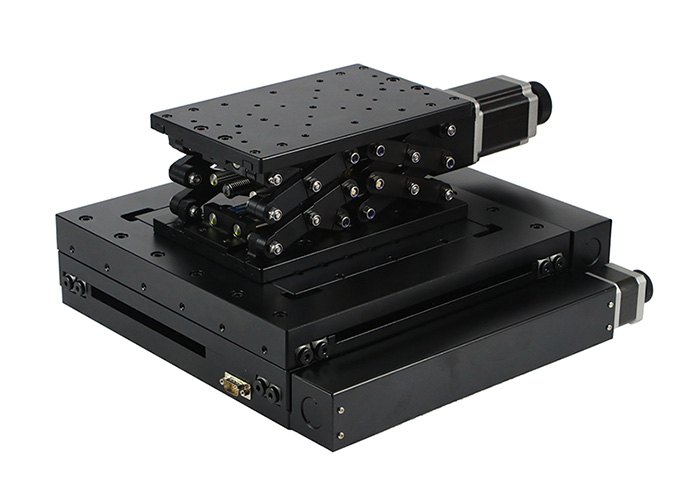

Electric integral combination table PT-XY100, electric lifting table PT-GD402 combination.
Product details:Model Number | PT-XY100 | Model Number | PT-GD402 | ||
Structure | Travel Range(mm) | 100mm | Structure | Lift Travel | 120 mm |
Platform Size | 300mm x 300mm | Platform Size | 220mm×140mm | ||
Screw Guide | 4 | Drive Mechanism | Grinding Screw | ||
Travel Guide | Precise Crossed Roller Bearing | Travel Guide | Slide Rail | ||
Stepper Motor | 42(1.8°) | Stepper Motor (1.8°) | 57BYG | ||
Material | Aluminum Alloy | Material | Aluminum Alloy | ||
Surface Preparation | Black-Anodized | Surface Preparation | Black-Anodized | ||
Load Capacity(Kg) | 50 | Load Capacity | 10kg | ||
Weight(Kg) | 8.3 | Weight | 6kg | ||
Accuracy | Resolution(μm) | 20(Non MS), 2.5(8 MS) | adjustment | 5μ(Non MS), 0.25μ(20MS) | |
Max Velocity | 40mm/sec | Accuracy | Velocity | 5/sec | |
Repeatability(μm) | 2 | Repeatability | 10μ | ||
Absolute Accuracy(μm) | 3 | Backlash | 4μ | ||
Straightness(μm) | 5 | Lost Motion | 3μ | ||
Moving Parallelism(μm) | 15 | ||||
Pitching | 50" | ||||
Yawing | 25" | ||||
Backlash(μm) | 2 | ||||
Lost Motion(μm) | 2 | ||||
Accessory | Installing Grating Ruler (Optional) | ||||
Reloading Servo Motor (Optional) | |||||
PT-XY100 Product dimension drawing:
PT-GD402 Product dimension drawing:
We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
