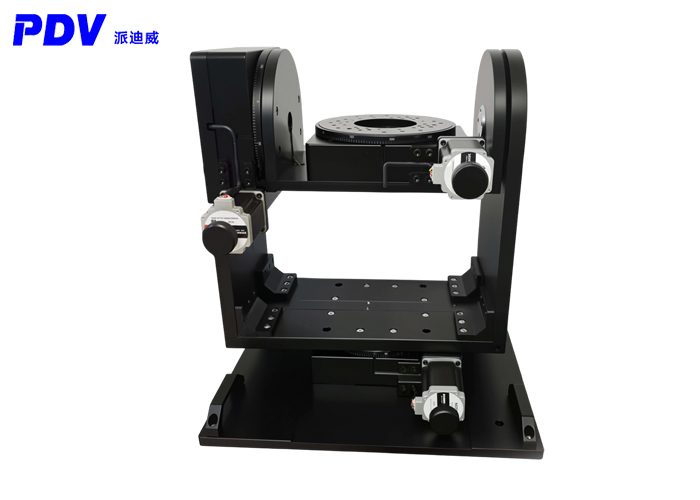

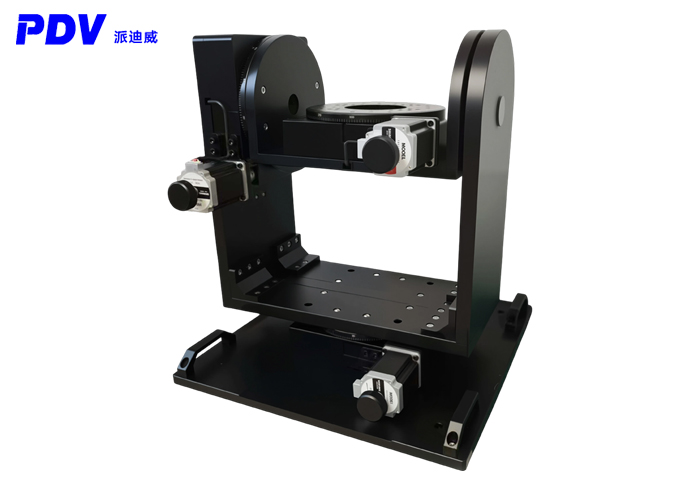

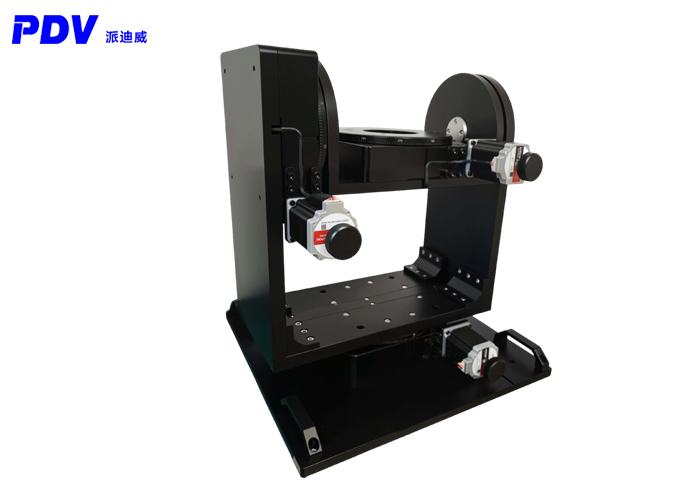

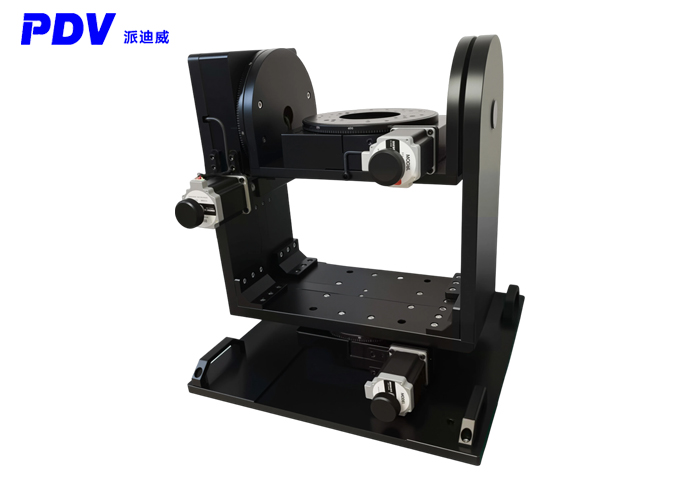

1、Standardly equipped with a stepper motor. It can be optionally equipped with the KZ-100 or TC-55 series motion controllers developed by our company, which can achieve automatic control for it.
2、The rotating shaft system is precisely manufactured through multiple processes, featuring high accuracy, large capacity and long service life.
3、 Adopting a precisely matched worm gear and worm structure, the movement is smooth and comfortable. It can rotate in either forward or reverse direction freely and has a small backlash.
4、The ingeniously designed emptying and refilling structure can adjust the gap caused by long-term use.
5、The special structural design ensures that the rotating tabletop has extremely low end-jump and eccentricity, making the rotational movement more stable.
6、The central hole of the spindle has a strict coaxiality requirement with the rotation center, and the diameter of the central hole of the spindle has strict tolerance limits for assembly, which facilitates precise positioning for customers.
7、The outer scale ring of the tabletop is a laser-marked ruler. The scale can rotate relative to the tabletop, facilitating initial positioning and reading.
8、The stepper motor and the worm gear are connected through a high-quality elastic coupling, ensuring synchronous transmission and excellent deviation suppression performance. This significantly reduces eccentric disturbances and minimizes noise.
9、The electric rotating table can be used either horizontally or vertically. It can also be combined with other types of tables to form a multi-dimensional electric adjustable table.
10、 The limit function can be enhanced, the initial zero position can be increased, a servo motor can be installed, a rotation encoder can be added, and the product can be modified and customized according to individual needs.
The product parameters refer to electrical performance parameters.
Product parameters：
| Product model | PT-SW02 | |
| Structural Description | Angle range | Rotate 360° around the X, Y, and Z axes |
| Table size | φ200mm | |
| Transmission ratio | 180:1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Guide rail type | Bearings | |
| Stepper motor (1.8°) | 57BYG | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Centering and grounding | 55kg | |
| Weight | 7.9kg | |
| Precision description | Resolution | 0.01°=36”(No segmentation) 0.0005°=1.8”(20 segmentation) |
| Speed | 25°/sec | |
| Repeatability of positioning accuracy | 0.005°=18” | |
| Positioning accuracy (optional grating) | 0.01°=36” | |
| End jump accuracy | 15μ | |
| Idle travel | 0.005°=18” | |
| Out-of-roundness | 20μ | |
| Step loss | 0.005°=18” | |
| Parallelism | 100μ | |

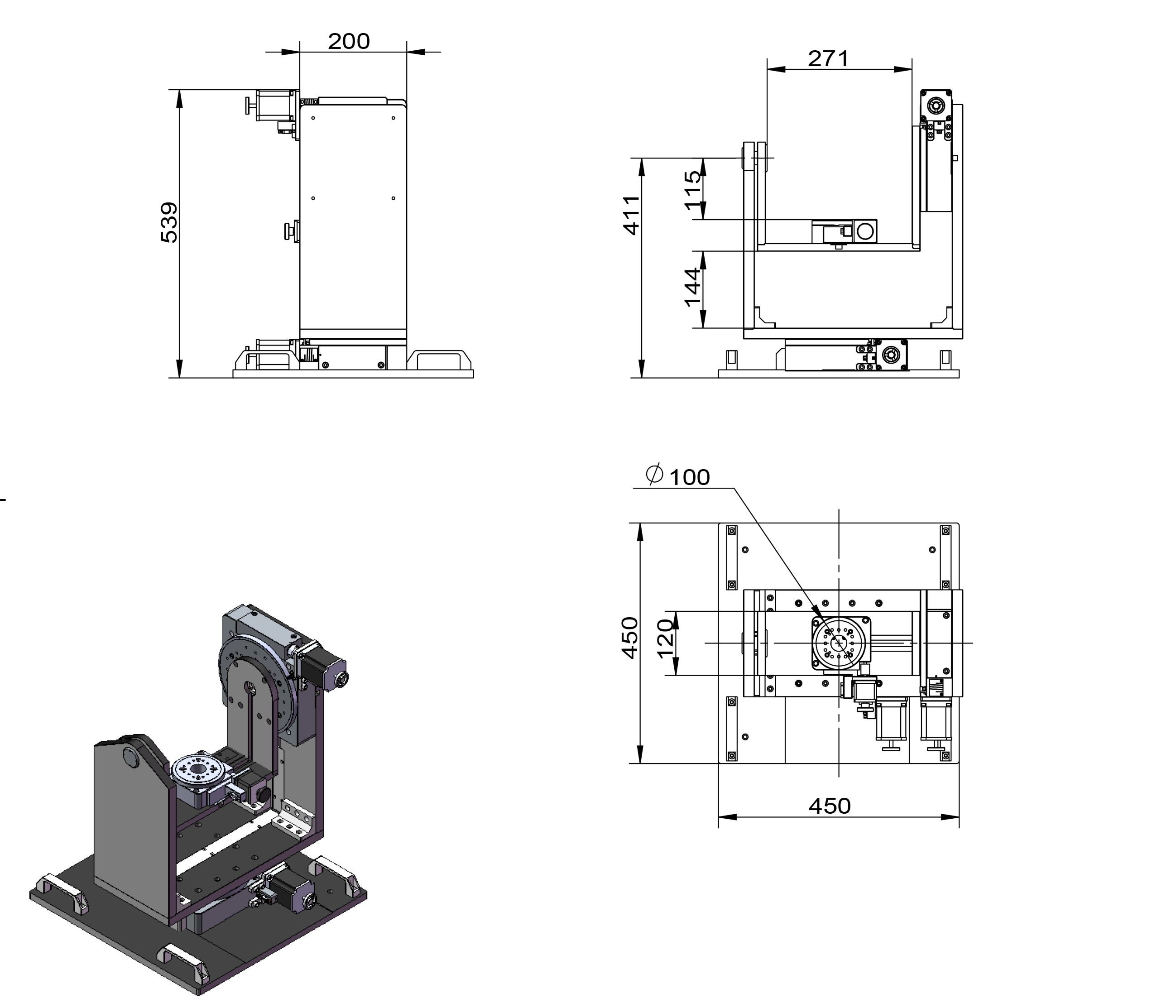

Product size:
