Product parameters：
| Model | PT-XYZ30 | |||

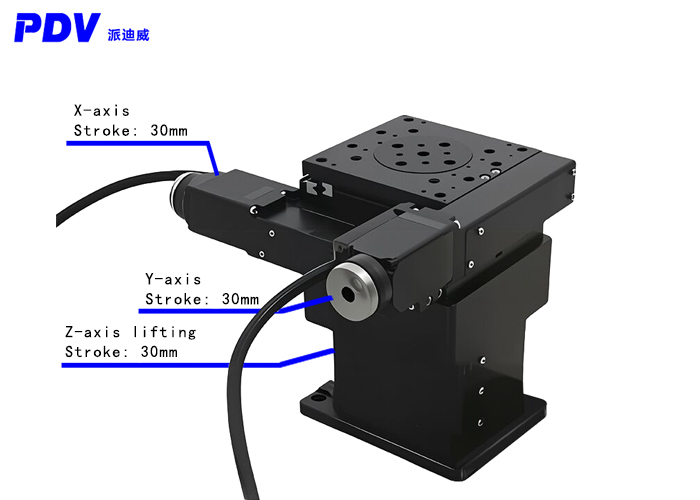

| Structural description | X, Y axis travel | 30 mm | Z-axis travel | 30mm |
| Countertop size | 50×50 | Screw lead | 0.794mm | |
| Screw lead (mm | 2 | Repeat positioning accuracy | ±1.5μm | |
| Guide rail | Crossed roller guide rail | Straightness | 15μm | |
| Step Angle | 1.8° | Positioning accuracy | - | |
| Main materials | Aluminum alloy | Resolution | 0.992(8Subdivision） | |
| Surface treatment | Anodizing turns black | Minimum step distance | 5μm | |
| Maximum load (kg | 20 | Maximum speed (mm/s) | ≤3mm/s | |
| Weight (kg | 2.84 | Maximum load | 50KG | |
| Precision description | Resolution | 1.25μm(8Subdivision） | Control mode | Open-loop |
| Speed | 15mm /sec | Self-respect | 3KG | |
| Repeat positioning accuracy | ±1μm | Rated current | 1.3A | |
| Model | PT-XYZ30M | |||
| Structural description | X, Y axis travel | 30 mm | Z-axis travel | 30mm |
| Countertop size | 50×50 | Screw lead | 0.794mm | |
| Screw lead (mm | 2 | Repeat positioning accuracy | ±0.5μm | |
| Guide rail | Crossed roller guide rail | Straightness | 15μm | |
| Step Angle | 1.8° | Positioning accuracy | ±1.5μm | |
| Main materials | Aluminum alloy | Resolution | 0.1(Grating ruler) | |
| Surface treatment | Anodizing turns black | Minimum step distance | 0.5μm | |
| Maximum load (kg | 20 | Maximum speed (mm/s) | —— | |
| Weight (kg | 3.12 | Maximum load | 50KG | |
| Precision description | Resolution | 0.1μm(8Subdivision） | Control mode | Closed loop |
| Speed | 15mm /sec | Self-respect | 3KG | |
| Repeat positioning accuracy | ±0.5μm | Rated current | 1.3A | |

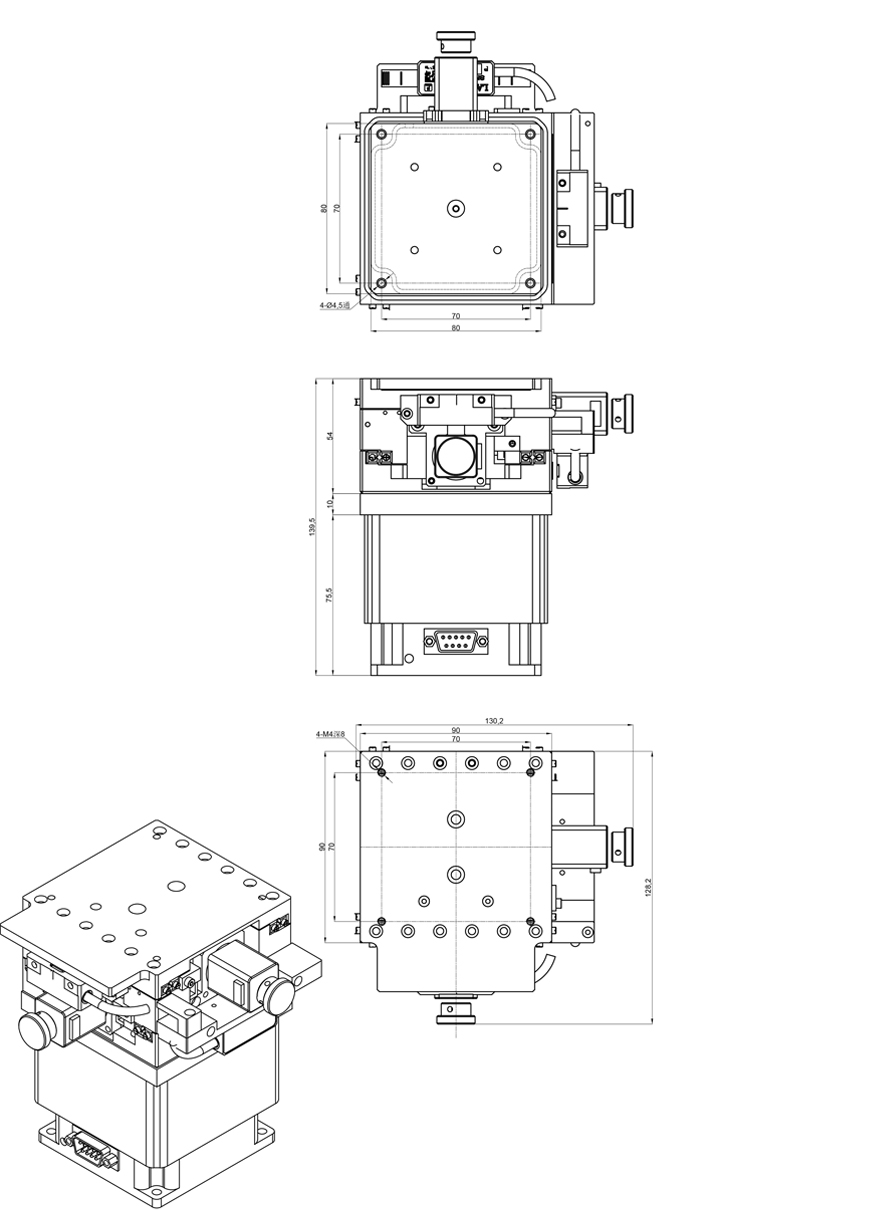

Product size
