Specification:

Product parameters

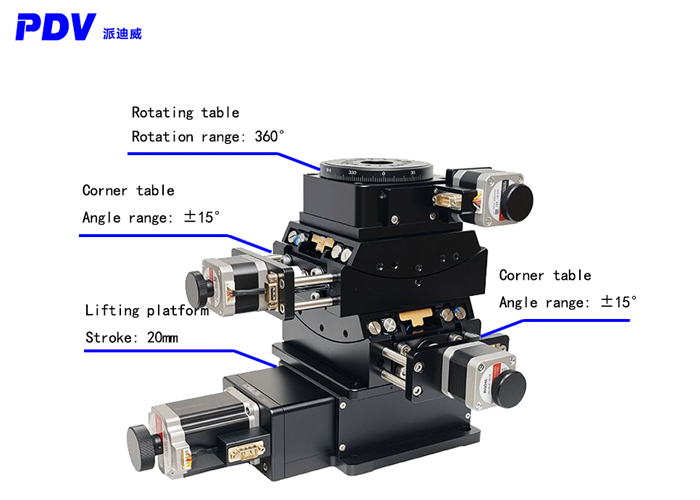

1. Linear motion	Each dimension is equipped with scale lines
Up and down movement (Z-axis)	Adjust the stroke by 20mm and the resolution by 0.0075mm
2. Angular movement	Each dimension is equipped with scale lines
Forward and backward pitch (θ -y axis)	Adjustment range: ± 15. Resolution: 0.005°
Left and right pitch (θX axis)	Adjustment range: ± 15. Resolution: 0.005°
Horizontal rotation (θ -z axis)	Adjustment range: 360°, resolution: 0.005°
3. Maximum load capacity	15kg
4. External dimensions	335x265.4x255.5mm
5. Base height	255.5mm
6. Dimensions of the loading platform	Φ100mm

Product details:

Product size

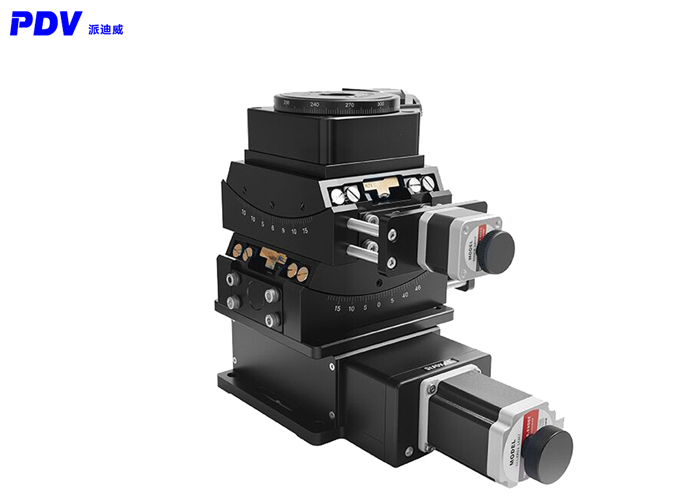

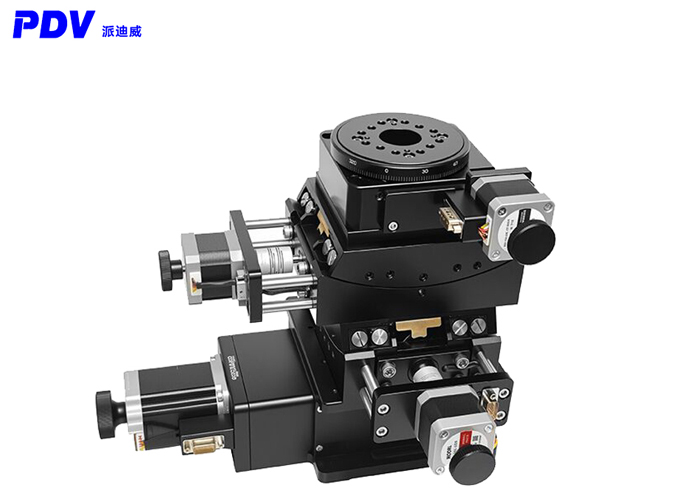

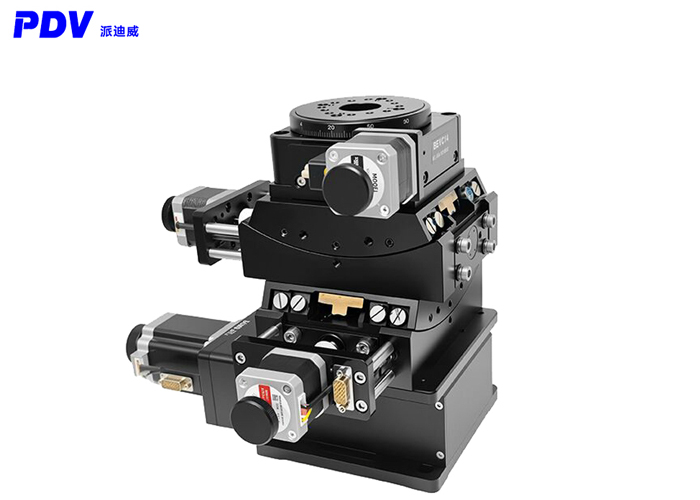

Electric four-dimensional pitch and yaw rotary lift adjustment console GD148 GD312XY PX110-100

Service:

Electric four-dimensional pitch and yaw rotary lift adjustment console GD148+GD312XY+PX110-100

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
