Product Specifications:
| Product model | PX110-60 | |
| Structural Description | Angle range | 360° |
| Table size | φ60mm | |
| Transmission ratio | 45:1 or 90∶1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Guide rail type | Bearings | |
| Stepper motor (1.8°) | 42BYG | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Centering and grounding | 30kg | |
| Weight | 0.9kg | |
| Precision description | Resolution | 0.02°（No segmentation） 0.001°=3.6″（20segmentation） |
| Speed | 50°/sec | |
| Repeatability positioning accuracy | 0.005°=18″ | |
| Positioning accuracy (optional with grating) | 0.01°=36″ | |
| End jump accuracy | 15μ | |
| Idle return | 0.005°=18″ | |
| Out-of-roundness | 5μ | |
| Step loss | 0.005°=18″ | |
| Parallelism | 80μ | |
| Model number | PJ110-15 |
| Angle range | ±15° |
| Table size | 65×65mm |
| Transmission ratio | 252∶1 |
| Rotation center height | 50mm±0.2 mm |
| Drive mechanism | Worm gear and worm mechanism |
| Guide rail type | Cross roller guide rail |
| Stepper motor (1.8°) | 42BYG |
| Main material | Aluminum alloy |
| Surface treatment | Anodizing to achieve blackening effect |
| Centering and grounding | 5kg |
| Weight | 0.9kg |
| Resolution | ≈0.007°≈25″（No segmentation） ≈1.3″（20segmentation） |
| Rotation center accuracy | 0.03mm |
| Speed | 10°/sec |
| Repeatability positioning accuracy | ±4” |
| Positioning accuracy (optional with grating) | ±9” |
| Jogging | ±4” |
| Step loss | 3" |

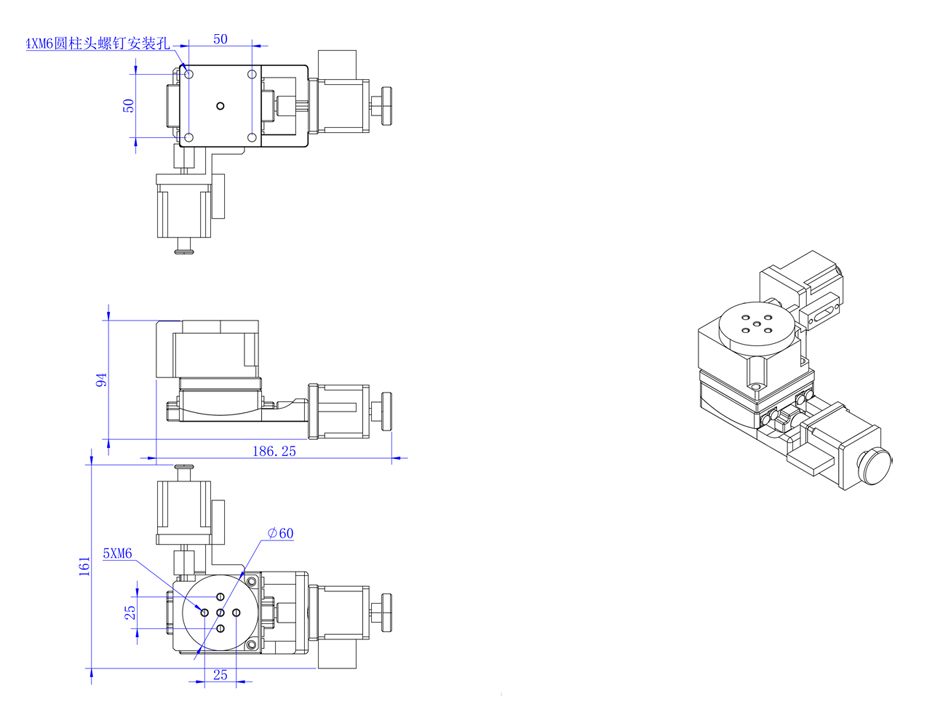

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
