Product Specifications:
| Model number | PT-N50Lifting platform |
| Distance (mm) | 50 |
| Table surface size | 125×125mm |
| Itinerary | 50mm |
| Repeatability positioning accuracy (μm) | ±40 |
| Straightness (μm) | 15 |
| Positioning accuracy (μm) | —— |
| Resolution (um) | 0.992(8Segmentation） |
| Minimum step distance (μm) | 5 |
| Maximum speed (s) | ≤3mm/s |
| Maximum load (kg) | 50 |
| Control method | Open loop |
| Self-weight (Kg) | 3 |
| Rated current (A) | 1.3 |
| Model number | PT-GD140G(50XY)Pan-tilt unit |
| Itinerary | 50mm |
| Table surface size | 120*120mm |
| Screw specification | Precision ball screw (lead 4mm) |
| Guide rail | Precision linear slide rail |
| Stepper motor (step angle) | 42（1.8°） |
| Main material | Aluminum alloy |
| Surface treatment | Anodizing to blackening |
| Center load of the countertop | 30kg |
| Platform self-weight | 2.8kg |
| Subdivision resolution | 2.5um |
| Speed | 20mm/sec |
| Repeatability of positioning accuracy | 5um |
| Positioning accuracy (optional with grating) | 8um |
| Straightness | 5um |
| Motion parallelism | 10um |
| Pitching | 25" |
| Yawing | 20" |
| Return gap | 2um |
| Step loss motion | 3um |
| Attachment description | Optional addition of power failure braking function (Z) |
| Optional: Installation of grating scale (G) is available. | |
| Replaceable servo motor (D) | |
| An optional dust cover (F) can be installed. |

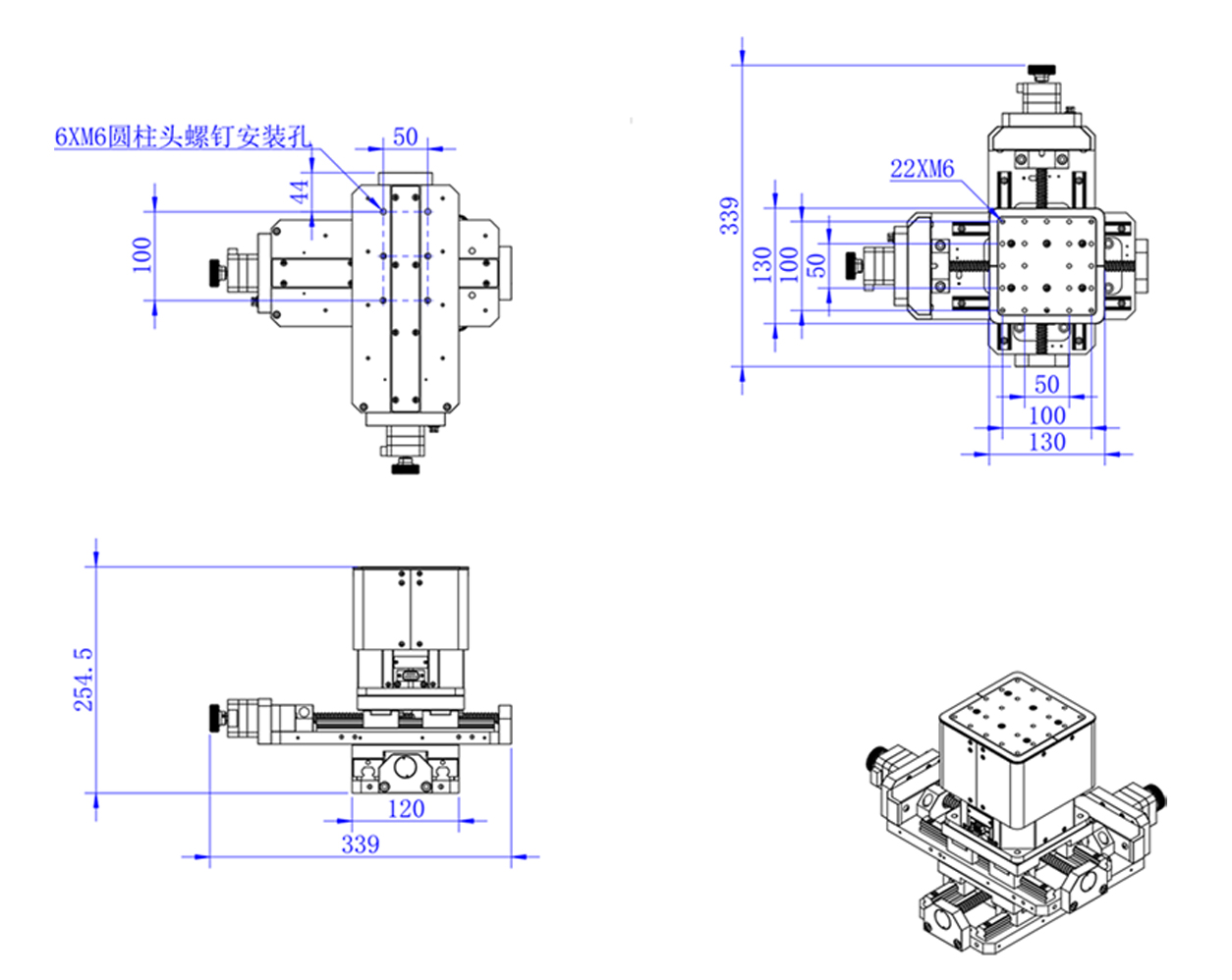

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
