Product parameters：

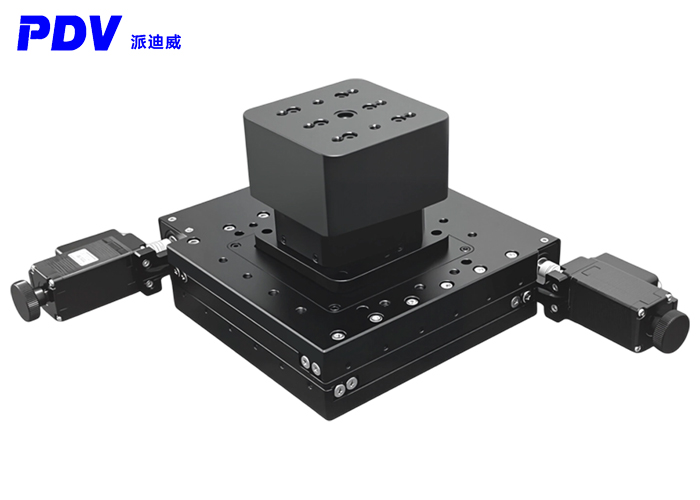

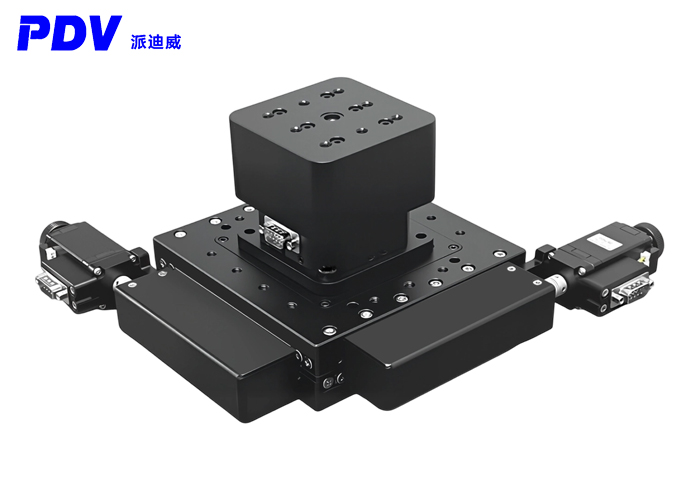

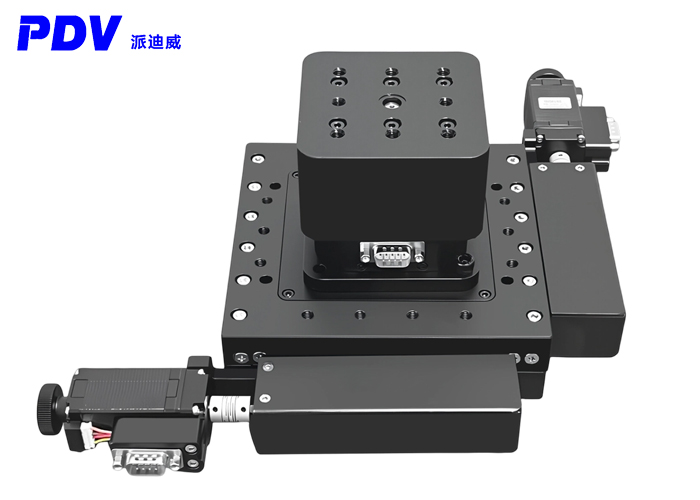

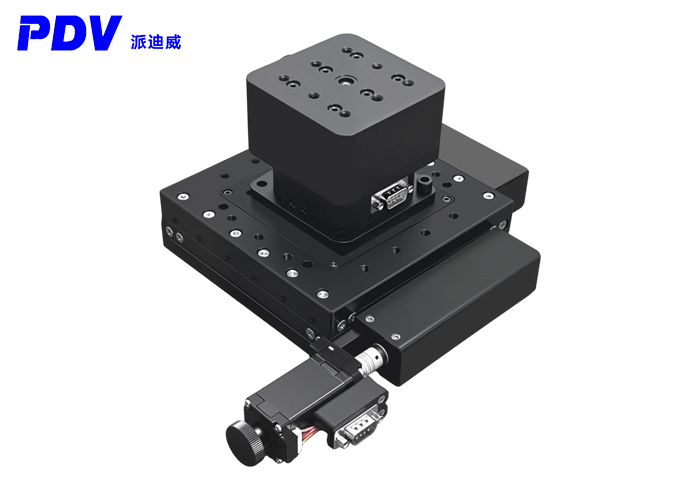

| Product model | PT-SN5020 | |
| XY translation parameters | ||

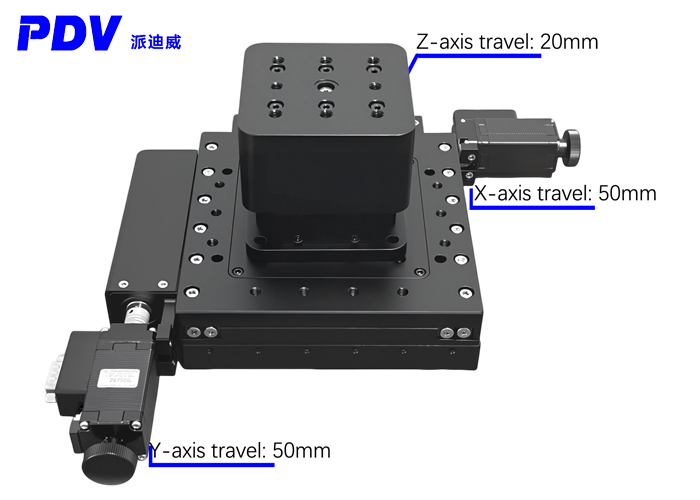

| Structural Description | X and Y axis travel | 50mm |
| Work surface size | 155×155mm | |
| Screw specification | High-grade screw pair | |
| Guide rail | Precision-level cross-roller guide rail | |
| Stepper motor (step angle) | Japanese Shinano 28 (1.8° motor) | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to blackening | |
| Surface load (kg) | 10 | |
| Weight (kg) | 3.2 | |
| Precision description | Resolution | 5μm(No segmentation)， 0.625μm(8 segmentation） |
| Speed | 6mm/sec | |
| Repeatability of positioning accuracy | 8μm | |
| Positioning accuracy (optional grating) | 10μm | |
| Straightness | 5μm | |
| Motion parallelism | 15μm | |
| Pitch | 50" | |
| Bump | 25” | |
| Reversal clearance | 2μm | |
| Step loss | 2μm | |
| Optional installation of grating scale (G) | ||
| Replaceable servo motor (D) | ||
| Z-axis elevation parameters | ||
| Structural Description | Itinerary | 20mm |
| Table size | 86×86mm | |
| Screw rod | Direct drive motor lead screw | |
| Pitch | 0.794MM | |
| Rail form | Cross roller guide rail | |
| Main materials | Aluminum alloy | |
| Surface treatment | Black oxidation | |
| Self-respect | 1.5kg | |
| Precision description | Resolution | 7.938μm (No segmentation) |
| 0.397μm (20 segmentation) | ||
| Speed | ≤5mm/sec | |
| Precision | 1.5μm | |
| Load-bearing capacity | 10kg | |
| Idle travel | 5μm | |
| Parallelism | 50μm | |
| Motion parallelism | 15μm | |
| Pitch | 25" | |
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
