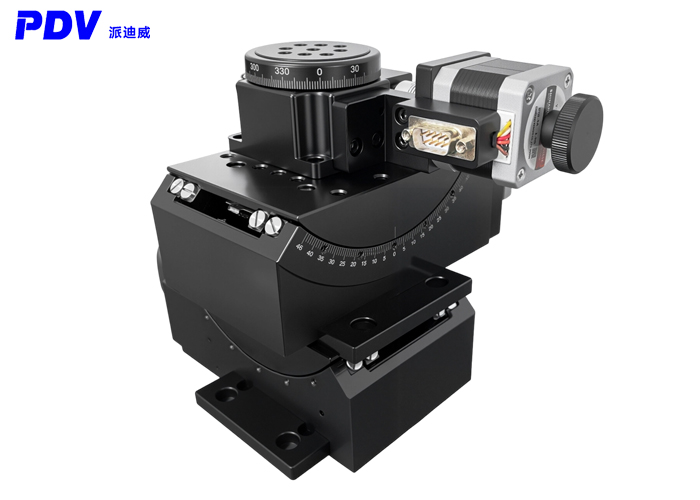

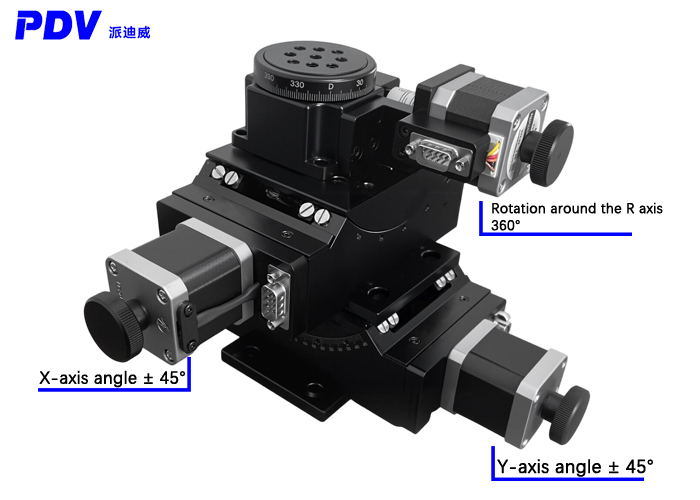

Product Specifications:

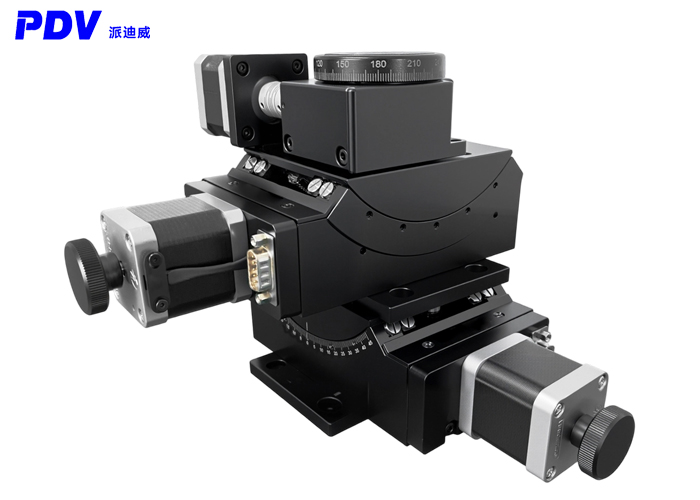

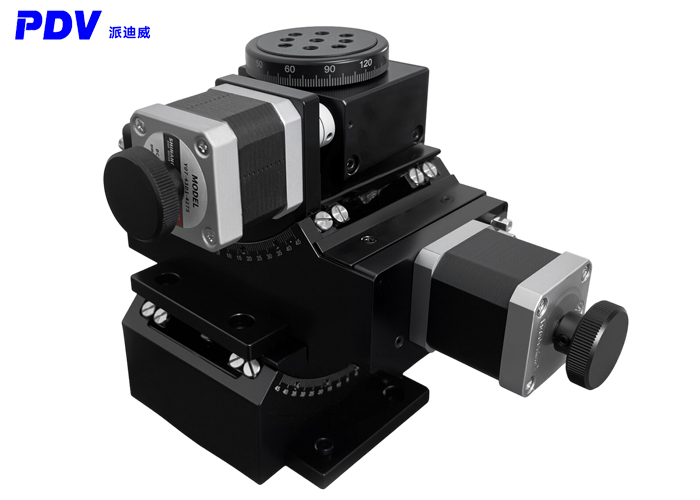

| Model number | PT-GD303Angular position sensor |
| Angle range | ±45° |
| Table size | 90×104mm |
| Transmission ratio | 280:1 |
| Rotation center height | 96+-0.2mm |
| Drive mechanism | Worm gear and worm mechanism |
| Guide rail type | Cross roller guide rail |
| Stepper motor (1.8°) | 42BYG |
| Main material | Aluminum alloy |
| Surface treatment | Anodizing to achieve blackening effect |
| Centering | 10kg |
| Self-measurement | 2.45kg |
| Resolution | ≈0.005° ≈18”(No segmentation) ≈1"(20 segmentation) |
| Rotation center accuracy | 0.03 mm |
| Speed | 7°/sec |
| Repeatability positioning accuracy | 士3” |
| Positioning accuracy (optional with grating) | 土8” |
| Jogging | 土3” |
| Step loss | 3” |
| Model number | PX110-60Rotating table | |
| Structural Description | Angle range | 360° |
| Table size | φ60mm | |
| Transmission ratio | 45:1Or90:1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Guide rail type | Bearings | |
| Stepper motor (1.8°) | 42BYG | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Centering and grounding | 30kg | |
| Weight | 1.2kg | |
| Precision description | Resolution | 0.02°（No segmentation） 0.001°=3.6”(20 segmentation) |
| Speed | 50° /sec | |
| Repeatability positioning accuracy | 0.005°=18” | |
| Positioning accuracy (optional with grating) | 0.01° =36″ | |
| End jump accuracy | 15μ | |
| Idle return | 0.005°=18” | |
| Bias | 5μ | |
| Step out | 0.005° =18” | |
| Parallelism | 80μ | |

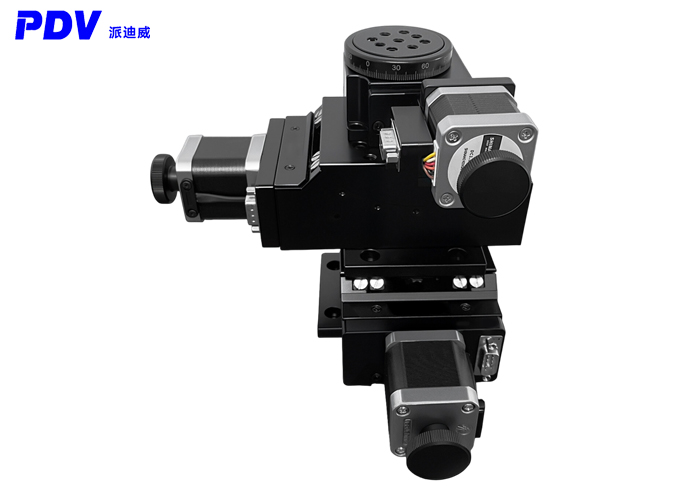

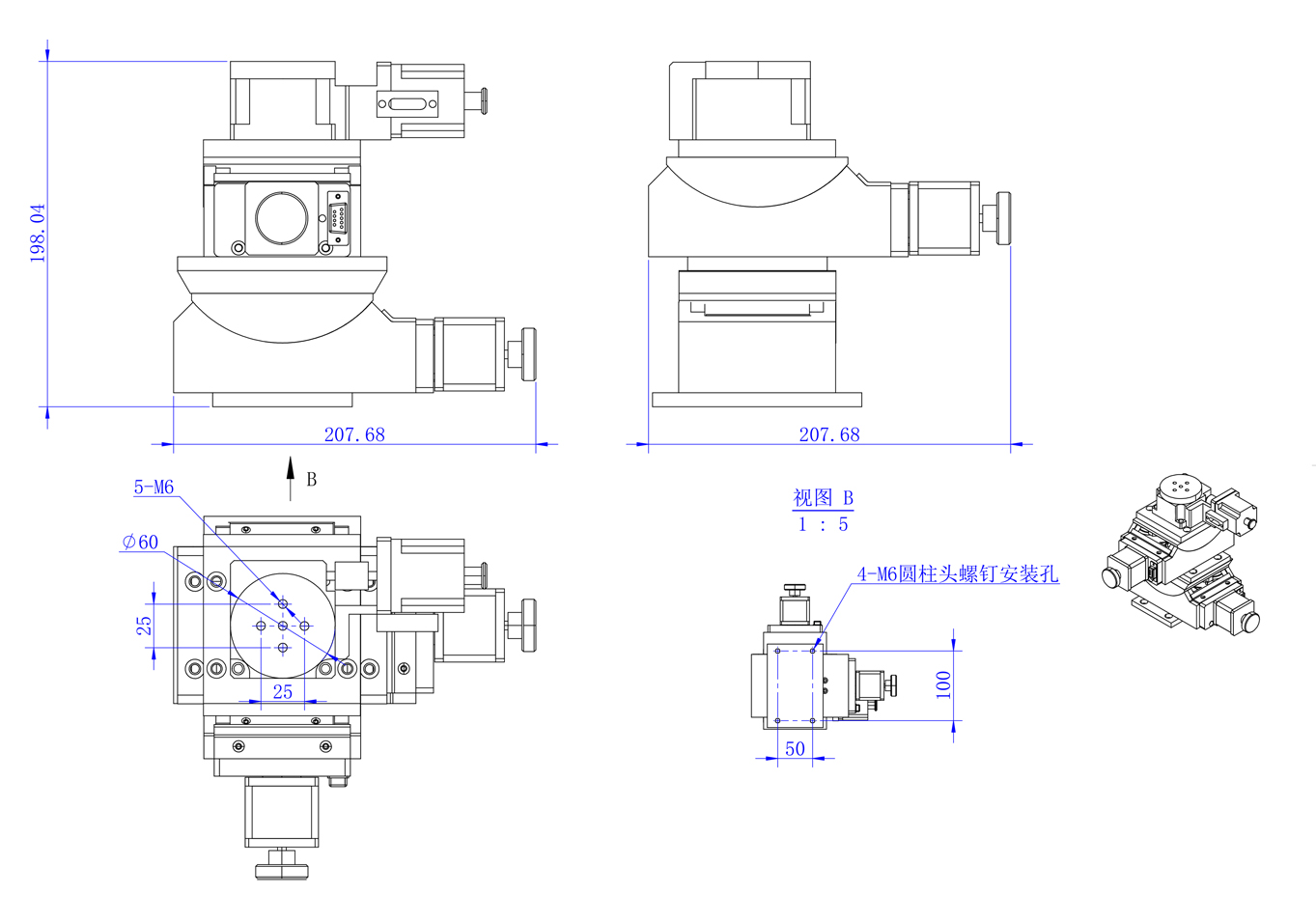

Product size:
