Product Specifications:
| Model number | PT-GD425(Lifting platform) |
| Work surface size (mm) | 200×200 |
| Travel distance (mm) | 25 |
| Resolution (8 subdivisions) | 0.0005 |
| Repeatability positioning accuracy (mm) | 0.003 |
| Screw pitch (mm) | 1 |
| Standard motor | 57Stepper motor(1.8°) |
| Static torque (N.M) | 1.2 |
| Rated working current | 2.8 |
| Speed (2 subdivisions) | 10mm/s |
| Center load (kg) | 50 |
| Self-weight (kg) | 7.5 |
| Model number | PT-GD150(100)(Pan-tilt unit) | |
| Structural Description | Itinerary | 100mm |
| Table surface size | 150×150mm | |
| Screw specification | High-precision ball screw (lead 5mm) | |
| Guide rail | High-precision linear slide rail | |
| Stepper motor (1.8°) | STP-57D3016 | |
| Main material | Aluminum alloy / Stainless steel | |
| Surface treatment | Anodized blackening | |
| Weight (kg) | 3.4kg | |
| Precision description | Resolution | 20 μ (no subdivision) 1 μ (20 subdivisions) |
| Speed | 40mm/sec | |
| Repeatability positioning accuracy (μm) | 1μm | |
| Positioning accuracy (optional grating) | 3μm | |
| Straightness | 3μm | |
| Motion parallelism Pitch and roll | 10μm | |
| Pitch and roll | 25" | |
| Divergence | 20" | |
| Return gap | 2μm | |
| Step loss movement | 1μm | |
| Attachment description | Optional features include: - Battery failure braking function (Z) | |
| Photogate encoder (G) | ||
| Servo motor replacement (D) | ||
| Dust-proof cover (F) | ||

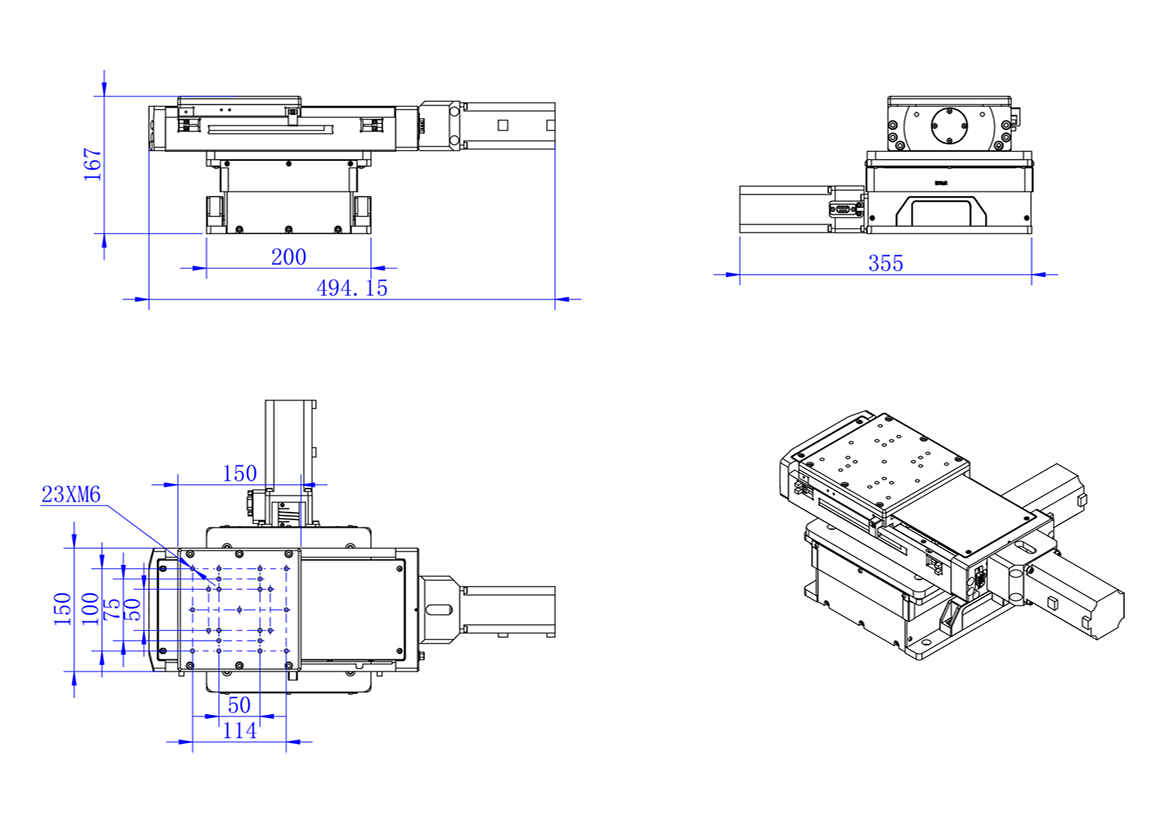

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
