Product Specifications:
| Product model | PT-SN1050 | ||

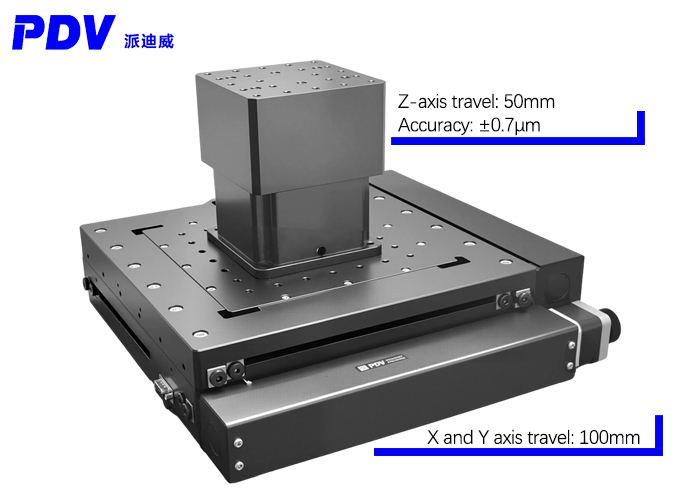

| X and Y axis travel | 100mm | Z-axis travel (mm) | 50mm |
| Table size | 300×300mm | Screw pitch (mm) | 0.794 |
| Screw pitch | 4mm | Repeatability positioning accuracy (μm) | ±0.25 |
| Guide rail | Precision cross roller guide rail | Straightness (μm) | 15 |
| Stepper motor (step angle) | 42(1.8°) | Positioning accuracy (μm) | ±0.75 |
| Main material | Aluminum alloy | Resolution (μm) | 0.05(Grating ruler) |
| Surface treatment | Anodizing to blackening | Minimum step size (μm) | 0.2 |
| Center of the tabletop bears weight | 50kg | Maximum speed (s) | —— |
| Platform measures itself | 8.3kg | Maximum load (kg) | 50 |
| Resolution | 20μm(No subcategories) 2.5μm(8 subcategories) | Control method | Closed loop |
| Speed | 40mm/sec | Self-weight (Kg) | 3 |
| Repeatability positioning accuracy | 2μm | Rated current (A) | 1.3 |
| Positioning accuracy (with optional grating) | 3μm | —— | |
| Straightness | 5μm | —— | |
| Motion parallelism | 15μm | —— | |
| Pitch and roll | 50" | —— | |
| Deviation | 25" | —— | |
| Return gap | 2μm | —— | |
| Step loss | 2μm | —— | |
| Optional: Installation of grating scale (G) | —— | ||
| Replaceable servo motor (D) | —— | ||

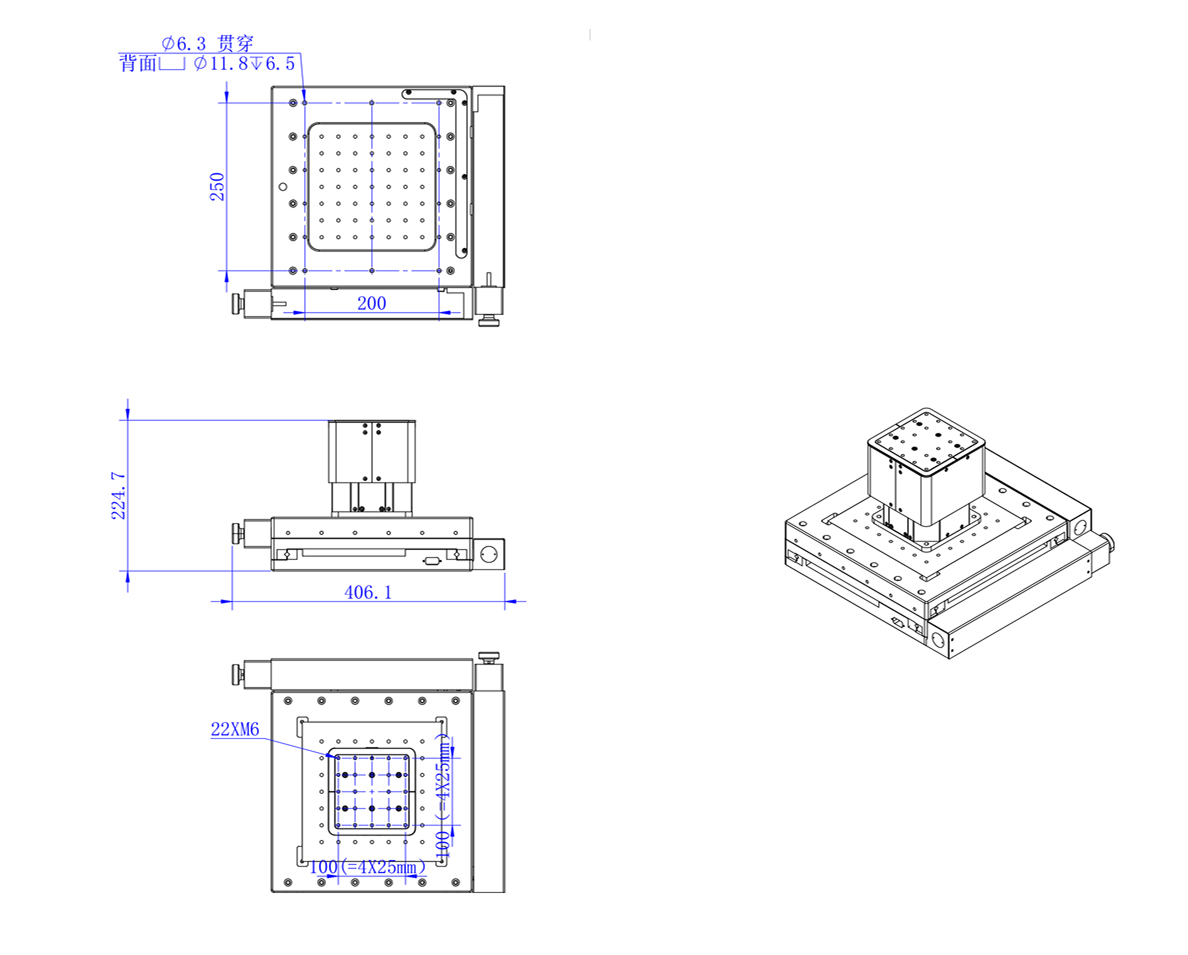

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
