Product parameters：
| Model | PT-GD395Corner table | |
| Countertop size (mm） | 100×100mm | |
| From the countertop to the center of the pendulum | 95 | |
| Adjustment range | ±15° | |
| Reading (°) | 1° | |
| Distribution rate (°) | 0.005° | |
| Load-bearing capacity (kg) | 20kg | |
| Guide rail structure | Crossed ball arc rail | |
| Self-weight (kg) | 1.5 | |
| Stepper motor | 35Stepper motor | |
| Step Angle | 1.8° | |
| Phase current | 0.8A | |

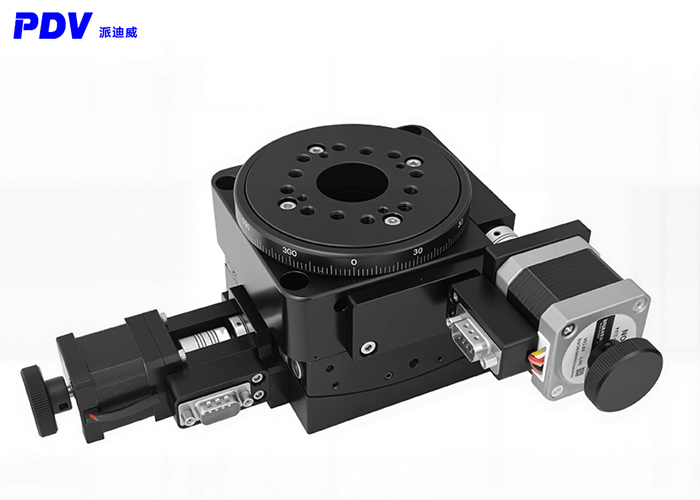

| Model | PX110-100(Rotating table） | |
| Structural description | Angle range | 360° |
| Countertop size | φ100mm | |
| Transmission ratio | 180∶1 90:1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Guide rail form | Bearing | |
| Stepper motor (1.8°) | 42BYG | |
| Main materials | Aluminum alloy | |
| Surface treatment | Anodizing turns black | |
| Central bearing | 45kg | |
| Weight | 1.7kg | |
| Precision description | Resolution | 0.01°（No subdivision）0.0005°=1.8″（20 subdivision） |
| Speed | 25°/sec | |
| Repeat positioning accuracy | 0.005°=18″ | |
| Positioning accuracy (Optional grating) | 0.01°=36″ | |
| End jump accuracy | 15μ | |
| Empty return | 0.005°=18″ | |
| Eccentricity | 5μ | |
| Lost step | 0.005°=18″ | |
| Parallelism | 80μ | |

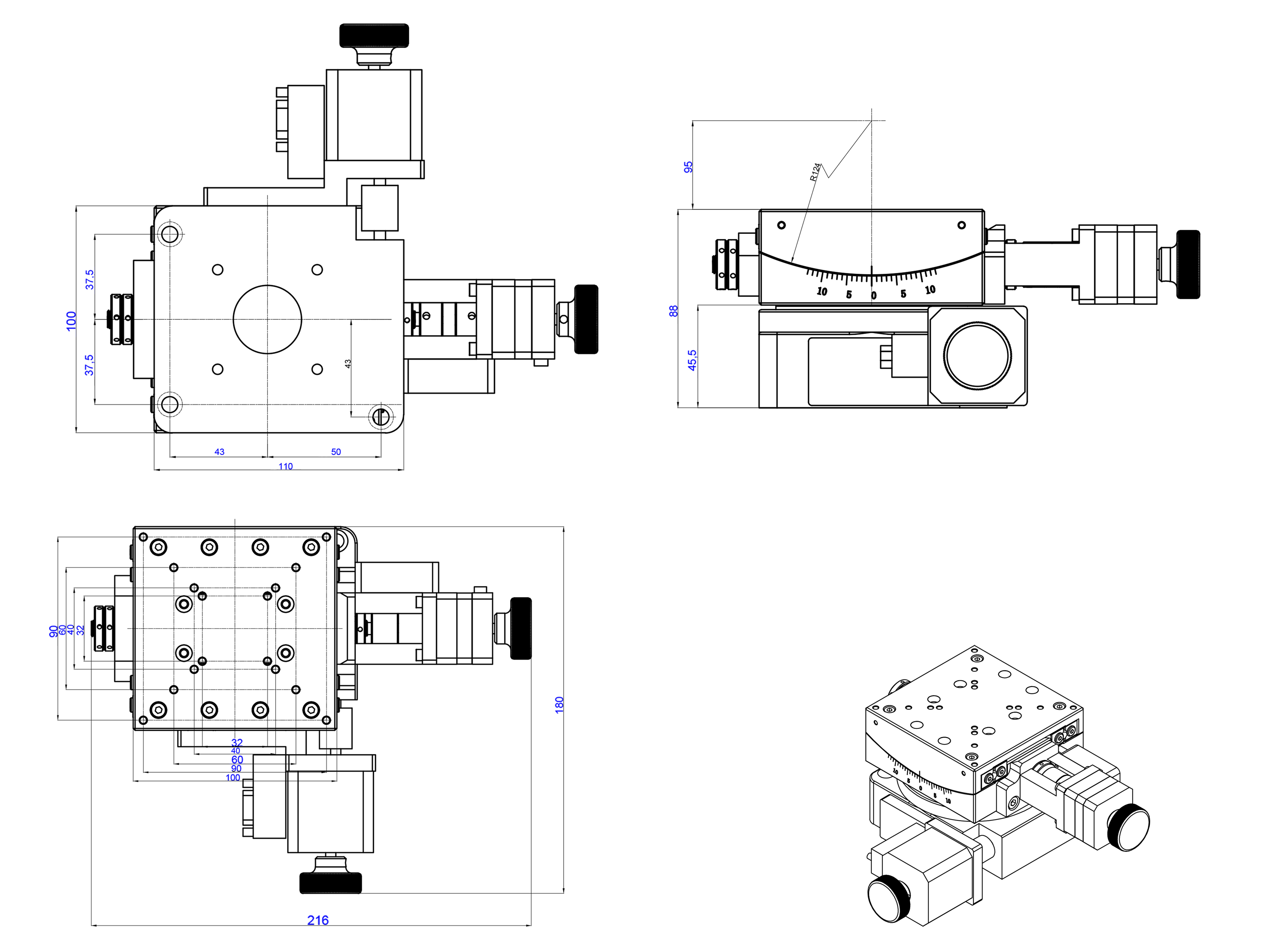

Product size：
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
