Product parameters:
| Model | PT-GD1450XYZ | PT-GD14150XYZ | ||
| Z-axis parameters | X Y-axis parameters | X Y-axis parameters | ||
| Structural description | Itinerary | The lifting stroke of the Z-axis is 50mm | The displacement travel of the X and Y axes is 50mm | The displacement travel of the X and Y axes is 150mm |
| Countertop size | 120×120mm | 155×155mm | 350×350mm | |
| Screw specification | Precision ball screw (lead 4mm) | High-research lead screw pairs | Precision ball screw (lead 4mm) | |
| Guide rail | Precision linear slider guide rail | Precision grade crossed roller guide rails | Crossed roller guide rail | |
| Stepper motor (step Angle) | 42（1.8°） | Shinano 28 (1.8°) | 42BYGH47-1684 | |
| Main material | Aluminum alloy | Aluminum alloy | Aluminum alloy | |
| Surface treatment | Anodic oxidation turns black | Anodic oxidation turns black | Anodic oxidation blackening | |
| Countertop center load | 30kg | 10kg | 50kg | |
| Self-weight of the platform | 2.8kg | 3.2kg | 9.7kg | |
| Accuracy description | 8 subdivision resolutions | 2.5μm | 5μm(No segmentation），0.625μm（8 segmentation） | 20μ(No segmentation），1μ（20 segmentation） |
| Speed | 20mm/sec | 6mm/sec | 30mm/sec | |
| Repeat positioning accuracy | 5μm | 8μm | 3μm | |
| Positioning accuracy (optional grating) | 8μm | 10μm | / | |
| Straightness | 5μm | 5μm | 8μm | |
| Motion parallelism | 10μm | 15μm | 20μm | |
| Pitch and pitch | 25" | 50" | 80" | |
| Offset pendulum | 20" | 25" | 30" | |
| Return gap | 2μm | 2μm | 5μm | |
| Step loss movement | 3μm | 2μm | 2μm | |
| Attachment description | Power-off braking function can be added（Z) | —— | —— | |
| A grating ruler can be installed（G) | A grating ruler can be installed（G) | —— | ||
| The servo motor can be reinstalled(D) | The servo motor can be reinstalled(D) | —— | ||
| A dust cover can be added(F) | —— | —— | ||

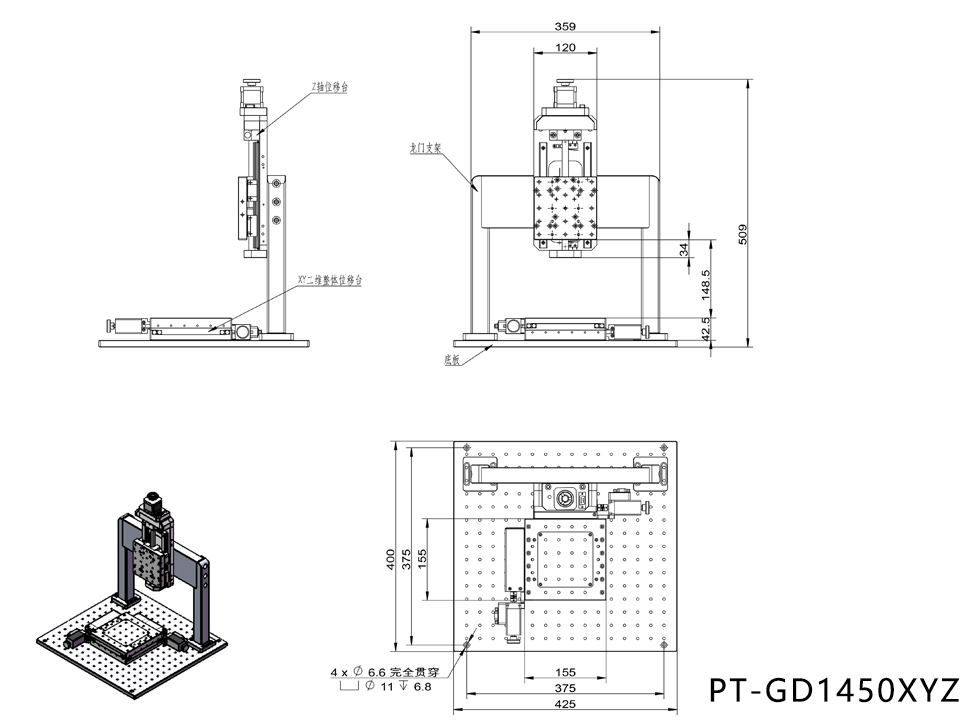

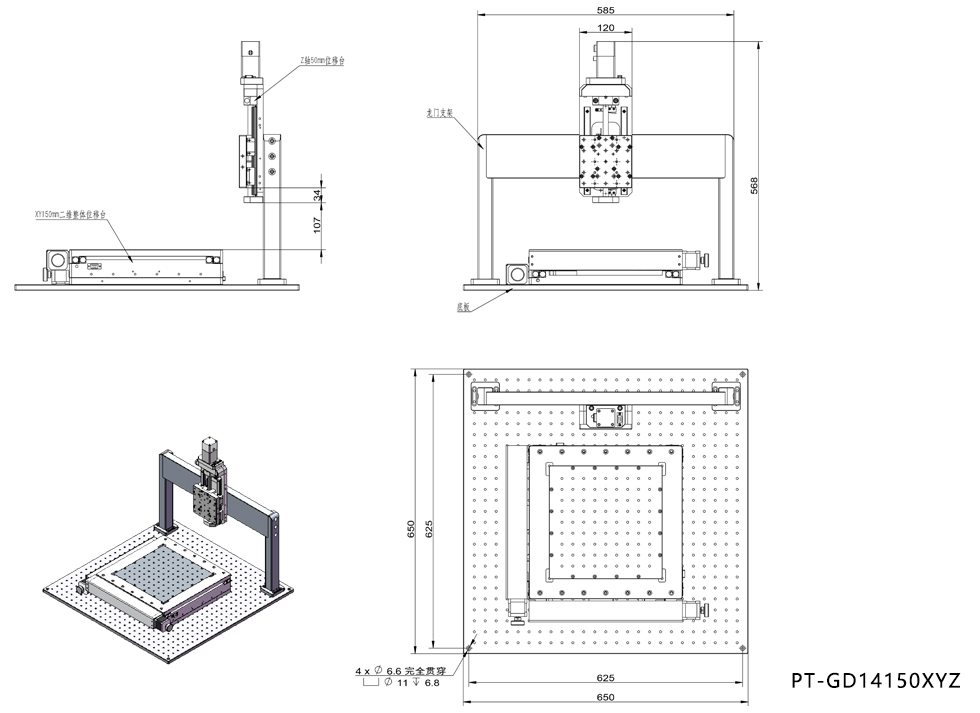

Product size:
