The parameters are electrical performance parameters.

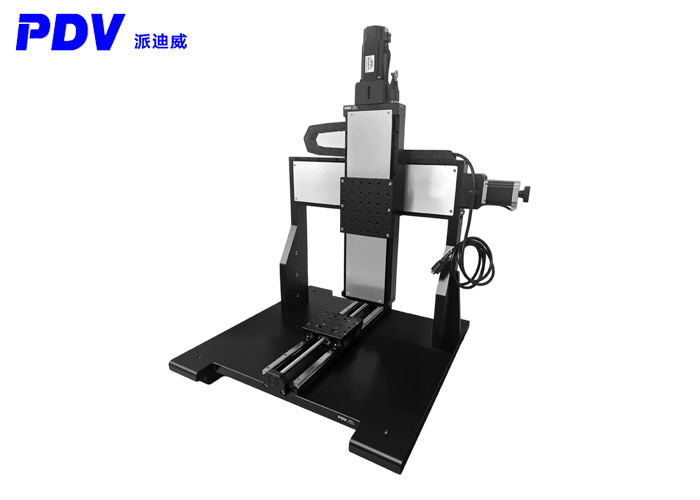

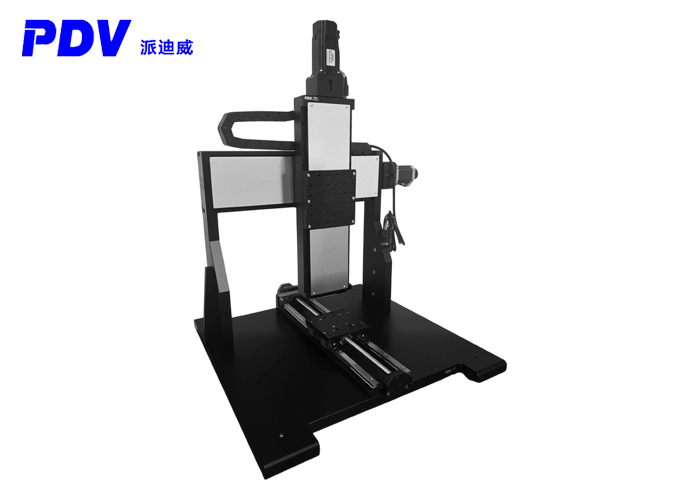

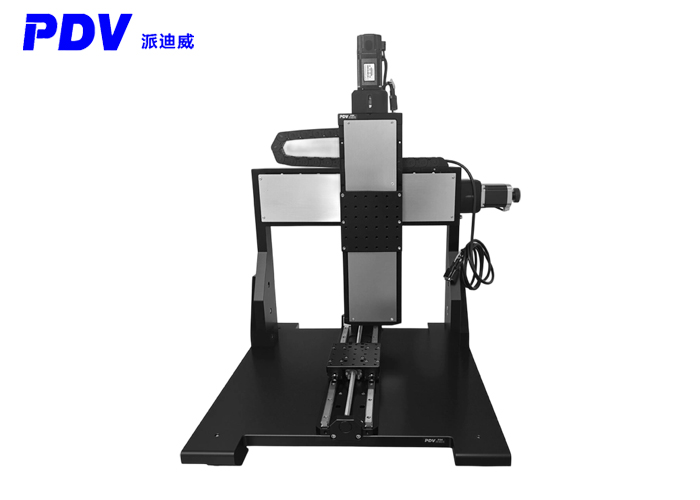

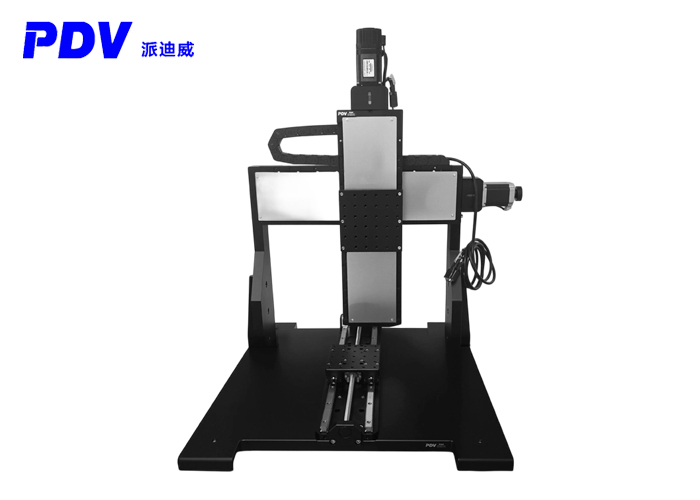

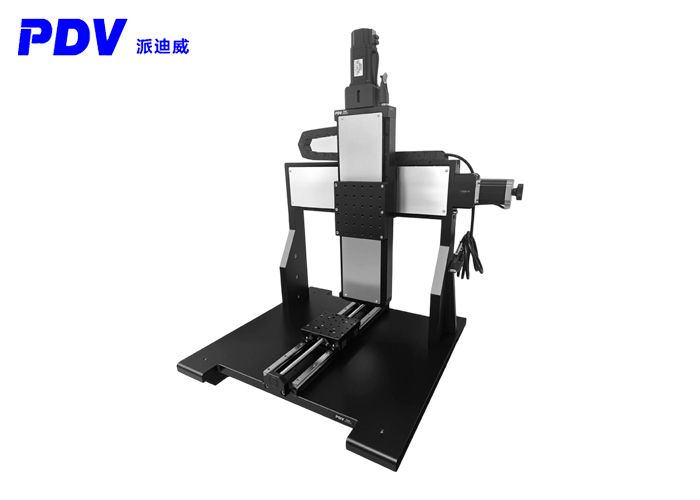

The three-axis displacement stroke of the gantry can be arbitrarily selected according to the use needs, or it can be modified with different displacement tables.
Product Specifications:
| Product model | PT-UX150(50) | PT-UX150(100) | PT-UX150(150) | PT-UX150(200) | PT-UX150(300) | |
| Structural Description | Itinerary | 50MM | 100MM | 150MM | 200MM | 300MM |
| Table surface size | 150×150mm | 150×150mm | 150×150mm | 150×150mm | 150×150mm | |
| Screw specification | High-precision ball screw (lead 5mm) | |||||
| Guide rail | High-precision linear slide rail | |||||
| Stepper motor (1.8°) | STP-57D3016 | |||||
| Main material | Aluminum alloy / Stainless steel | |||||
| Surface treatment | Anodized blackening | |||||
| Surface load-bearing capacity | 20kg | 30kg | ||||
| Weight | 2.8kg | 3.4kg | 4.5kg | 5.2kg | 6.3kg | |
| Precision description | Resolution | 20μ(No segmentation) | ||||
| 1μ(20 segmentation) | ||||||
| Speed | 40mm/sec | |||||
| Repeatability positioning accuracy | 1μ | |||||
| Positioning accuracy (with optional grating) | 3μ | |||||
| Straightness | 3μ | 4μ | ||||
| Motion parallelism | 10μ | 15μ | ||||
| Pitch | 25" | 50" | ||||
| Bend | 20" | 25" | ||||
| Reversal clearance | 2μ | |||||
| Lost-step motion | 1μ | 2μ | ||||
| Attachment description | Optional addition of power failure braking function (Z) | |||||
| Optional light shed frame (G) can be installed | ||||||
| Replaceable servo motor (D) | ||||||
| An optional dust cover (F) can be installed. | ||||||

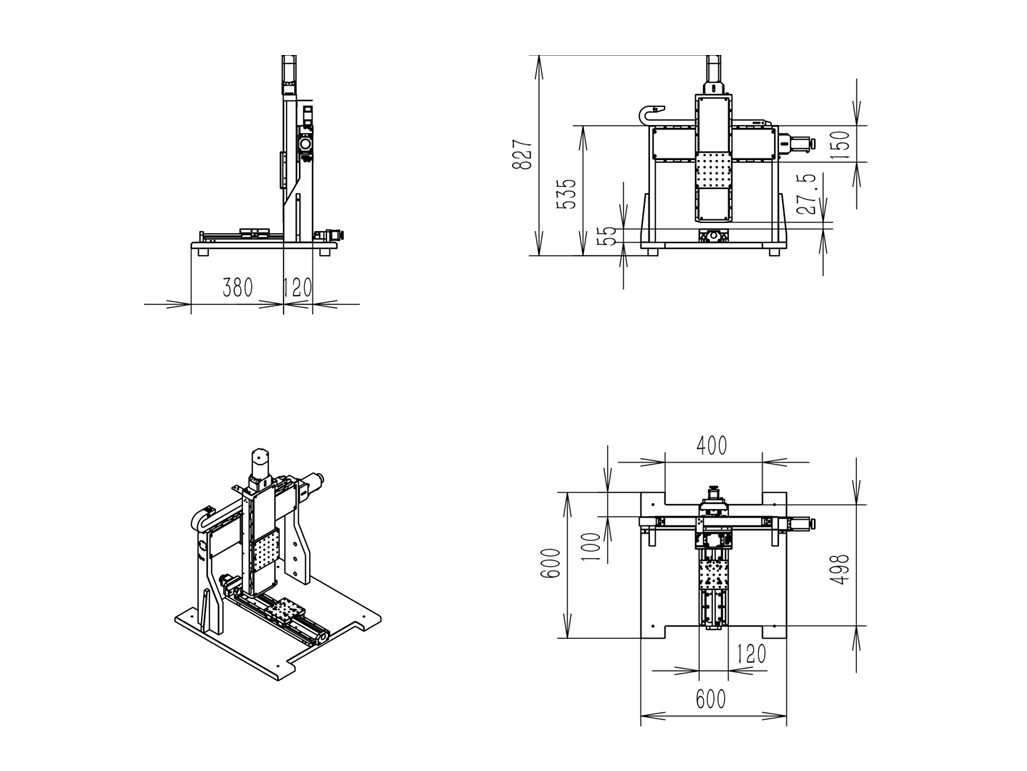

Product size:
